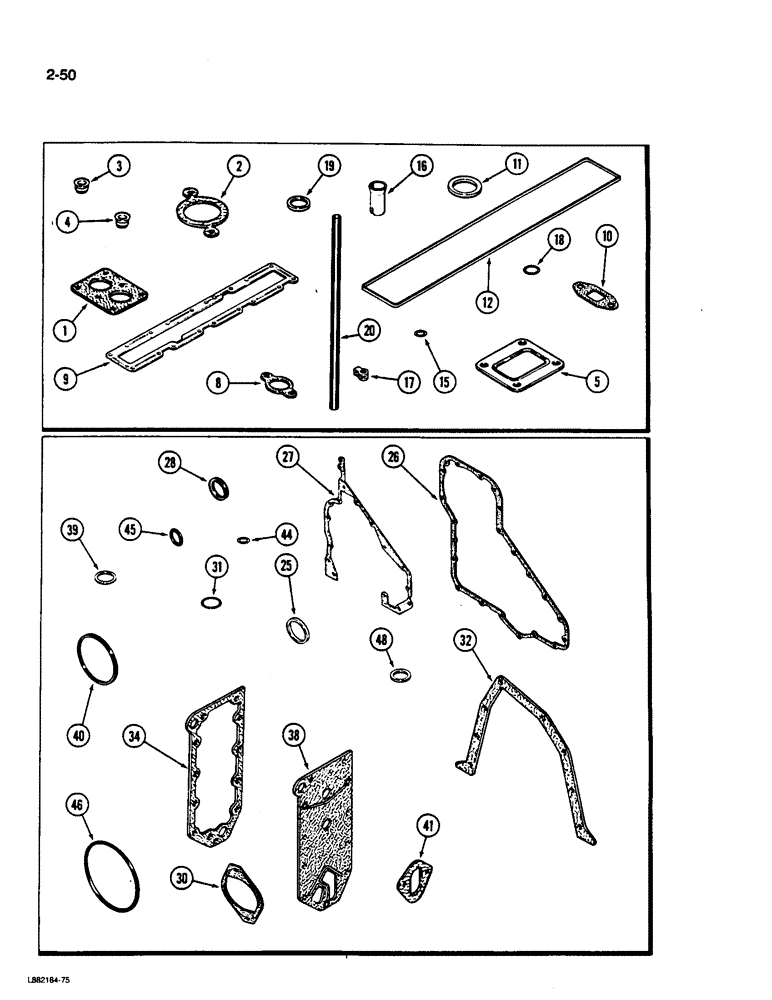

Запчасти Case W36 (2-50) - ENGINE GASKET KITS, 6TA-830 ENGINE, VALVE GRIND (02) - ENGINE

A77630

GASKET KIT

- valve grind, Includes: Ref. 1 - 19

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-31.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing (Replaces J910505)

1шт.

2

J914309

GASKET

- outlet, water connection (Replaces J909919)

1шт.

3

J912550

SEAL

- stem, intake valve

6шт.

4

J912549

SEAL

- stem, exhaust valve

6шт.

5

J911941

GASKET

- turbocharger mounting (Replaces J907973)

1шт.

8

J911942

GASKET

- manifold, exhaust

6шт.

9

J914311

MANIFOLD GASKET

- cover, intake manifold (Replaces J910779)

1шт.

10

J914388

GASKET

- drain tube, turbocharger (Replaces J901805)

1шт.

11

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - seal, oil fill cap

1шт.

12

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover, rocker

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

16

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector

6шт.

17

J903380

SEAL

- connector, banjo

6шт.

18

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- breather tube

1шт.

19

J906659

SEAL

- injection nozzle

6шт.

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- thermostat housing filter shutoff

1шт.

20

J907739

HOSE ASSY.

HOSE - breather

1шт.

A77631

SEAL PACKAGE

GASKET KIT - cylinder block, Includes: Ref. 25 - 48

1шт.

For complete engine overhaul, order valve grind kit, cylinder block kit, oil pan kit Figure 2-49, front and rear crankshaft seal kit Figure 2-43 and required cylinder head gasket Figure 2-31.

1шт.

25

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, front, cylinder block

1шт.

26

J913431

GASKET

- cover, front, cylinder block

1шт.

27

J914303

SEAL

GASKET - housing, gear (Replaces J907623), cylinder block

1шт.

28

J914092

O-RING

- pin housing (Replaces J906693), cylinder block

1шт.

30

J913288

SEAL

GASKET - cover, access (Replaces J910055), cylinder block

1шт.

31

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - mounting, water pump, cylinder block

1шт.

32

J914301

GASKET

- rear retainer (Replaces J901734), cylinder block

1шт.

34

J914307

GASKET

- cooler core (Replaces J908332), cylinder block

1шт.

38

J914308

GASKET

- filter head (Replaces J908333), cylinder block

1шт.

39

J901798

SEALING WASHER

WASHER - sealing, regulator plug, cylinder block

1шт.

40

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block (Replaces A157927), cylinder block

1шт.

41

J914304

GASKET

- mounting, pump (Replaces J904044), cylinder block

1шт.

44

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt (Replaces J901837), cylinder block

6шт.

45

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- plug, flywheel housing, cylinder block

1шт.

46

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, cylinder, block

6шт.

48

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - seal, oil filter cap, cylinder block

1шт.
