Запчасти Case W36 (2-48) - OIL PUMP AND OIL PAN, 6TA-830 ENGINE (02) - ENGINE

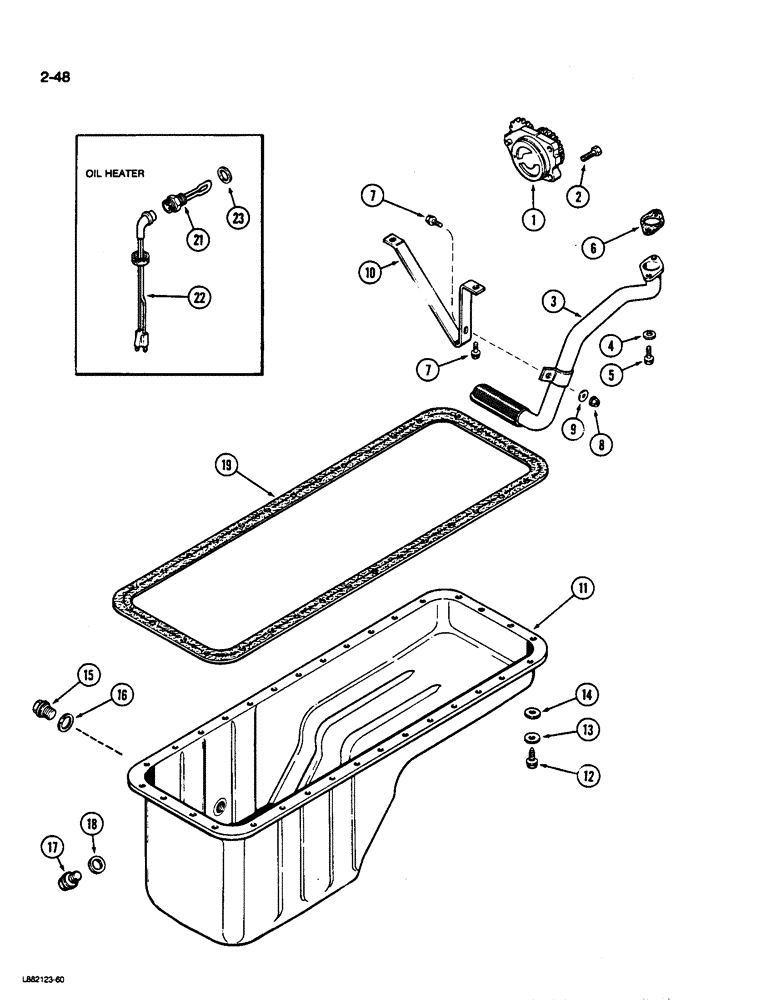

Схема запчастей Case W36 - (2-48) - OIL PUMP AND OIL PAN, 6TA-830 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

JR910066

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY - oil, remanufactured (North America Only)

1шт.

JC910066

PUMP

RETURN NUMBER - Use this part number to return pump core for credit

1шт.

1

J914007

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, new (Replaces J910066)

1шт.

JR930338

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926201

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M8 x 30, 8.8, Full Thd

4шт.

3

J910787

TUBE

TUBE AND SCREEN - suction, oil

1шт.

4

J908738

SPACER

SPACER - mounting

2шт.

5

J900628

BOLT,Hex Flg, M6 x 30, 8.8

SCREW - hex flange, M6 x 30 mm

2шт.

6

J914302

GASKET

GASKET - mounting, oil tube (Replaces J906202)

1шт.

Part of Oil Pan Gasket Kit, P/N A77583

1шт.

7

J913638

FLANGE BOLT,Hex, M6 x 15mm, Cl 8.8, Full Thd

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

3шт.

8

J906216

FLANGE NUT

NUT - hex flange, M6

1шт.

9

J910960

WASHER

WASHER - flat retaining

1шт.

10

J913427

BRACE

BRACE - tube, suction

1шт.

11

J914013

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine (Replaces J910874)

1шт.

12

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT, , Mounting Hex, Flg Hd, M8 x 25, Spcl

32шт.

13

J910266

LOCK WASHER

WASHER - spring, Belleville

32шт.

14

J908316

WASHER

WASHER - flat, M9 x 16 x 1

32шт.

15

J904386

PLUG

PLUG - heater hole, oil

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing

1шт.

17

J900215

PLUG

PLUG - drain, pan (Alternate with J911638)

1шт.

17

J911638

PLUG,M18 x 1.5

PLUG - drain, pan, magnetic (Alternate with J900215)

1шт.

18

J900216

PACKING RING

WASHER - sealing

1шт.

Part of Oil Pan Gasket Kit, P/N A77583

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - pan, oil

1шт.

Part of Oil Pan Gasket Kit, P/N A77583

1шт.

A77583

GASKET

GASKET KIT - oil pan, Includes: Ref. 6, 18 and 19, also order J902425 washer

1шт.

20

A77580

SERVICE KIT

HEATER KIT - oil pan, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77580), oil

1шт.

22

J905113

CABLE

CABLE - heater, oil

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, oil heater

1шт.

Выбрано товаров: 32
