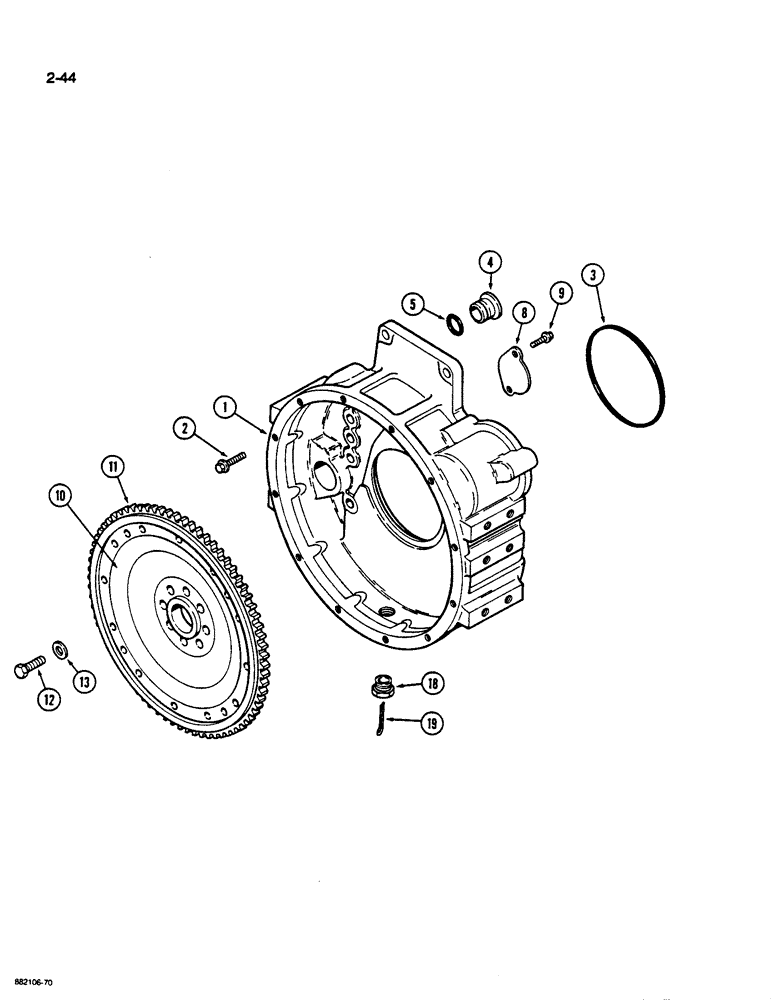

Запчасти Case W36 (2-44) - FLYWHEEL AND HOUSING, 6TA-830 ENGINE (02) - ENGINE

1

J908799

HOUSING

- flywheel

1шт.

2

J910540

FLANGE BOLT,Hex, M12 x 40mm, Cl 10.9

BOLT - hex flange, M12 x 40 mm

12шт.

3

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

- housing

1шт.

4

J910248

PLUG

- hole, barring

1шт.

5

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- sealing

1шт.

8

J908095

PLATE

- cover

1шт.

9

J902735

BOLT,M8 - 1.25 x 21 mm

SCREW - self-tapping

2шт.

10

J911220

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 11

1шт.

11

J905427

GEAR

- ring, flywheel

1шт.

12

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex cup, M12 x 32 mm

8шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, mounting

8шт.

18

L113178

PLUG

BUSHING - reducer

1шт.

19

132-118

COTTER PIN,7/32" x 1"

PIN, SPLIT (COTTER), 7/32" x 1"

1шт.
