Запчасти Case W36 (2-42) - CRANKSHAFT, 6TA-830 ENGINE (02) - ENGINE

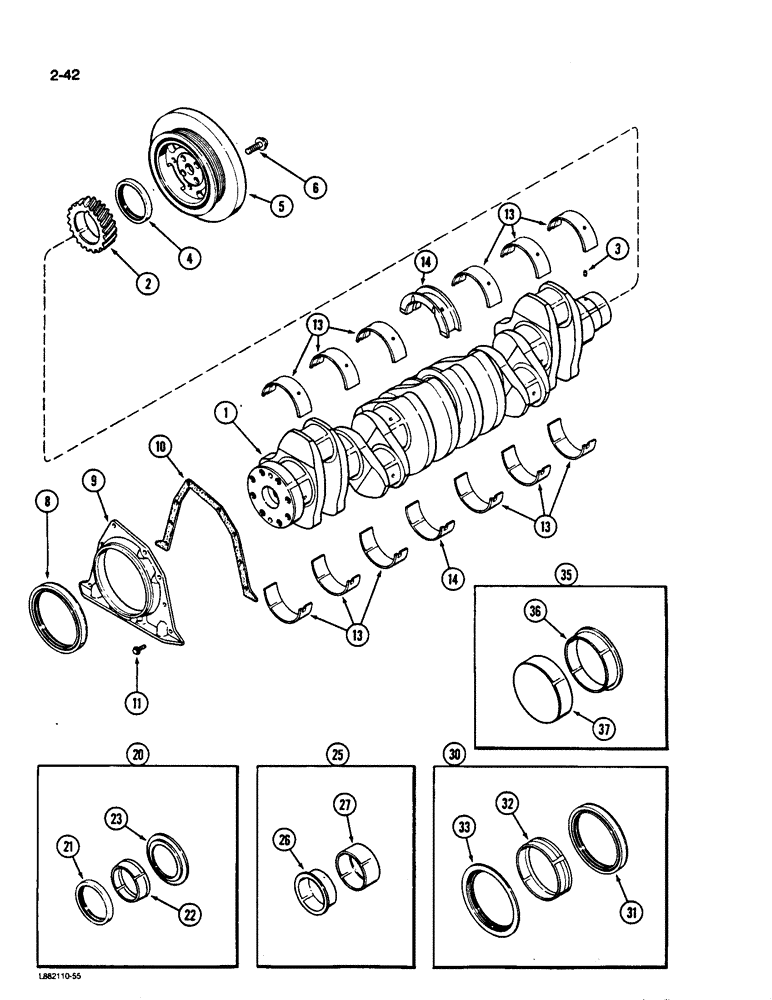

Схема запчастей Case W36 - (2-42) - CRANKSHAFT, 6TA-830 ENGINE (02) - ENGINE

Артикул

Название

Примечание

Количество

JR904363

CRANKSHAFT

ASSEMBLY - engine, remanufactured

1шт.

JC904363

CRANKSHAFT

RETURN NUMBER - crankshaft assembly (Use this part number to return crankshaft for credit)

1шт.

1

J904363

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2 and 3

1шт.

2

J907645

GEAR

- crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front (Order Ref. 20)

1шт.

5

J914451

PULLEY

- damper, vibration (Replaces J912682)

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

SCREW - hex flange, M14 x 35 mm

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (Order Ref. 30)

1шт.

9

J907535

COVER ASSY

RETAINER - seal, rear

1шт.

10

J914301

GASKET

- rear retainer (Replaces J901734)

1шт.

11

J913638

FLANGE BOLT,Hex, M6 x 15mm, Cl 8.8, Full Thd

BOLT, (Replaces J902261) Hex Flg, M6 x 15, 8.8, Full Thd

6шт.

13

A77569

BEARING SET

BEARING KIT - main, upper and lower, standard

6шт.

13

A77570

BEARING LINER

BEARING KIT - main, upper and lower, 0.25 mm oversize

6шт.

13

A77571

BEARING LINER

BEARING KIT - main, upper and lower, 0.5 mm oversize

6шт.

13

A77572

BEARING LINER

BEARING KIT - main, upper and lower, 0.75 mm oversize

6шт.

13

A77573

BEARING LINER

BEARING KIT - main, upper and lower, 1.0 mm oversize

6шт.

14

A77574

BEARING LINER

BEARING KIT - main, thrust, upper and lower, standard

1шт.

14

A77575

BEARING LINER

BEARING KIT - main, thrust, upper and lower, 0.25 mm oversize

1шт.

14

A77576

BEARING LINER

BEARING KIT - main, thrust, upper and lower, 0.5 mm oversize

1шт.

14

A77577

THRUST BEARING

BEARING KIT - main thrust, upper and lower, 0.75 mm oversize

1шт.

14

A77578

THRUST BEARING

BEARING KIT - main thrust, upper and lower, 1.0 mm oversize

1шт.

20

J908139

SEAL

KIT - oil, front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J908277

SLEEVE

WEAR SLEEVE KIT - crankshaft front, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J909410

GASKET KIT

SEAL KIT - oil, rear, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

Выбрано товаров: 36
