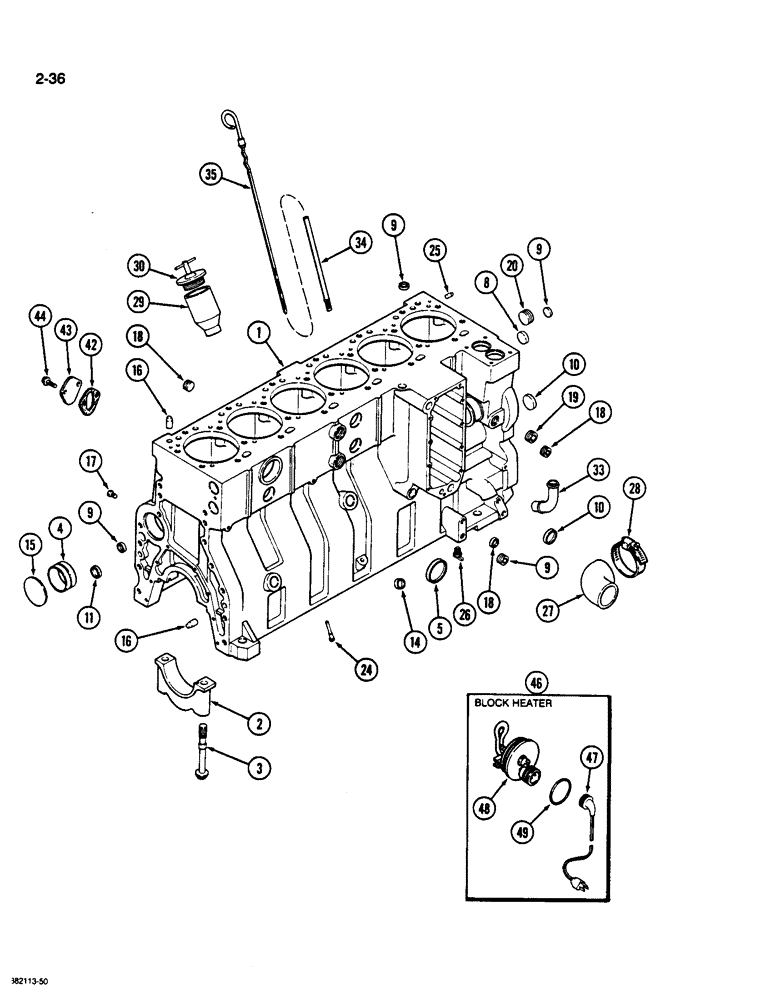

Запчасти Case W36 (2-36) - CYLINDER BLOCK, 6TA-830 ENGINE (02) - ENGINE

E156140

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complet (Order J913779, short block and J909415 kit)

1шт.

No complete engine is offered

1шт.

Short block does not include the camshaft or tappets

1шт.

47466039R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

47466039C

CORE-BASIC ENGINE

Return Part Number

1шт.

Short block does not include the camshaft or tappets

1шт.

JR913779

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly - short, remanufactured

1шт.

JC913779

SKELETON ENGINE

Return Part Number - engine short block (Use this part number to return block core for credit)

1шт.

J913779

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Also Order J909415 kit)

1шт.

Short block does not include the camshaft or tappets

1шт.

JR911898

ENGINE, EXCHANGE

Engine (Exchange) Block Assembly - cylinder, stripped, remanufactured

1шт.

JC911898

SKELETON ENGINE

Return Part Number - Use this number to return block core for credit

1шт.

1

J911898

BASIC BLOCK

BLOCK ASSEMBLY - cylinder, stripped, new (Also Order J909415 kit), Includes: Ref. 2 - 10

1шт.

2

J905397

CAP

CAP - bearing, main

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

BOLT - hex flange cap, M14 x 128 mm

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft (See Figure 2-38)

7шт.

5

J900965

PLUG

PLUG - expansion cup, 58 mm OD

1шт.

8

A77586

PLUG

PLUG - cup, 28.9 mm OD

1шт.

9

A77506

PLUG

PLUG - expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

PLUG - expansion, 35 mm OD

3шт.

J909415

KIT

HARDWARE KIT - block, Includes: Ref. 11 - 26

1шт.

11

A77530

PLUG

PLUG - expansion, 1-3/16 inch OD

2шт.

14

A77439

PLUG

PLUG - expansion, 22 mm OD

2шт.

15

J901969

PLUG

PLUG - expansion, 69 mm OD

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

PING - dowel

4шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex pipe, 1/8 inch PT

6шт.

18

A77429

PLUG

PLUG - hex socket head, 1/2 inch PT

4шт.

19

A77505

PLUG

PLUG - hex pipe, 3/4 inch PT

2шт.

20

A77533

PLUG

PLUG - hex pipe, 1 inch PT

1шт.

24

J905928

NOZZLE INJECTION

NOZZLE - cooling, piston

6шт.

25

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm

2шт.

26

A77425

DRAIN VALVE

VALVE - drain, coolant

1шт.

A77530

PLUG

PLUG - retaining (Not used this application)

1шт.

27

J909389

RADIATOR HOSE,50.08 mm ID, 60.08 mm ID x 39.70 mm

Elbow, Water

1шт.

28

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

1шт.

29

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

TUBE - filler, oil

1шт.

30

A77424

FILLER CAP

CAP - filler

1шт.

33

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, turbo charger

1шт.

34

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE - oil dipstick

1шт.

35

J908773

DIPSTICK,485.3mm L

DIPSTICK - oil

1шт.

42

J904044

GASKET

GASKET - cover

1шт.

43

NLS

NO LONGER SERVICED

COVER - access

1шт.

44

J900631

FLANGE BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

BOLT - cover retaining

2шт.

46

A77595

KIT

HEATER KIT - coolant, block, Includes: Ref. 47 - 49

1шт.

47

J905113

CABLE

CABLE - heater, block

1шт.

48

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77595), block, Includes: Ref. 49

1шт.

49

J910517

O-RING

O-RING - heater element, block

1шт.
