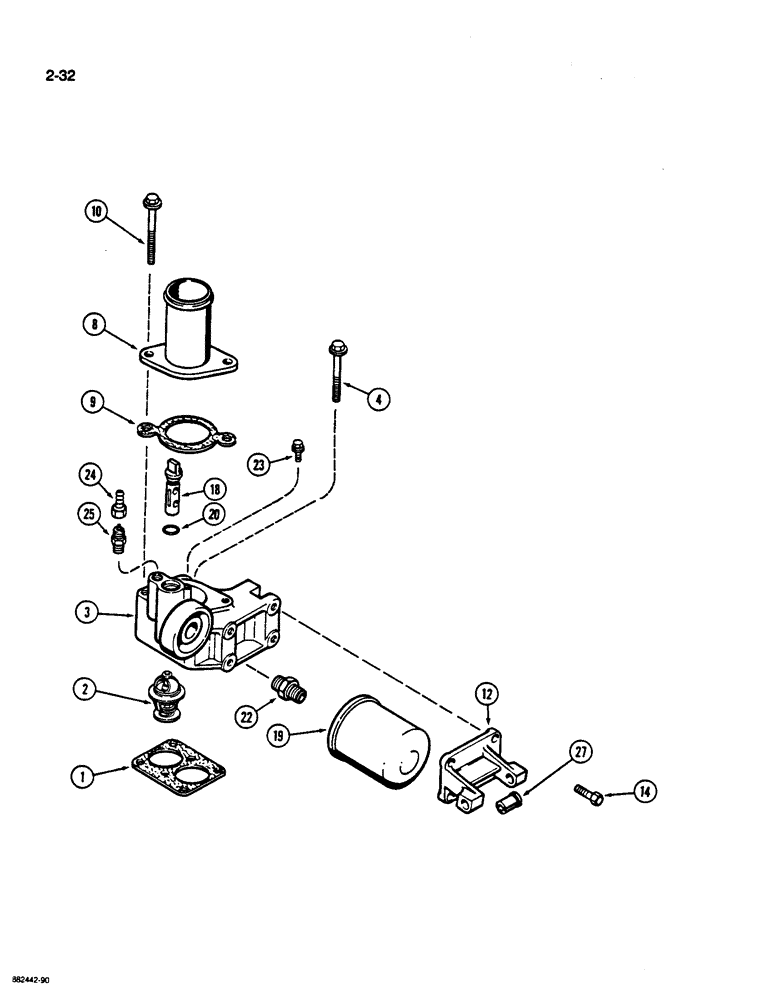

Запчасти Case W36 (2-32) - THERMOSTAT HOUSING, 6TA-830 ENGINE (02) - ENGINE

1

J914310

GASKET,0.8mm Thk

- thermostat housing (Replaces J910505)

1шт.

2

J907242

THERMOSTAT

- coolant, 83 Deg C

2шт.

3

J913708

HOUSING

- thermostat

1шт.

4

J902112

FLANGE BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

BOLT - hex flange, M8 x 80 mm

2шт.

8

J912800

CONNECTION

TUBE - outlet

1шт.

9

J914309

GASKET

- outlet tube (Replaces J909919)

1шт.

10

J906715

FLANGE BOLT

BOLT - hex flange, M8 x 95 mm

2шт.

12

E156401

SUPPORT

- mounting, alternator

1шт.

14

813-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 8.8

- hex, M8 x 1.25 x 65 mm

2шт.

14

813-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 1.25 x 25 mm

2шт.

18

J912837

COCK

VALVE - shutoff

1шт.

19

A77544

FILTER

- coolant conditioner

1шт.

20

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- shutoff valve

1шт.

22

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

- filter

1шт.

23

J900625

BOLT,Hex Flg, M6 x 10, 8.8, Full Thd

BOOT - retaining, housing to head, 10 mm long

1шт.

24

J911925

COUPLING

- hose

1шт.

25

J911901

VALVE, CHECK

VALVE ASSEMBLY - check

1шт.

E156403

COVER PLATE

BRACE - alternator

1шт.

27

J910715

SPACER

-, Serial Range: alternator-support

1шт.

813-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, M10 x 1.5 x 25 mm

1шт.

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.
