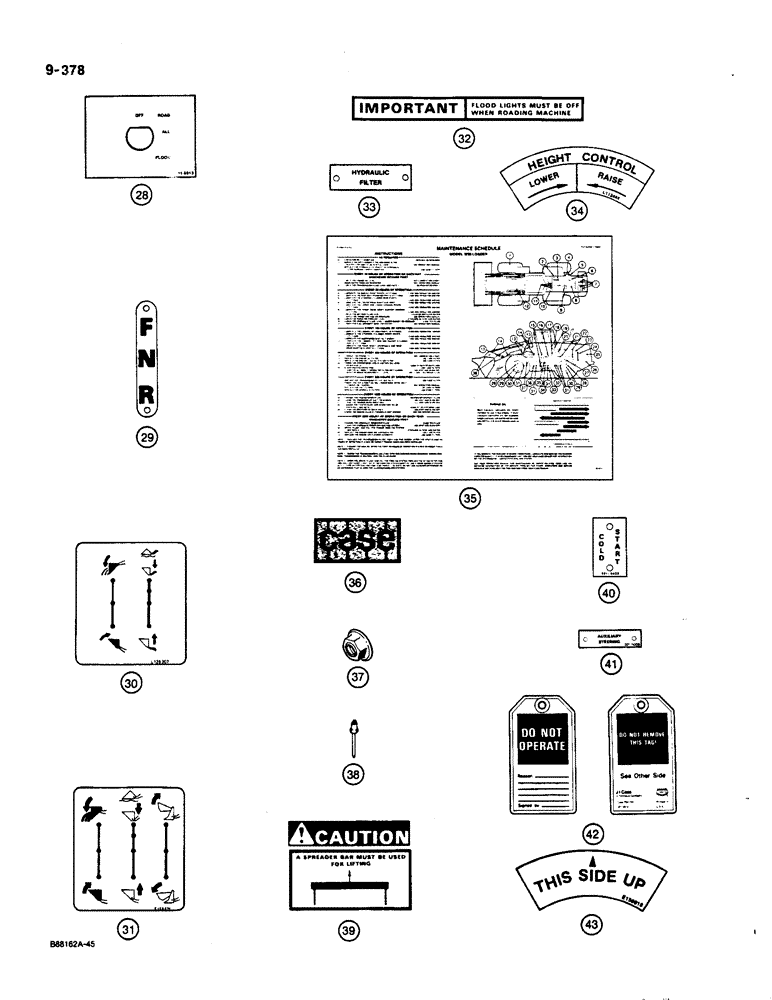

Запчасти Case W36 (9-378) - DECALS (09) - CHASSIS/ATTACHMENTS

L126724

KIT

- decal, Includes: Ref. 28 - 38 and Ref. 1 - 27 on Figure 9-376

1шт.

28

321-5913

DECAL

PLATE - decal, Off-Road-All-Flood light switch

1шт.

29

321-5872

DECAL

PLATE - transmission direction control

1шт.

30

L126307

DECAL

- bucket control, 2 lever, 2 spool

1шт.

31

E156374

DECAL

- bucket control, 3 lever, 3 spool

1шт.

32

321-4632

DECAL

- Important, flood lights must be off

1шт.

33

321-6313

DECAL

PLATE - decal, hydraulic filter

1шт.

34

L112444

DECAL

- height control

1шт.

35

L126441

INSTRUCTION

DECAL - maintenance chart

1шт.

36

321-4739

EMBLEM

- Case, on grille

1шт.

37

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push on type, 1/4", plated

2шт.

38

151-525

RIVET,Pop, 1/8" x .275"

- pop, 1/8" x 15/64"

1шт.

39

321-3574

DECAL

- Caution, a spreader bar must be used

2шт.

40

321-4425

DECAL

- Cold Start

1шт.

41

321-5009

DECAL

- Auxiliary Steering

1шт.

42

321-4614

TAG

- do not operate

1шт.

43

E156918

DECAL

- This Side Up, air filter

1шт.
