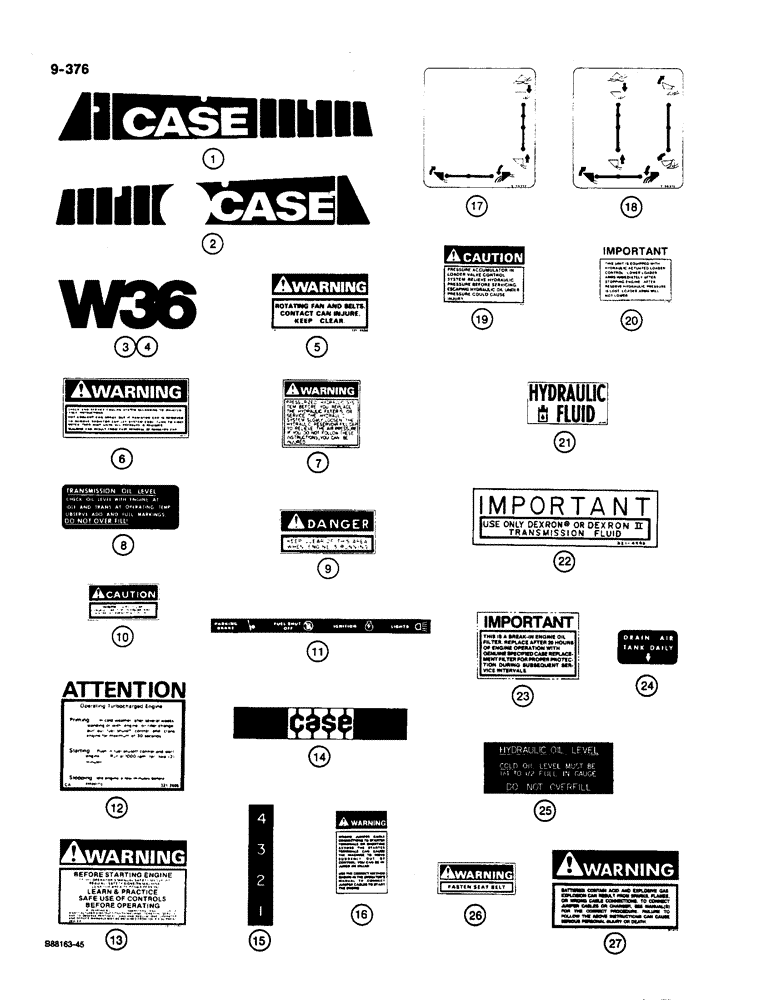

Запчасти Case W36 (9-376) - DECALS (09) - CHASSIS/ATTACHMENTS

L126724

KIT

- decal, Includes: Ref. 1 - 27 and Ref. 28 - 38 on Figure 9-378

1шт.

1

E156242

DECAL

- Case, left-hand, hood

1шт.

2

E156243

DECAL

- Case, right-hand, hood

1шт.

3

E156306

DECAL

- W36, right-hand, rear hood

2шт.

4

E156307

DECAL

- W36, front

1шт.

5

321-3596

DECAL

- Warning, fan

2шт.

6

321-6672

DECAL

- Warning, pressure cap

1шт.

7

321-6666

DECAL

- Warning, pressurized hydraulic system

2шт.

8

321-1980

DECAL

- transmission oil level

1шт.

9

321-3205

DECAL

- Danger

2шт.

10

321-3206

DECAL

- Caution, safety link

1шт.

11

321-4736

DECAL

- instrument cluster

1шт.

12

321-2605

DECAL

- Attention, operating turbocharged engine

1шт.

13

321-3705

DECAL

- Warning, before starting engine

1шт.

14

L57685

DECAL

- Case

2шт.

15

L111506

DECAL

- transmission, 4 3 2 1

1шт.

16

321-6718

DECAL

- Warning, jump start

1шт.

17

E156333

DECAL

- bucket control, 1 lever, 2 spool

1шт.

18

E156375

DECAL

- bucket control, 2 lever, 3 spool

1шт.

19

321-5852

DECAL

- Caution, loader valve

1шт.

20

321-5853

DECAL

- Important, loader valve control

1шт.

21

321-6376

DECAL

- hydraulic fluid

1шт.

22

321-4995

DECAL

- Important, transmission oil specification

1шт.

23

321-3863

DECAL

- Important, oil filter

2шт.

24

321-1077

DECAL

- air tank drain

1шт.

25

L117520

DECAL

- hydraulic oil level

1шт.

26

321-3060

DECAL

- Warning, seat belt

1шт.

27

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.
