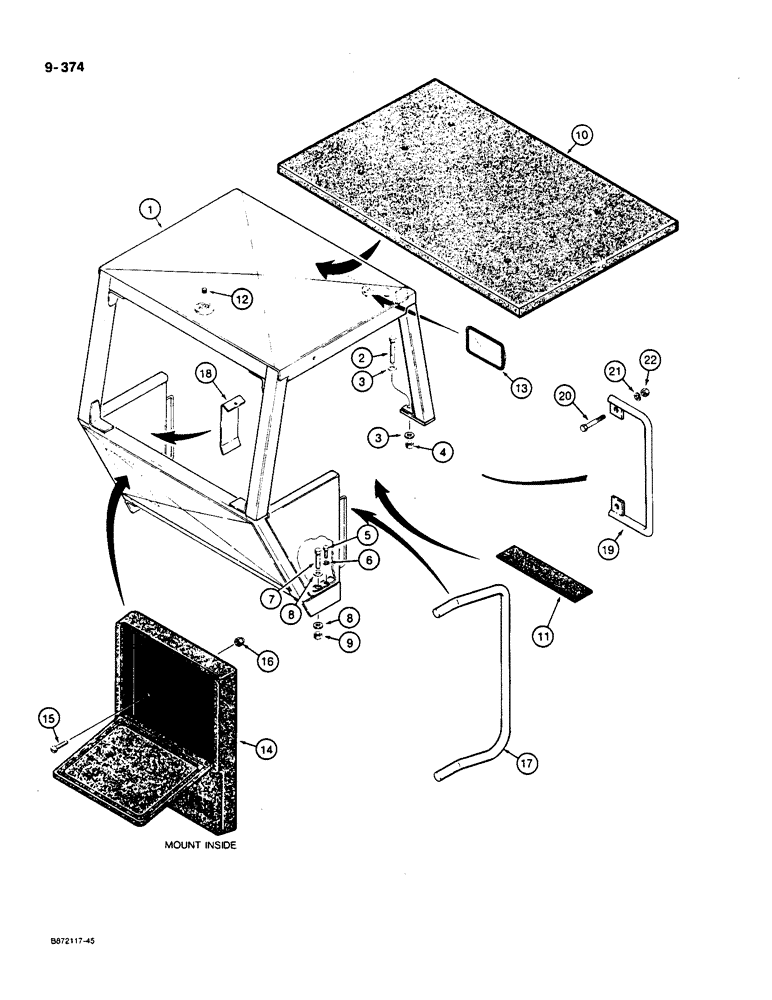

Запчасти Case W36 (9-374) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY - ROPS, machinery item, order from Machinery Price List

1шт.

2

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

- hex head, 1" - 8 NC x 4", do not use plated hardware in this application

2шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

4шт.

4

131-199

LOCK NUT,1"-8, GC

NUT - hex, self-locking, 1" - 8 NC

2шт.

5

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

26-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 8

- hex head, 1" - 8 NC x 2-3/4", grade 8, do not use plated hardware in this application

2шт.

8

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

4шт.

9

131-199

LOCK NUT,1"-8, GC

NUT - hex, self-locking, 1" - 8 NC

2шт.

10

L114406

ROOF LINING

HEADLINER - canopy

1шт.

11

D55216

PAD,2" x 9"

PAD - non skid

3шт.

12

221-1036

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - square socket head, 1" NPT

1шт.

13

L74714

MIRROR

AND HARDWARE - rear view

1шт.

14

A177376

BOX

- operator's manual

1шт.

15

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

MACHINE SCREW - slotted head, 1/4" - 20 NC x 1/2"

3шт.

16

129-884

CROWN NUT,Crown, 1/4"-20

- dome, 1/4" - 20 NC, plated

3шт.

17

L52012

HOLDER

HANDRAIL - canopy, rear, Serial Range: welded-canopy

2шт.

18

L74938

BRACKET

- storage, rear, welded to canopy support, instrument panel cover, weld on see page 9-337 for instrument panel cover and related parts

1шт.

19

L126700

HANDLE

HANDRAIL - canopy, front, bolt on

2шт.

20

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex head, 3/8" - 16 NC x 1-3/8", zinc plated

4шт.

21

492-11038

LOCK WASHER,3/8"

4шт.

22

425-106

NUT,3/8"-16, Cl 5

4шт.
