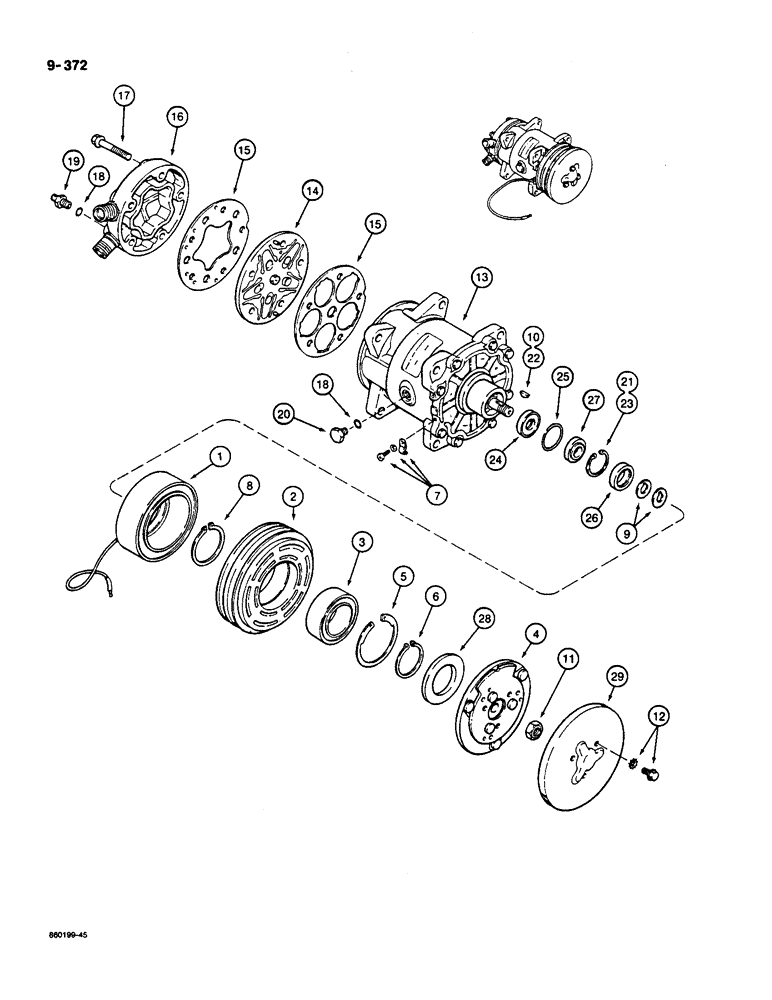

Запчасти Case W36 (9-372) - AIR CONDITIONING COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

A177564

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, Includes: Ref. 1 - 29

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

A49705

CLUTCH

CLUTCH ASSEMBLY - compressor, Includes: Ref. 1 - 12

1шт.

1

A49704

COIL

COIL ASSEMBLY - 24 volt

1шт.

2

A49660

PULLEY ASSY.

PULLEY ASSEMBLY - drive, two groove, Includes: Ref. 3 - 5

1шт.

3

A49663

BALL BEARING,40 mm ID x 62 mm OD x 24 mm

BEARING - pulley

1шт.

4

A49677

PLATE

PLATE - front

1шт.

5

NSS

NOT SOLD SEPARAT

SNAP RING - pulley

1шт.

A49673

KIT

ACCESSORY KIT - clutch, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

SNAP RING - clutch

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP ASSEMBLY - lead wire

1шт.

8

NSS

NOT SOLD SEPARAT

SNAP RING - clutch

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM - clutch

1шт.

10

NSS

NOT SOLD SEPARAT

KEY - clutch drive

1шт.

11

NSS

NOT SOLD SEPARAT

NUT - retainer

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - retainer

1шт.

A49672

COMPRESSOR

COMPRESSOR ASSEMBLY - field, Includes: Ref. 13 - 27

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK ASSEMBLY - compressor

1шт.

14

A49662

PLATE

PLATE ASSEMBLY - valve, Includes: Ref. 15

1шт.

15

A49668

GASKET KIT

GASKET KIT - valve plate

1шт.

16

A49661

HEAD (CYLINDER)

HEAD - cylinder

1шт.

17

A49669

SCREW,Cylinder

BOLT - hex flanged, head

5шт.

18

A49666

O-RING

O-RING - rubber

3шт.

19

A49670

PORT

PORT - service

2шт.

20

A49667

PLUG

PLUG - oil, filler

1шт.

21

A49664

CIRCLIP

SNAP RING - seal seat

1шт.

22

A49671

KEY

KEY - shaft, compressor

1шт.

A49665

SEAL KIT

SEAL KIT - compressor, Includes: Ref. 2326

1шт.

23

A49664

CIRCLIP

SNAP RING - compressor

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - housing

1шт.

26

NSS

NOT SOLD SEPARAT

RING - felt

1шт.

27

NSS

NOT SOLD SEPARAT

SEAT - seal, shaft

1шт.

28

A49674

BEARING COVER,36 mm ID x 62 mm OD x 1.2, 4.2 mm

COVER - dust, bearing

1шт.

29

A49675

COVER

COVER - dust, clutch

1шт.
