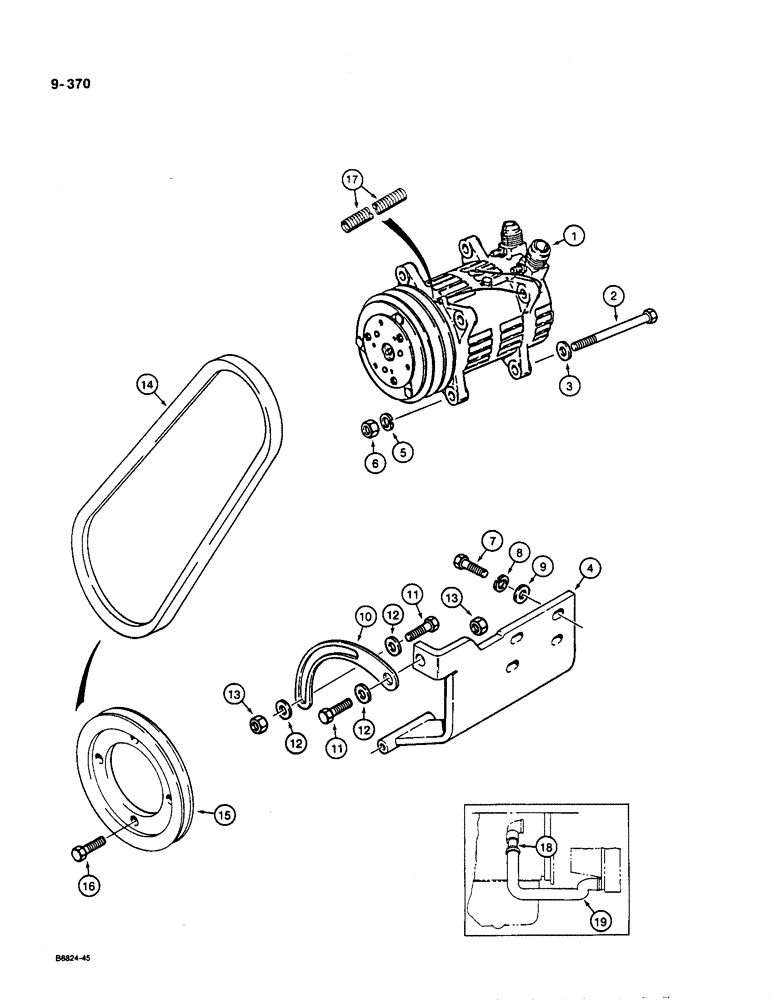

Запчасти Case W36 (9-370) - AIR CONDITIONING COMPRESSOR AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

A177564

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 9-372

1шт.

2

E156369

BOLT

- special, compressor mounting

1шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

4

E156358

SUPPORT

PLATE - compressor mounting

1шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

5

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

1шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

6

825-1110

NUT,M10, Cl 8

- hex, 10 mm - 1.5, plated

1шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

7

813-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 30 mm (8.8), plated

4шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

9

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

10

E156124

TIGHTENER

STRAP - compressor adjusting

1шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

11

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- hex head, 3/8" - 16 NC x 1-3/8", plated

2шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

12

195-2028

WASHER,.391" x 5/8" x .065"

- flat, 3/8", special

3шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

13

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

14

396829R1

V-BELT,0.50" W x 44.00" L

Compressor drive 0.50" W x 44.00" L

1шт.

15

J908307

PULLEY

- compressor drive

1шт.

16

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT - special, pulley mounting

4шт.

17

A176851

CONDUIT

- flex, wire, compressor

1шт.

18

E156193

TUBE,50.8 mm OD x 88 mm L

- radiator, bypass, used on models with air conditioning only

1шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

19

E156804

HOSE

- radiator, bypass, used on models with air conditioning only

1шт.

Part of air conditioning compressor repair kit P/N E157070.

1шт.

E157070

PACKAGE, REPAIR

KIT - repair, air conditioning compressor, Includes: Ref. 2 - 13, 18 and 19

1шт.
