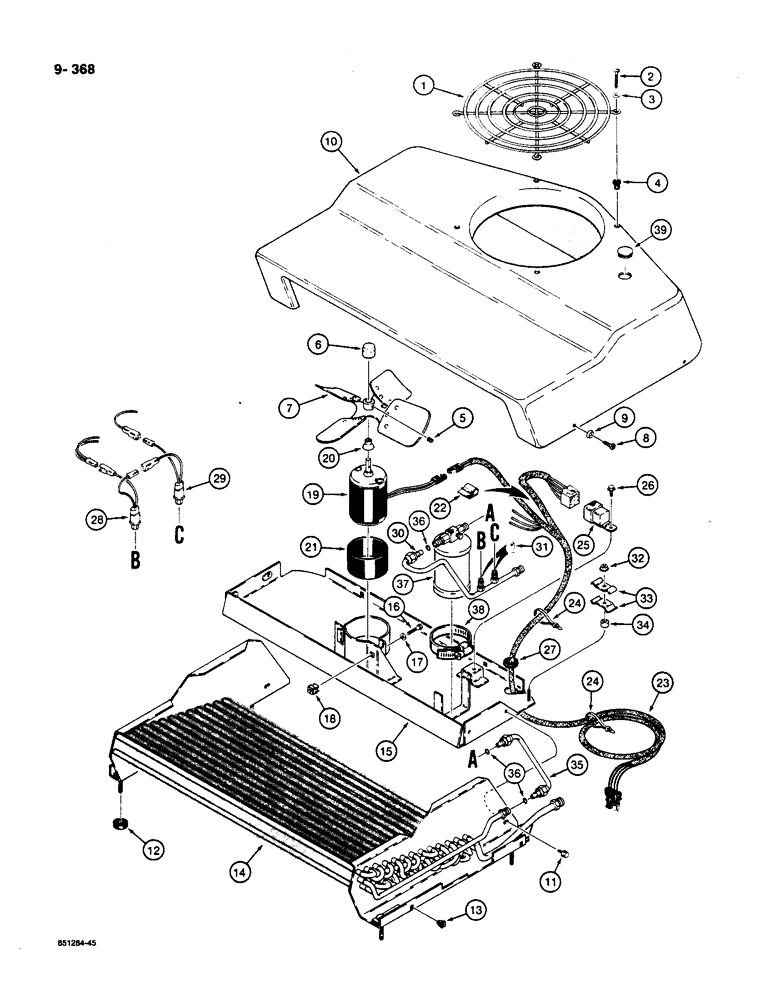

Запчасти Case W36 (9-368) - AIR CONDITIONING CONDENSER - L115234 (09) - CHASSIS/ATTACHMENTS

1

L117107

GUARD

- fan

1шт.

L115234

CONDENSER

ASSEMBLY - air conditioner, Includes: Ref. 2 - 39

1шт.

2

182-529

SCREW,Sl Pan Hd, #10 - 32 x 1 1/2"

- pan head slotted, No. 10 - 32 NF x 1-1/2", plated

4шт.

3

195-513

WASHER,#10

- flat, 3/16", plated

4шт.

4

N13336

FASTENER

- special, plastic push-in with threads

4шт.

5

178-413

SET SCREW,Hex Soc, #10-24 x 1/4"

- hex socket headless, No. 10 - 24 NC x 1/4", flat point

1шт.

6

NSS

NOT SOLD SEPARAT

CAP - fan shaft

1шт.

7

N9945

FAN

- condenser

1шт.

8

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval Phillips head, No. 10 x 3/4", plated

6шт.

9

F63765

WASHER

- special

6шт.

10

N13337

COVER

- condenser

1шт.

11

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - indented hex washer head, self-tapping, 1/4" - 20 NC x 1/2", plated

4шт.

12

N7911

BUMPER

SPACER - rubber

4шт.

13

131-648

SPRING NUT,Tinn, U, #10-24

- U-type, No. 10 - 24 NC, replaces special nut used in original assembly

6шт.

14

N13138

COIL

- condenser

1шт.

15

NSS

NOT SOLD SEPARAT

BASE - condenser

1шт.

16

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

17

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

18

131-852

SPRING NUT,Ret, 1/4"-20

1шт.

19

N9946

MOTOR

- 24 volt, Includes: Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

SLINGER - motor

1шт.

21

D83118

ISOLATOR

INSULATOR - motor

1шт.

22

NSS

NOT SOLD SEPARAT

CLIP - harness, plastic stick-on

1шт.

23

N13141

HARNESS

- condenser

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

25

N9948

RELAY

- condenser

1шт.

26

193-522

SCREW,SEMS, Hex Hd, #10-32 x 5/8"

MACHINE SCREW - hex head, with external tooth lock washer, No. 10 - 24_NC x 5/8"

1шт.

27

N13338

GROMMET

- harness

1шт.

28

N13137

SWITCH

- low pressure

1шт.

29

R48818

IGNITION SWITCH

SENDER - high temperature

1шт.

30

N13143

TUBE

- condenser

1шт.

31

N13140

CORE

STEM - sensor

2шт.

32

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER - 1/4" - 20 NC, plated

1шт.

33

NSS

NOT SOLD SEPARAT

CLAMP - tube

2шт.

34

D45998

SPACER

- clamp

1шт.

35

N13139

TUBE

- receiver-drier

1шт.

36

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Drier

3шт.

37

N13142

AIR CONDITIONER

RECEIVER-DRIER - condenser

1шт.

38

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - receiver-drier

1шт.

39

353-252

PLUG,1"

- button, 1"

1шт.
