Запчасти Case W36 (9-366) - AIR CONDITIONING CONDENSER AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

L115234

CONDENSER

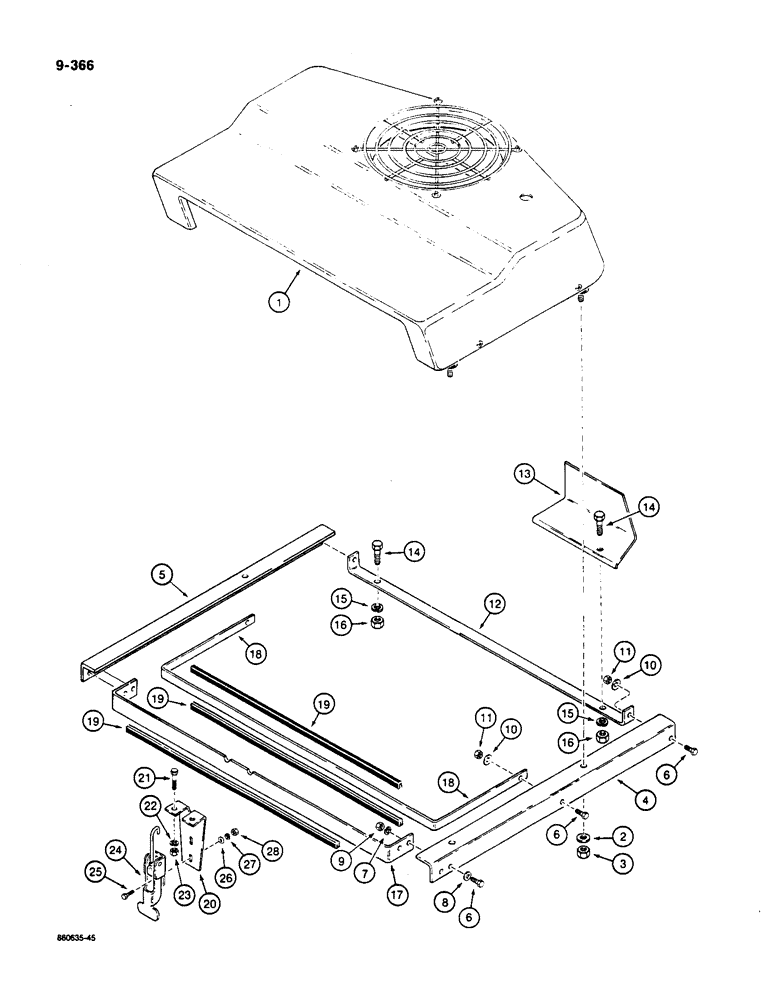

- air conditioning, parts list Figure 9-368

1шт.

2

495-21038

WASHER,5/16"

4шт.

3

131-351

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

4

L116721

SUPPORT

BRACKET - condenser mounting, right-hand

1шт.

5

L116720

SUPPORT

BRACKET - condenser mounting, left-hand

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

8шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

495-21044

WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

L105055

WASHER

BELLEVILLE SPRING - side bracket mounting

4шт.

11

131-217

LOCK NUT

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

12

L114418

BRACKET

- condenser mounting, front

1шт.

13

L116265

SHIELD

- heat

1шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex head, 1/2" - 13 NC x 1-1/4", plated

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

17

L115478

BASE

BRACKET - rear of condenser, latch retaining

1шт.

18

L116718

SUPPORT

- condenser mounting

1шт.

19

REF

INSTRUCTION

TRIM - bracket and support, 23-5/8" (600 mm) long, cut from D52812, see below

3шт.

20

L115524

BRACKET

- hood, latch mounting

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

L114483

LATCH

- condenser retaining

1шт.

25

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

2шт.

26

495-21031

WASHER,1/4"

- flat, , plated 1/4"

2шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

28

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

2шт.

29

223-10

FUSE,10 Amp, Type 3AG

- 10 amp

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116" (2946 mm) long

1шт.
