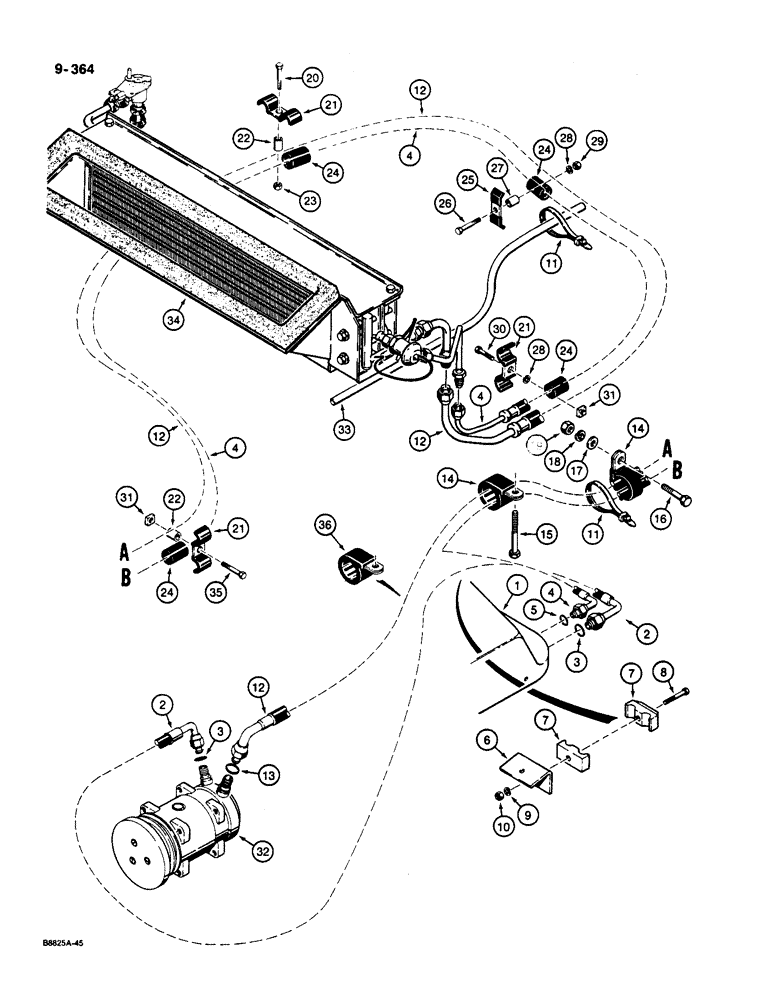

Запчасти Case W36 (9-364) - AIR CONDITIONING LINES (09) - CHASSIS/ATTACHMENTS

1

L115234

CONDENSER

- air conditioning, parts list Figure 9-368, for mounting parts see Figure 9-366

1шт.

2

E156133

HOSE

- 72" (1828 mm) long, condenser to compressor, Includes: Ref. 3

1шт.

3

N13633

O-RING,7/16" ID x 1/16" Width

- hose

2шт.

4

L116493

HOSE ASSY.

HOSE - 244" (6198 mm) long, condenser to evaporator core in cab, Includes: Ref. 5

1шт.

5

A61198

O-RING,0.07" Thk x 0.301" ID, -11

- hose, at condenser

1шт.

6

L114417

BRACKET

- hose clamp

1шт.

7

L115095

CLAMP

- double, includes both plastic halves and top steel plate

1шт.

8

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex head, 5/16" - 18 NC x 2-1/2", plated

1шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

E156134

HOSE ASSY.

HOSE - 121" (3073 mm) long, low pressure, Includes: Ref. 13

1шт.

13

N13634

O-RING,9/16" ID x 1/16" Width

- hose, at condenser

1шт.

14

L17513

CLAMP

- hose

2шт.

15

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4", plated

1шт.

16

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

17

495-21056

WASHER,1/2"

- flat, , plated 1/2"

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

20

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex head, 3/8" - 16 NC x 2-1/4", plated

1шт.

21

R15257

CLAMP

- hose

3шт.

22

D36040

BUSHING

SPACER - clamp

2шт.

23

131-217

LOCK NUT

NUT - hex, 3/8" - 16 NC, plated, grade 8

1шт.

24

L117254

SLEEVE

- hose

4шт.

25

D40236

CLAMP

- hose

1шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

27

F14117

SPACER

- clamp

1шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

425-106

NUT,3/8"-16, Cl 5

1шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

1шт.

31

25-286

NUT,Sq, 3/8"-16, G2, Hvy

- square, heavy, 3/8" - 16 NC

2шт.

32

A177564

COMPRESSOR

- air conditioning, parts list Figure 9-370

1шт.

33

L73689

TUBE,0.5" OD x 41" L

- condensation drain

2шт.

34

REF

INSTRUCTION

PLENUM - see parts list Figure 9-360

1шт.

35

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4", zinc plated

1шт.

36

L17513

CLAMP

- hose, use existing hardware on center hood mounting post

1шт.
