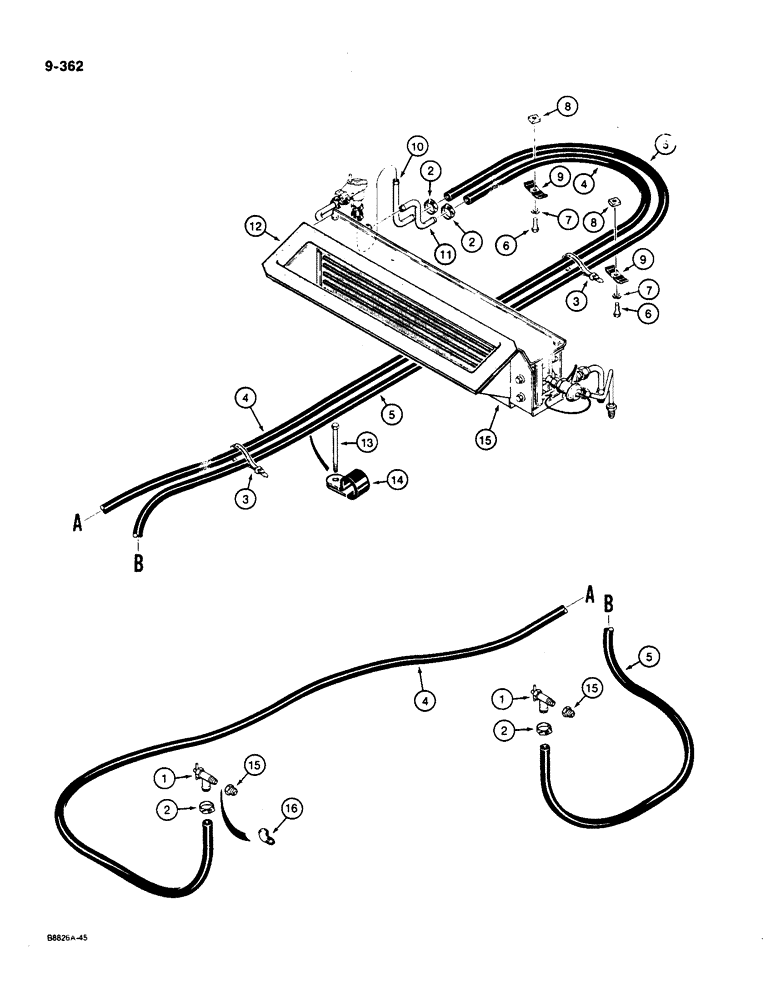

Запчасти Case W36 (9-362) - HEATER LINES (09) - CHASSIS/ATTACHMENTS

1

301803R1

SHUT-OFF VALVE

VALVE - shut-off

2шт.

2

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

1975870C1

HEATER HOSE,15.50 mm ID x 3556.00 mm

HOSE , Heater to Pump, Outlet, Cut from 97252C1, See below 15.50 mm ID x 3556.00 mm

1шт.

5

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HEATER HOSE , Heater to pump, Inlet, Cut from 97252C1, See below 15.50 mm ID x 3302.00 mm

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1"

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

224-2806

SQUARE NUT,Sq, 3/8"-16, G2, Hvy

- square, 3/8" - 16 NC

2шт.

9

D40236

CLAMP

- hose

2шт.

10

L100842

HEATER TUBE,147.5, 63.5 mm L

TUBE - inlet

1шт.

11

L100843

HEATER TUBE,127, 95 mm L

TUBE - outlet

1шт.

12

REF

INSTRUCTION

PLENUM - heater and air conditioning, parts list Figure 9-360

1шт.

13

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

14

L17513

CLAMP

- hose

1шт.

15

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" x 3/8" NPT, plated

2шт.

16

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- street, 45 degree, 3/8" NPT, galvanized

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
