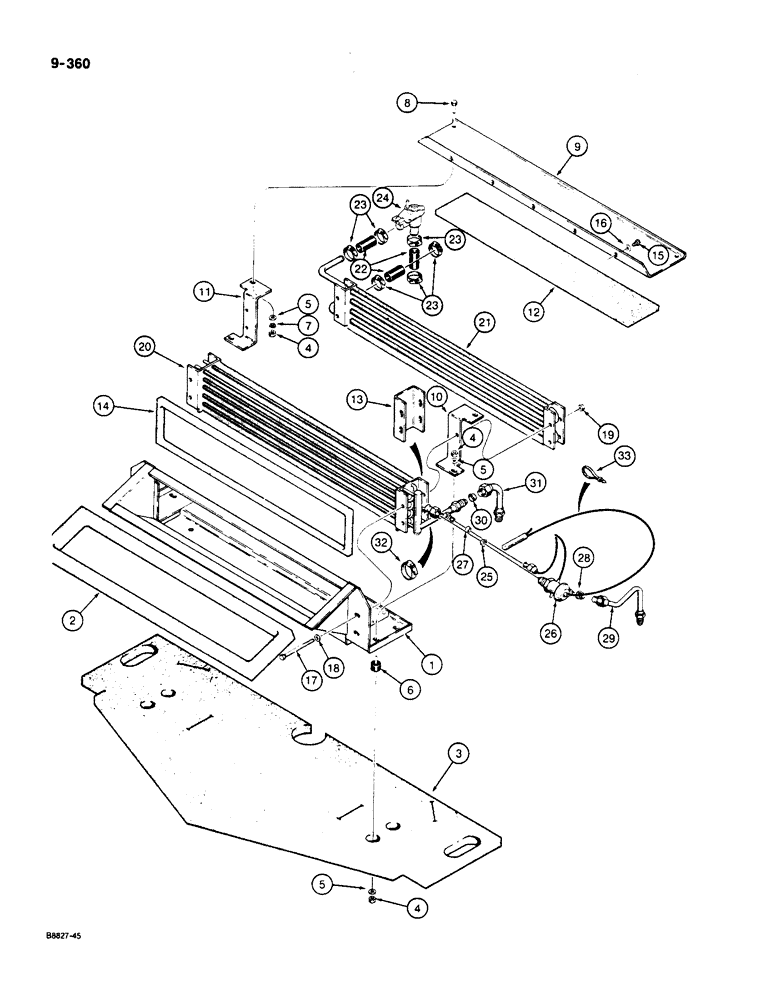

Запчасти Case W36 (9-360) - HEATER AND AIR CONDITIONING PLENUM (09) - CHASSIS/ATTACHMENTS

1

L74336

PLATE

PLENUM - heater and air conditioning

1шт.

2

L74265

SEAL

- plenum

1шт.

3

L74335

SEAL

- floor

1шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC

10шт.

5

495-21031

WASHER,1/4"

- flat, 1/4"

10шт.

6

F43229

MOUNTING PARTS

INSULATOR - rubber

4шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4"

2шт.

9

L74224

COVER

- plenum

1шт.

10

L76407

BRACKET

- right-hand

1шт.

11

L76408

BRACKET

- left-hand

1шт.

12

L74250

SEAL

- top

1шт.

13

L74228

BRACKET

SPACER - core

2шт.

14

L74249

SEAL

SEAL - rear

1шт.

15

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex slotted washer head, No. 10 - 16 NC x 1/2", plated

3шт.

16

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

Flat #10

3шт.

17

13-480

CAP,Hex, 1/4" - 20 x 5", Gr 5

BOLT - hex head, 1/4" - 20 NC x 5"

4шт.

18

495-21031

WASHER,1/4"

- flat, 1/4"

4шт.

19

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

4шт.

20

F63646

EVAPORATOR

- evaporator

1шт.

21

L77526

CORE

- heater

1шт.

22

REF

INSTRUCTION

HOSE - 5/8" (16 mm) ID x 2" (51 mm) long, temperature control valve to heater core, cut from 97252C1 hose, see below

3шт.

23

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

6шт.

24

R54333

VALVE

- heater temperature control

1шт.

25

222-994

GASKET,1/2 Tube, Fl, Copper

- copper, 1/2" (13 mm)

1шт.

26

F64389

VALVE

- expansion

1шт.

27

222-991

GASKET,1/4 Tube, Fl, Copper

- copper, 1/4" (6 mm)

1шт.

28

222-993

GASKET,3/8 Tube, Fl, Copper

(9 mm) 3/8 Tube, Fl, Copper

1шт.

29

L107772

TUBE,0.375" OD

- high pressure

1шт.

30

222-995

SEALING WASHER,15.88mm ID

- copper, 5/8" (16 mm)

1шт.

31

F43390

TUBE,0.625" OD x 2.1, 3.92" L

- low pressure

1шт.

32

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - evaporator sensor to core

1шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

97252C1

HOSE,15.875 mm ID x 15240 mm Bulk

1шт.
