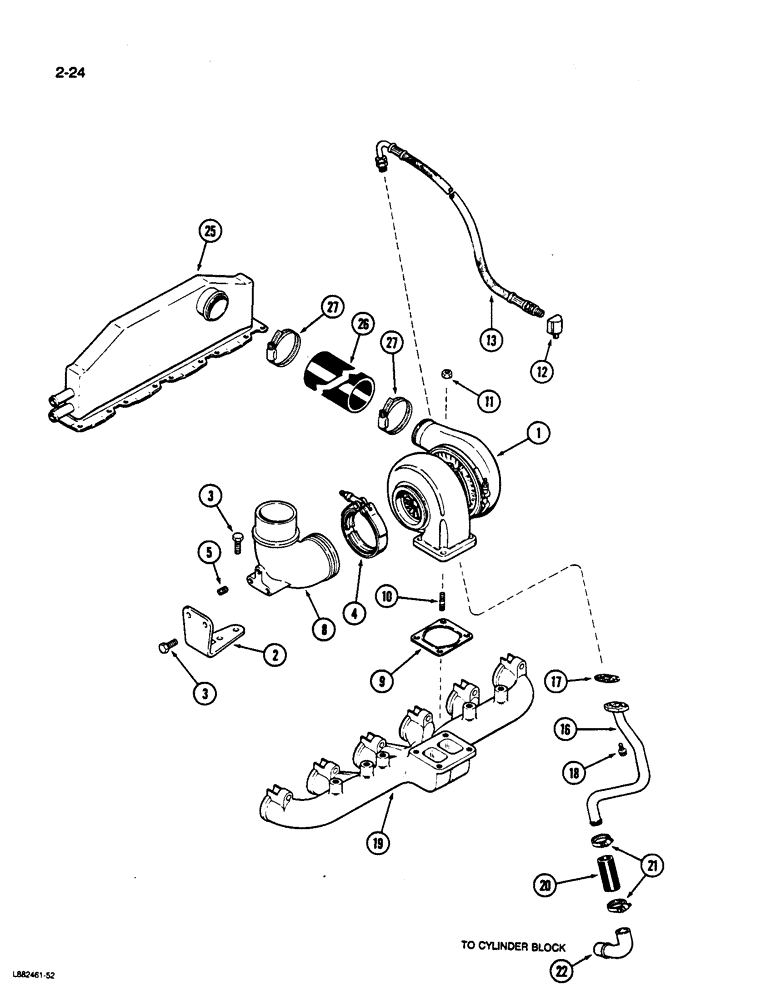

Запчасти Case W36 (2-24) - TURBOCHARGER SYSTEM, 6TA-830 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See Figure 2-27)

1шт.

2

E156467

BRACKET

- support

1шт.

3

E156558

BOLT

- hex, bracket retaining

4шт.

4

E156446

CLAMP

- elbow retaining

1шт.

5

E156593

PLUG

- elbow

1шт.

8

E156158

ELBOW

- turbocharger

1шт.

9

J911941

GASKET

- mounting, turbocharger

1шт.

10

J905417

STUD

- mounting, turbocharger, M10 x 1.25 and 1.50

4шт.

11

J901961

NUT

- hex, stud, M10 x 1.25

4шт.

12

A77588

ELBOW

- adapter, 90 degree

1шт.

13

J909545

HOSE

Supply, Oil

1шт.

16

J913396

TUBE

- drain, oil

1шт.

17

J914388

GASKET

- drain tube (Replaces J901805)

1шт.

18

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

2шт.

19

REF

INSTRUCTION

MANIFOLD - exhaust (See Figure 2-28)

1шт.

20

J903745

LARGE HOSE

HOSE - tube, drain

1шт.

21

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

retaining #16, 0.81/1.50 Type F Worm

2шт.

22

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain

1шт.

25

REF

INSTRUCTION

AFTERCOOLER - intake (See Figure 2-28)

1шт.

26

J904422

HOSE

- crossover

1шт.

27

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose retaining

4шт.
