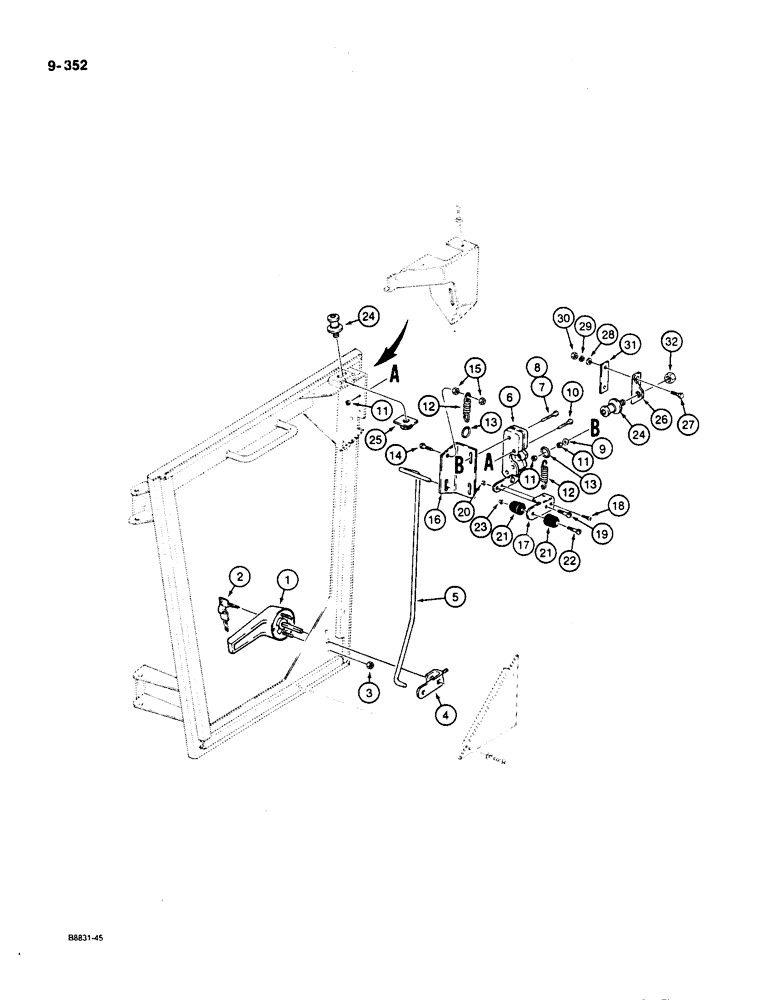

Запчасти Case W36 (9-352) - CAB DOOR LATCHES (09) - CHASSIS/ATTACHMENTS

1

F66157

HANDLE

- outside, locking

1шт.

2

A77313

SET OF 2 KEYS

KEY - handle, set of two, same as ignition key

1шт.

3

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

4

N9879

ARM

- latch, lower

1шт.

5

N9880

ROD

- latch pull

1шт.

6

F44925

LATCH

- lower door

1шт.

7

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex head, 1/4" - 20 NC x 1-3/4", plated, upper

1шт.

8

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5, Lower

1шт.

9

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, upper and lower bolts only

2шт.

10

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Center Hex, 1/4"-20 x 1 1/4", G5

2шт.

11

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

4шт.

12

L35748

SPRING

- latch pull

2шт.

13

N9883

OIL SEAL

RING - spring retaining

2шт.

14

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Spring Hex, 1/4"-20 x 1", G5

1шт.

15

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

2шт.

16

N9882

BRACKET

- latch and spring mounting

1шт.

17

N9884

LEVER

- latch release

1шт.

18

187-1109

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - pan Phillips head, self-tapping, No. 8 - 32 NC x 1/2", plated

1шт.

19

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1/2", plated

1шт.

20

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

21

L35871

FENDER

BUMPER - rubber

2шт.

22

182-578

SCREW,Slotted Pan Hd, #10-24 x 1"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1", plated

1шт.

23

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

1шт.

24

N8637

LATCH

STRIKER - door

3шт.

25

N9876

PLATE ASSY.

PLATE - with weld nut, for upper door striker

2шт.

26

N9877

BRACKET

- striker mounting, for lower left-hand door holdback

1шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

28

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

31

N8632

SHIM

- striker

1шт.

32

131-926

NUT,Flg, USR, 7/16"-14

- self-locking, flange type, 7/16" - 14 NC, plated

1шт.
