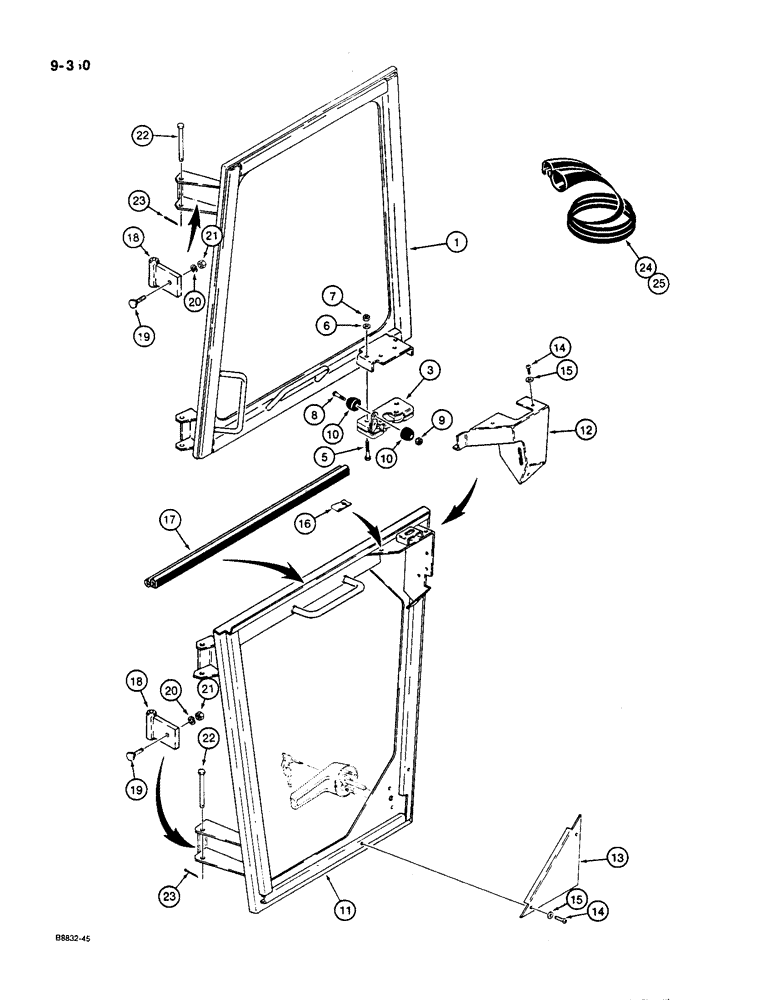

Запчасти Case W36 (9-350) - CAB DOORS (09) - CHASSIS/ATTACHMENTS

1

N9849

DOOR ASSY.

DOOR ASSEMBLY - upper, left-hand, Includes: Ref. 3 - 10

1шт.

2

N9850

DOOR ASSY.

DOOR ASSEMBLY - upper, right-hand, not shown, Includes: Ref. 3 - 10

1шт.

3

R55003

LATCH ASSY.

LATCH - upper door, left-hand

1шт.

4

R55002

LATCH

- upper door, right-hand, not shown

1шт.

5

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

6

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

4шт.

7

86625061

NUT,1/4"-20, GB

NUT - hex, 1/4" - 20 NC, plated

4шт.

8

182-544

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1-1/4", plated

1шт.

9

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

1шт.

10

L35871

FENDER

BUMPER - rubber

2шт.

11

N9851

DOOR

ASSEMBLY - lower, left-hand, Includes: Refs. 12 - 17 and Refs. 1 - 32 on Figure 9-353

1шт.

12

L115318

COVER

- upper, door latch

1шт.

13

N9881

COVER

- lower, door handle

1шт.

14

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated

5шт.

15

195-516

WASHER,#12

- flat, No. 10, plated

5шт.

16

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No. 10 - 24 NC

3шт.

17

REF

INSTRUCTION

SEAL - top of lower door, inside striker area, 24-1/2" (622 mm) long, cut from F43086, see below

1шт.

18

D71528

HINGE

- door, bolt-on

3шт.

19

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

22

N6990

AXLE PIN

PIN - hinge

6шт.

23

N6991

PIN

COTTER PIN - 5/32" x 3/4", brass

6шт.

24

REF

INSTRUCTION

SEAL - left-hand door frame, 155-1/4" (3943 mm) long, cut from F43086, see below

1шт.

25

REF

INSTRUCTION

SEAL - right-hand upper door frame, 108-1/2" (2756 mm) long, cut from F43086, see below

1шт.

F43086

SEAL

- rubber, bulk roll, 100 ft (30.48 m) long

1шт.
