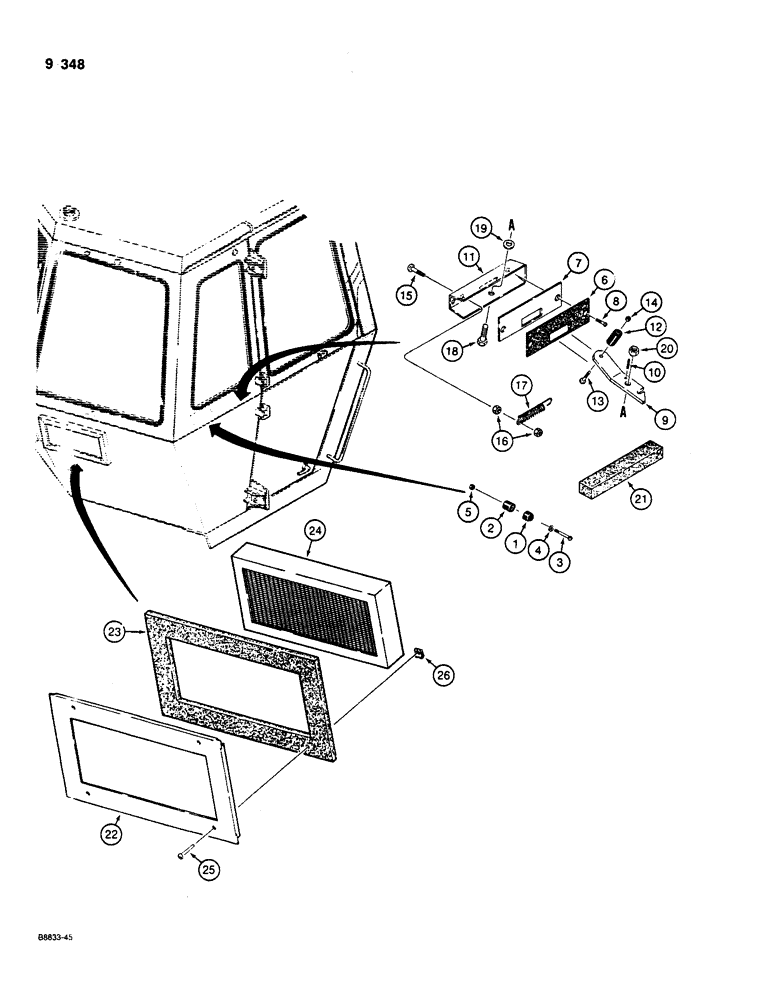

Запчасти Case W36 (9-348) - CAB FILTER AND DOOR HOLDER LATCHES (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
L35871
FENDER
BUMPER - rubber, rounded
2шт.
2
D78393
CUSHION
BUMPER - rubber
2шт.
3
182-544
SCREW,Slotted Pan Hd, #10-24 x 1 1/4"
MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1-1/4", plated
2шт.
4
195-513
WASHER,#10
- flat, No. 10, plated
2шт.
5
129-17
NUT,Hex, #10 - 24
NUT - hex, No. 10 - 24 NC, plated
2шт.
6
N9874
SEAL
- door hold back latch
2шт.
7
N9873
PLATE
- latch seal
2шт.
8
182-560
SCREW,Cross Pan Hd, 1/4"-20 x 3/4"
MACHINE SCREW - pan Phillips head, 1/4" - 20 NC x 3/4", plated
4шт.
N9870
BRACKET
LATCH ASSEMBLY - hold back, left-hand, Includes Refs. 9 - 20
1шт.
N9871
BRACKET
LATCH ASSEMBLY - hold back, right-hand, Includes: Refs. 9 - 20
1шт.
9
NSS
NOT SOLD SEPARAT
ARM - latch
1шт.
10
138-73
LOCK PIN,5/32" x 3/4", Slotted
PIN, 5/32" x 3/4", Slotted
1шт.
11
NSS
NOT SOLD SEPARAT
BRACKET - latch
1шт.
12
L35871
FENDER
BUMPER - rubber
1шт.
13
182-559
SCREW,Cross Pan Hd, #10-24 x 3/4"
MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated
1шт.
14
129-17
NUT,Hex, #10 - 24
NUT - hex, No. 10 - 24 NC, x 3/4", plated
1шт.
15
182-534
SCREW,Sl Pan Hd, 1/4" - 20 x 1"
MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 1", plated
1шт.
16
86625061
NUT,1/4"-20, GB
NUT - hex, self-locking, 1/4" - 20 NC, plated
2шт.
17
L35748
SPRING
- latch
1шт.
18
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
19
195-525
WASHER,3/8", SAE
- flat, 3/8", plated
1шт.
20
131-497
LOCK NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8" - 16 NC, plated
1шт.
21
D78389
INSULATOR
SEAL - below interior ventilation panel
2шт.
N9875
COVER
- filter, Includes: Ref. 22 and 23
2шт.
22
D78394
COVER
FRAME - filter
1шт.
23
D78395
SEAL
SEAL - frame
1шт.
24
D80562
AIR CLEANER
ELEMENT - filter
2шт.
25
173-231
SCREW,Sl Rnd Hd, 5/16" - 18 x 1 1/2"
MACHINE SCREW - round head, 5/16" - 18 NC x 1-1/2", plated
8шт.
26
131-639
SPRING NUT,U, Rtnr, 5/16" - 18
- U-type, 5/16" - 18 NC
8шт.
