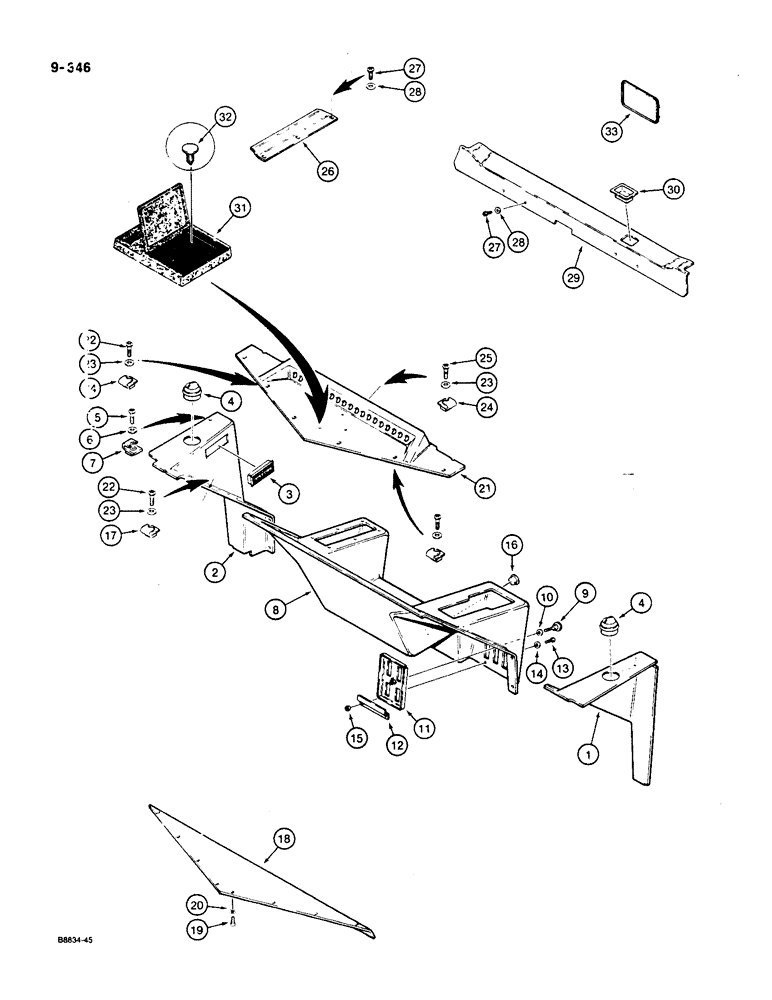

Запчасти Case W36 (9-346) - CAB CLOSURE PARTS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB - operators, machinery item, order from Machinery Price List

1шт.

1

L115316

PANEL

- right-hand

1шт.

2

L115317

PANEL

- left-hand

1шт.

3

N9887

VENT (AIR)

LOUVER - rectangular, self-retaining

2шт.

4

N9886

STEERING KNUCKLE

LOUVER - ball-type, self-retaining

2шт.

5

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated

2шт.

6

195-516

WASHER,#12

- flat, 1/4" x 9/16", plated

2шт.

7

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No. 10 - 24 NC

2шт.

8

L115315

PANEL

- center

1шт.

9

L79129

KNOB

- air vent slide plate

2шт.

10

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

11

N9889

PLATE

- vented, sliding

2шт.

12

N9888

BRACKET

- slide, vent plate

4шт.

13

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated

8шт.

14

195-516

WASHER,#12

- flat, No. 10, plated

8шт.

15

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

8шт.

16

353-416

PLUG,Dome, 1.750" hole, Nylon

- nylon, 1-3/4" diameter

1шт.

17

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No. 10 - 24 NC, if used

12шт.

18

D78392

PANEL

- floor plate

1шт.

19

187-582

SELF-TAP SCREW,0.19"-32 x 1/2"

SCREW - hex head, self-tapping, No. 10 - 32 NF x 1/2"

6шт.

20

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

21

L111761

PANEL

- rear shelf

1шт.

22

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated

4шт.

23

195-516

WASHER,#12

- flat, 1/4" x 9/16", plated

5шт.

24

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No. 10 - 24 NC, if used

3шт.

25

182-578

SCREW,Slotted Pan Hd, #10-24 x 1"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 1", plated

1шт.

26

N9857

PLATE

- step, left-hand door

1шт.

27

182-559

SCREW,Cross Pan Hd, #10-24 x 3/4"

MACHINE SCREW - pan Phillips head, No. 10 - 24 NC x 3/4", plated

5шт.

28

195-516

WASHER,#12

- flat, 1/4" x 9/16", plated

5шт.

29

N9872

COVER ASSY

COVER - front

1шт.

30

N9895

ASH TRAY

ASHTRAY - self-retaining, top of flat panel, if used

1шт.

31

A177376

BOX

- operators manual

1шт.

32

A162364

FASTENER

- box

3шт.

33

L74714

MIRROR

- rear view, includes hardware

1шт.
