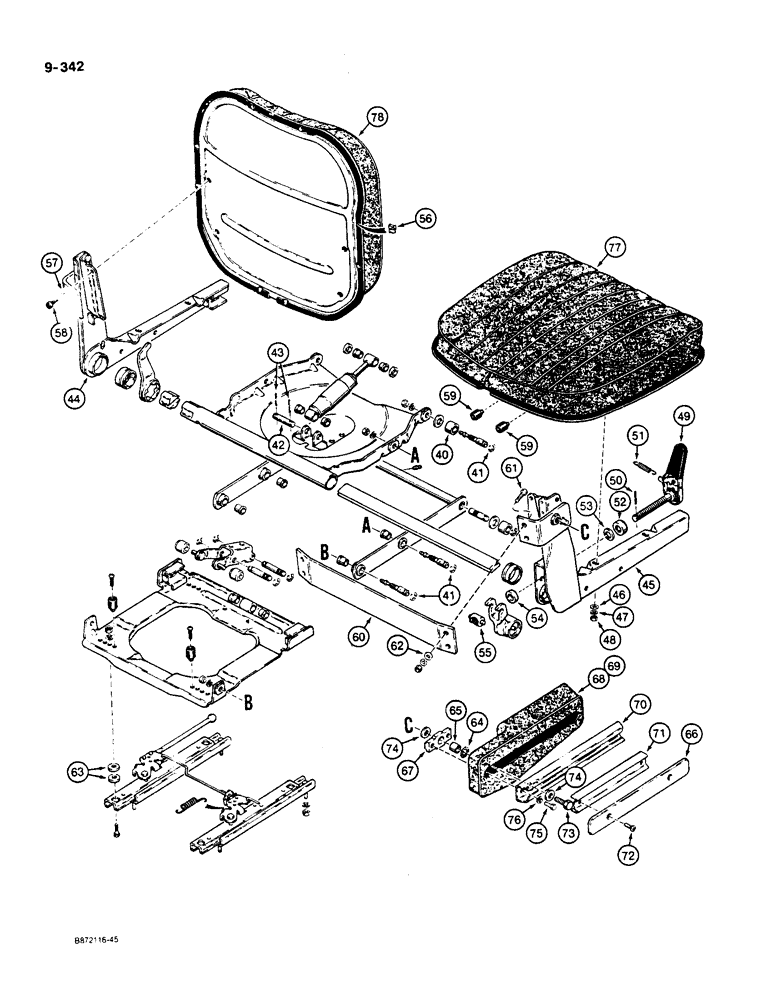

Запчасти Case W36 (9-342) - SUSPENSION SEAT (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

SEAT ASSEMBLY - Includes: Ref. 40 - 78 and Ref. 1 - 39 on Figure 9-340

1шт.

40

D66297

BEARING ASSY

BEARING - roller

2шт.

41

D66299

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , stud #50, .392" Dia, E-Type

6шт.

42

D66300

SHAFT

- hinge, shock, rear

1шт.

43

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

44

D64859

PANEL

SUPPORT - seat cushion, left-hand side

1шт.

45

D64860

PANEL

SUPPORT - seat cushion, right-hand side

1шт.

46

195-103

WASHER,5/16"

- flat, , plated 5/16"

4шт.

47

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

48

9635082

NUT,5/16" - 18, Gr 5

4шт.

49

N8420

HANDLE

- seat adjustment, Includes: Ref. 50 and 51

1шт.

50

135-936

GROOVED PIN,3/16" x 3/4", Type G

PIN, GROOVED, 3/16" x 3/4", Type G

1шт.

51

N9782

COIL SPRING

SPRING - handle

1шт.

52

D65136

BEARING

THRUST BEARING - handle

1шт.

53

195-541

WASHER,5/8", SAE

- flat, 5/8", plated

1шт.

54

D64863

WASHER

- special

1шт.

55

D64862

PIN

- adjuster

1шт.

56

N7915

CLIP

- cushion

1шт.

57

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

58

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

59

D64867

BUMPER

- front

2шт.

60

D64852

ADJUSTER

CROSS STRAP - seat

1шт.

61

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

62

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

63

195-2173

WASHER,3/8" x 1" x .180"

- spacer

8шт.

64

192-113

LOCK WASHER,1/2"

WASHER - external tooth lock, 1/2"

2шт.

65

D66332

BUSHING

SPACER - arm

2шт.

66

D66333

COVER

- arm channel

2шт.

67

D66334

STOP

- arm

2шт.

68

N9924

COVER

- arm, left-hand

1шт.

69

N9925

COVER

- arm, right-hand, not shown

1шт.

70

D66335

CHANNEL

- arm

2шт.

71

D66336

RETAINER

- screw

2шт.

72

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

CARRIAGE BOLT - 1/4" - 20 NC x 3/4"

4шт.

73

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

74

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

75

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

76

92-5

LOCK WASHER,5/16"

4шт.

77

N8683

CUSHION, SEAT

CUSHION - seat

1шт.

78

N8684

CUSHION ASSY.

CUSHION - back

1шт.
