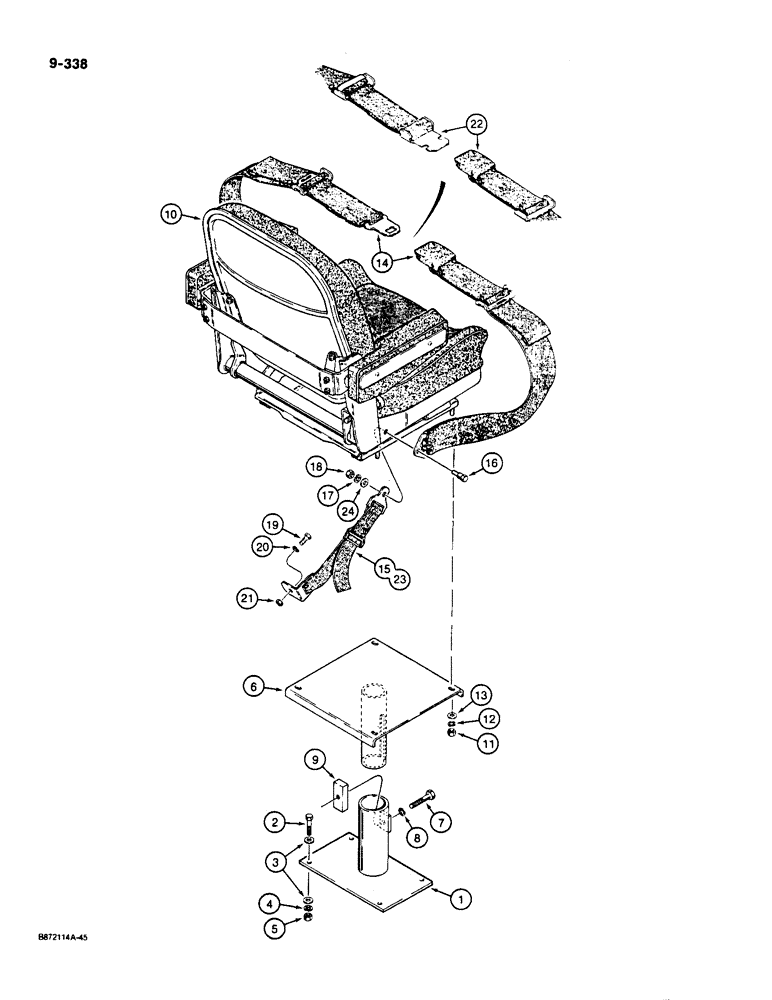

Запчасти Case W36 (9-338) - SEAT AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

L59942

BRACKET

SUPPORT - seat, lower

1шт.

2

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

195-104

WASHER,3/8"

- flat, , plated 3/8"

8шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

L59946

BRACKET

SUPPORT - seat, upper

1шт.

7

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

8

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

9

L59950

NUT

- special

1шт.

10

L112057

SEAT ASSY.

SEAT - suspension, vinyl, parts list Figures 9-340 and 9-342

1шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

4шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

495-21038

WASHER,5/16"

4шт.

L70502

SAFETY BELT

SAFETY BELT, 3" (76 mm) wide, Includes Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT BELT - operator retaining, 3" (76 mm) wide

1шт.

15

NSS

NOT SOLD SEPARAT

BELT - seat retaining

2шт.

16

F42236

STEP BOLT

BOLT - shoulder, special, 7/16" - 20 NF X 1-1/4"

2шт.

17

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

18

425-117

NUT,7/16"-20, G5

- hex, jam, 1/2" - 13 NC, zinc plated

2шт.

19

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

22

L117002

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide

1шт.

23

L78471

SAFETY BELT

SAFETY BELT, Seat retaining, Used on models with 2" seat belt

1шт.

24

495-21050

WASHER,7/16"

- flat, , plated 7/16"

2шт.
