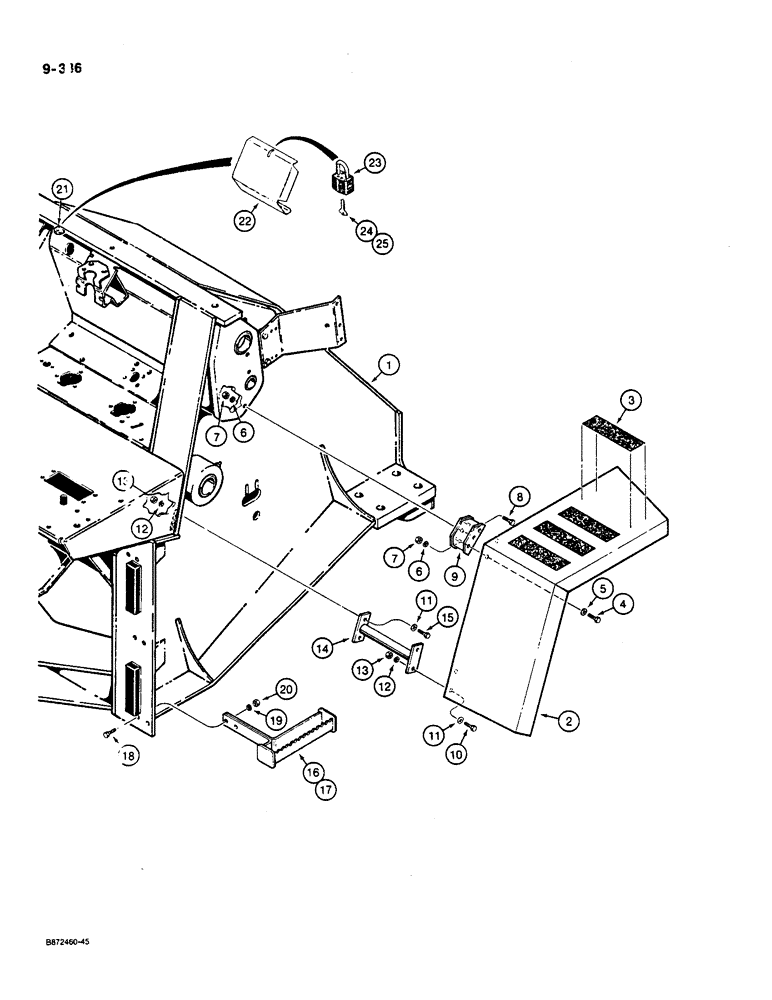

Запчасти Case W36 (9-336) - FRONT FENDERS, STEPS, AND LOCK-UP PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - front, for part number and bushings see Figure 9-334

1шт.

2

L70899

FENDER

- front

2шт.

3

D55216

PAD,2" x 9"

PAD - non-skid

8шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

195-106

WASHER,1/2"

- flat, , plated 1/2"

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

8

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

2шт.

9

L70897

SUPPORT

- fender, upper

2шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

11

195-106

WASHER,1/2"

- flat, , plated 1/2"

8шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

14

L70894

SUPPORT

- fender, lower

2шт.

15

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

16

L79770

STEP

- right-hand

3шт.

17

L79771

STEP

- left-hand

3шт.

18

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

12шт.

21

L74937

STRIP

BRACKET - instrument panel lock, weld on, canopy models only, if used

1шт.

22

L107672

COVER

- instrument panel, canopy models only, if used

1шт.

23

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 24 and 25

1шт.

24

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

25

R29555

KEY

- for Master padlock only, if used

2шт.
