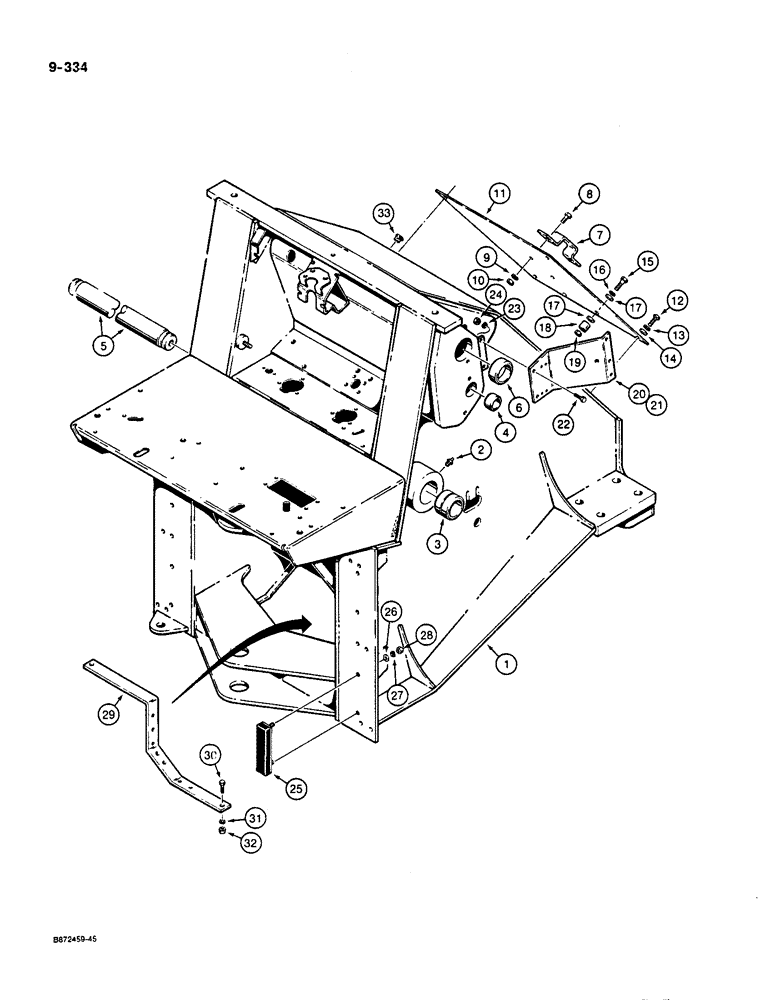

Запчасти Case W36 (9-334) - FRONT FRAME (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
E155857
CHASSIS
FRAME ASSEMBLY - front, Includes: Ref. 2 - 6
1шт.
2
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
2шт.
3
L70757
BUSHING
- 3-1/2" (89 mm) ID
2шт.
4
L72202
BUSHING
- 2-1/4" (57 mm) ID
2шт.
5
L70779
SHAFT
- lift cylinder
2шт.
6
L73528
BUSHING
- 3-1/2" (89 mm) ID
2шт.
7
L74944
HANDLE
- access cover, for service supply (1) A23725 handle, (2) 113-102 ^bolts, and (2) 192-20 lock washers
1шт.
8
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Use with L74944 handle Hex, 5/16"-18 x 1", G5, Full Thd
2шт.
9
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
2шт.
10
9635082
NUT,5/16" - 18, Gr 5
Use with L74944 handle 5/16"-18, G5
2шт.
11
L70751
PLATE
- access
1шт.
12
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
4шт.
13
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
14
195-106
WASHER,1/2"
- flat, , plated 1/2"
4шт.
15
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
16
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
17
195-104
WASHER,3/8"
- flat, , plated 3/8"
4шт.
18
A19774
BUSHING
RETAINER - access cover
2шт.
19
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
20
L117948
BRACKET
- lamp, right-hand
1шт.
21
L117949
BRACKET
- lamp, left-hand
1шт.
22
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
4шт.
23
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
24
129-105
NUT,Hex, 1/2" - 13, Gr 5
4шт.
25
L72573
BUMPER
- frame assembly
4шт.
26
195-104
WASHER,3/8"
- flat, , plated 3/8"
8шт.
27
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
28
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
8шт.
29
L78092
BRACKET
- hose support
1шт.
30
113-412
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
2шт.
31
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
32
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
33
353-414
PLUG,Dome, 1.375" Hole, Nylon
front chassis, used on models with two-spool loader control valve Dome, 1.375" hole, Nylon
2шт.
Выбрано товаров: 33
