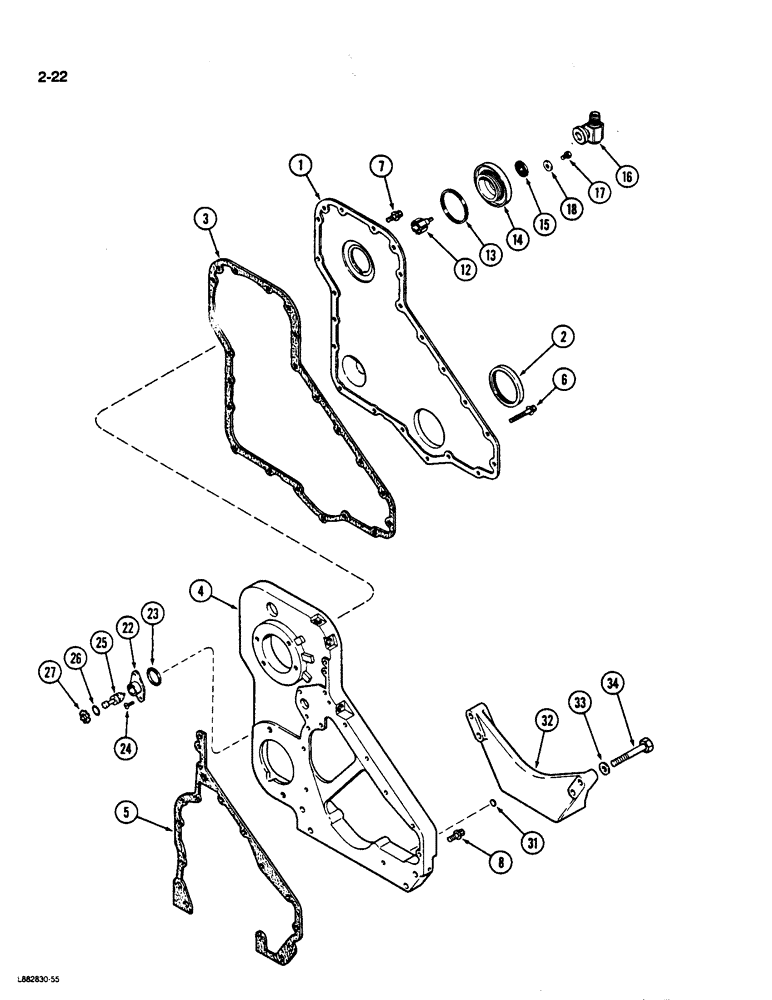

Запчасти Case W36 (2-22) - FRONT GEAR COVER, 6TA-830 ENGINE (02) - ENGINE

1

J911649

COVER ASSY

COVER - gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - oil (See Figure 2-43)

1шт.

3

J913431

GASKET

- cover, gear

1шт.

4

J915074

MOTOR HOUSING

HOUSING - gear (Replaces J911715)

1шт.

5

J914303

SEAL

GASKET - housing, gear (Replaces J907623)

1шт.

6

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

- hex flange, M8 x 50 mm

6шт.

7

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

16шт.

8

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

- hex flange, M8 x 20 mm

5шт.

12

E156475

HUB

- tachometer drive

1шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover

1шт.

14

J903476

COVER

- access hole

1шт.

15

J905218

GASKET

- tachometer drive

1шт.

16

J905217

FITTING

ADAPTER - drive

1шт.

17

J914370

SELF-TAP SCREW,M6 x 1 x 16mm

BOLT -, Serial Range: drive-adapter

2шт.

18

K651812

WASHER

- retaining

2шт.

22

J905933

HOUSING

- pin, timing

1шт.

23

J914092

O-RING

- pin housing (Replaces J906693)

1шт.

24

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

25

J903924

PIN,18.87mm OD x 55mm L

- timing

1шт.

26

J913994

O-RING

- sealing (Replaces J903927)

1шт.

27

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, 0.875", Int, #87

1шт.

J902116

FLANGE BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

BOLT - hex flange, M12 x 1.75 x 50 mm

4шт.

31

A77552

PLUG

- expansion, lower dowel hole, 29/64 inch diameter

1шт.

32

E156935

SUPPORT

- engine, front

1шт.

33

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, retaining

4шт.

34

J902451

FLANGE BOLT,Hvy Hex, M12 x 90mm, Cl 10.9

BOLT - support, retaining

4шт.
