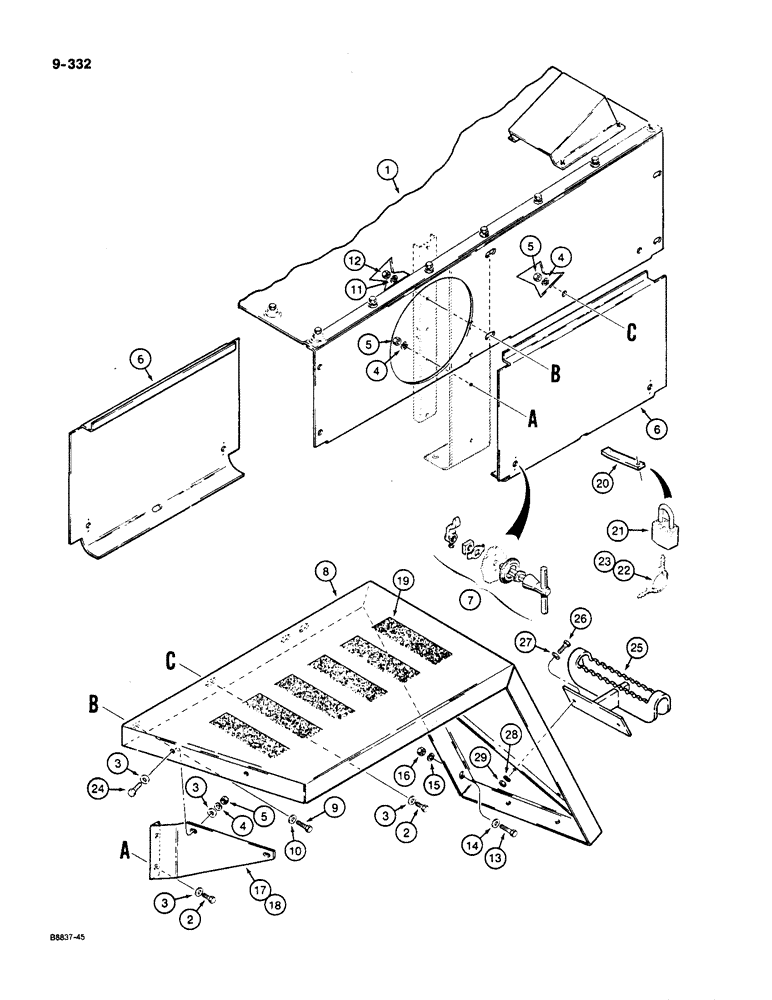

Запчасти Case W36 (9-332) - SIDE PANELS AND REAR FENDERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HOOD - engine, see Figure 9-329

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

195-106

WASHER,1/2"

- flat, , plated 1/2"

12шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

6

E66283

PANEL

- side

4шт.

7

L48438

HANDLE

LATCH - side panels

8шт.

8

E156365

FENDER

- rear

2шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

10

195-106

WASHER,1/2"

- flat, , plated 1/2"

2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

13

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

14

195-106

WASHER,1/2"

- flat, , plated 1/2"

4шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

17

L70888

BRACKET

- right-hand

1шт.

18

L70889

BRACKET

- left-hand

1шт.

19

D55216

PAD,2" x 9"

PAD - non skid

12шт.

20

L71624

STRIP

BRACKET - side panel lock, weld on, if used

4шт.

21

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 22 and 23

4шт.

22

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

23

R29555

KEY

- for Master padlock only, if used

2шт.

24

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

25

L110240

STEP

- rear fender, right-hand

1шт.

26

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

27

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
