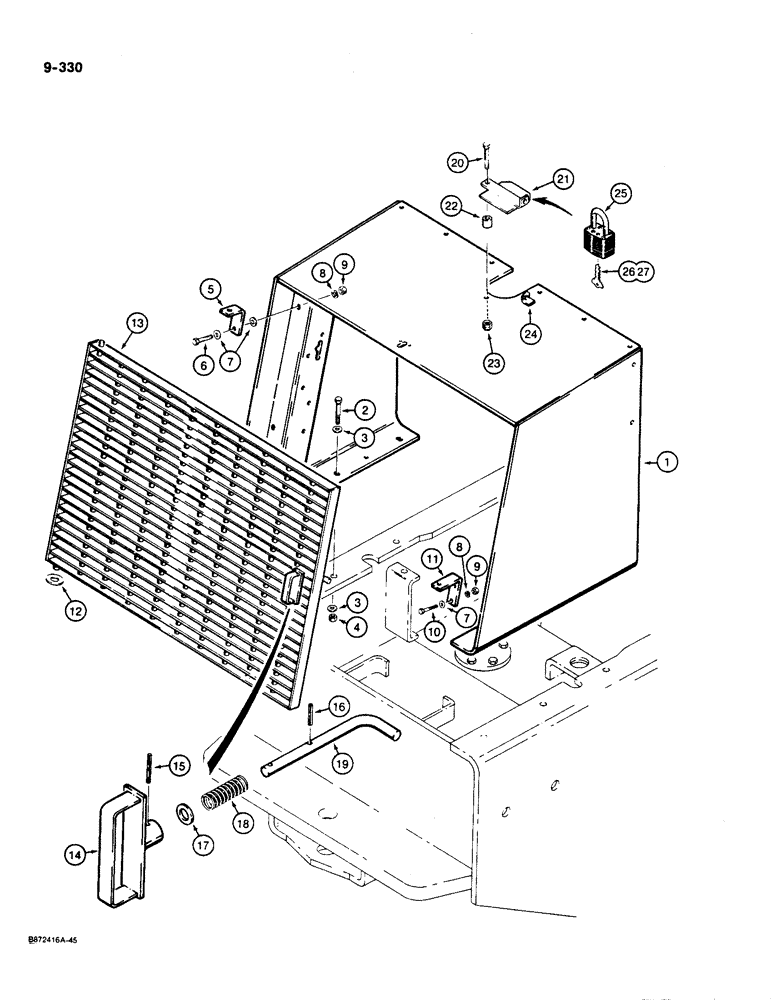

Запчасти Case W36 (9-330) - GRILLE AND RADIATOR GUARD (09) - CHASSIS/ATTACHMENTS

1

E156192

GUARD ASSY.

GUARD - radiator

1шт.

2

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4", plated

6шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

12шт.

4

129-107

NUT,5/8"-11, G5

6шт.

5

L48386

BRACKET

- upper

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

7

195-104

WASHER,3/8"

- flat, , plated 3/8"

6шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

L71189

SUPPORT

BRACKET - latch

1шт.

12

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

13

E155128

GRILLE

- radiator

1шт.

14

L73738

HANDLE

- latch

1шт.

15

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

16

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

18

L76665

SPRING

- latch

1шт.

19

L73742

ROD

- latch

1шт.

20

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

21

L71617

COVER

- locking, radiator guard

1шт.

22

E156842

SPACER

- cover

1шт.

23

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

24

E156266

BRACKET

- radiator cap lock, weld on

1шт.

25

D93753

PADLOCK

- includes keys, Includes: Ref. 26 and 27

1шт.

26

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

27

R29555

KEY

- for Master padlock only

2шт.
