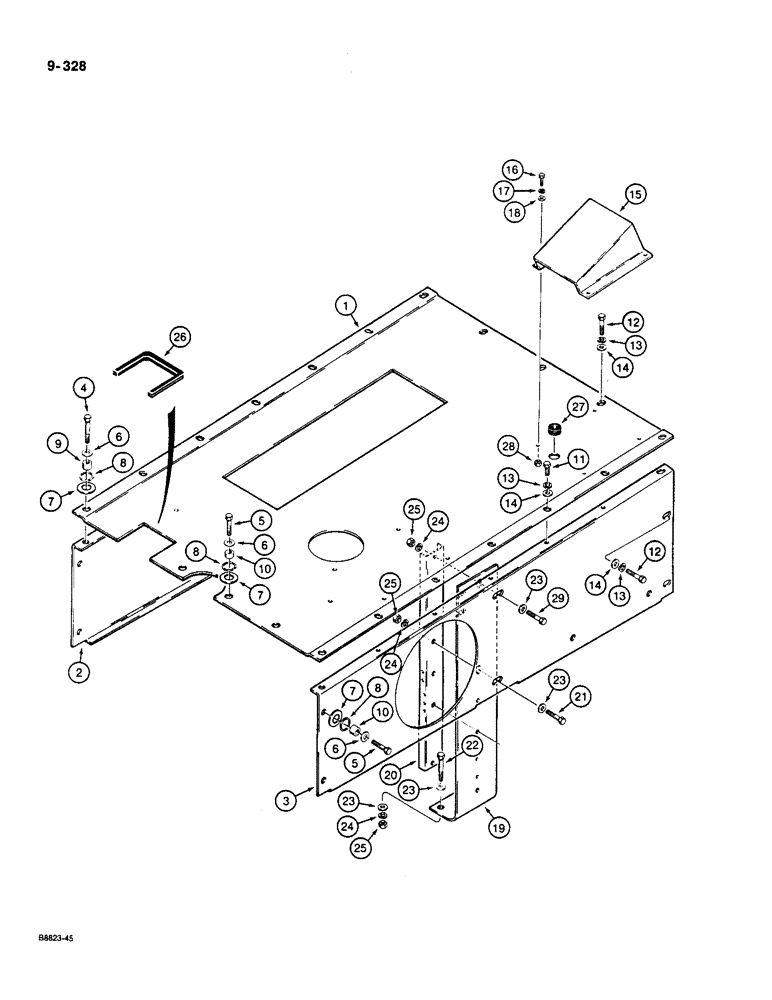

Запчасти Case W36 (9-328) - HOOD AND SUPPORT (09) - CHASSIS/ATTACHMENTS

1

E156372

TOP

HOOD - top

1шт.

2

E155925

HOOD

- left-hand

1шт.

3

E155926

HOOD

- right-hand

1шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

7шт.

6

195-104

WASHER,3/8"

- flat, , plated 3/8"

9шт.

7

195-108

WASHER,5/8"

- flat, , plated 5/8"

9шт.

8

R16171

SPRING WASHER

SPRING - washer

9шт.

9

S48529

SPACER

- top

2шт.

10

A30935

BUSHING

SPACER - top and side

7шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

9шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

19шт.

14

195-104

WASHER,3/8"

- flat, , plated 3/8"

19шт.

15

E96172

GUARD

SHROUD - tachometer

1шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

18

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

19

E156330

STEEL PLATE

POST - hood support

2шт.

20

L73906

REINFORCEMENT

STIFFENER - post

2шт.

21

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

22

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

23

195-106

WASHER,1/2"

- flat, , plated 1/2"

14шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

10шт.

26

D38500

LINING

TRIM - edge, 9-13/16" (249 mm) long, cut from F42827 bulk, see below

1шт.

27

A27519

GROMMET

- hood

1шт.

28

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

29

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116" (2946 mm) long

1шт.
