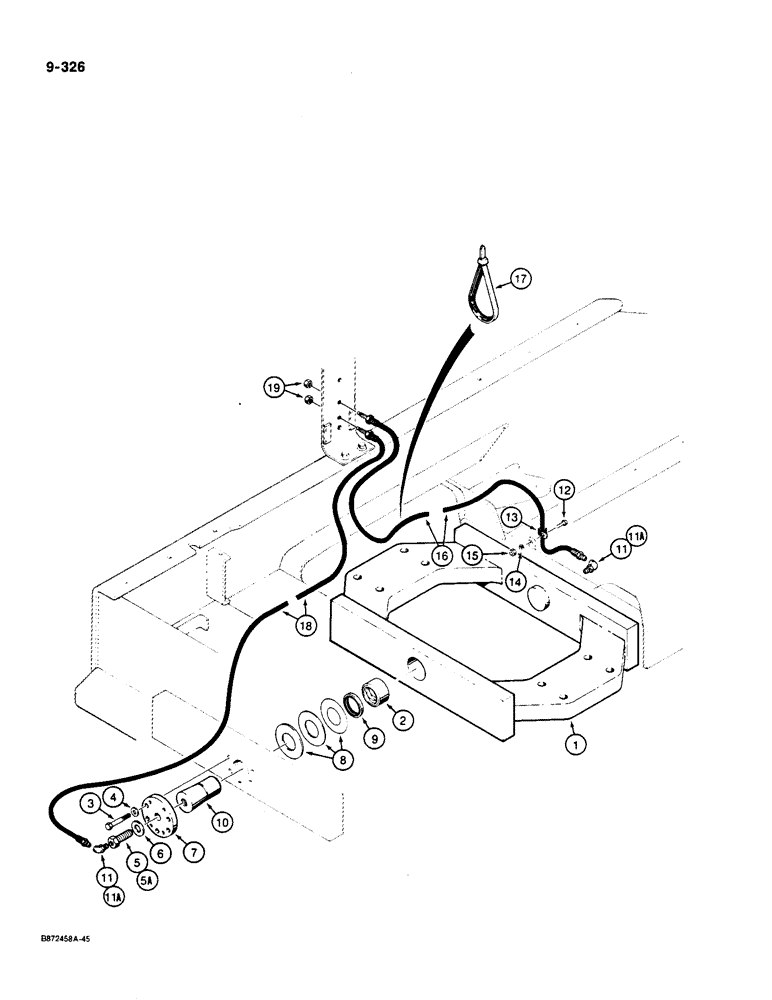

Запчасти Case W36 (9-326) - TRUNNION AND LUBRICATION LINES (09) - CHASSIS/ATTACHMENTS

1

E156772

ROCKER

TRUNNION - rear chassis, Includes: Ref. 2

1шт.

2

L73599

BUSHING

- trunnion

2шт.

3

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

10шт.

4

L54550

WASHER

- hardened

10шт.

5

L72351

BOLT

- hollow, hole size 1/4" - 28 NF, if used

2шт.

5a

E156855

BOLT

- hollow, hole size 7/16" - 20 NF, if used

2шт.

6

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

- hardened

2шт.

7

L78660

COVER PLATE

PLATE - pin

2шт.

8

L110183

SHIM,3.18mm Thk

- 3/16" (4.8 mm) thick

1шт.

8

L70236

BEARING WASHER

SHIM - 1/4" (6.4 mm) thick

1шт.

8

L70235

SHIM

- 5/16" (8.0 mm) thick

1шт.

9

D95148

WIPER SEAL

SEAL - pin

2шт.

10

L77373

PIN

- trunnion pivot

2шт.

11

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

ELBOW - 90 degree, use with Ref. 5, L72351 bolt

2шт.

11a

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

Adjustable, Use with Ref. 5A, E156855 bolt 90º, 7/16"-20 ORB x 1/8" NPT Fem

2шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

13

49859

CLAMP

- hose

1шт.

14

195-103

WASHER,5/16"

- lock, , plated 5/16"

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

1шт.

16

L72667

HOSE

AND FITTING - 60" (1524 mm) long, lubrication

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

L111706

HOSE

AND FITTING - 41" (1041 mm) long, lubrication

1шт.

19

F53473

LOCK NUT,1/8-27 NPSM

- lock

2шт.
