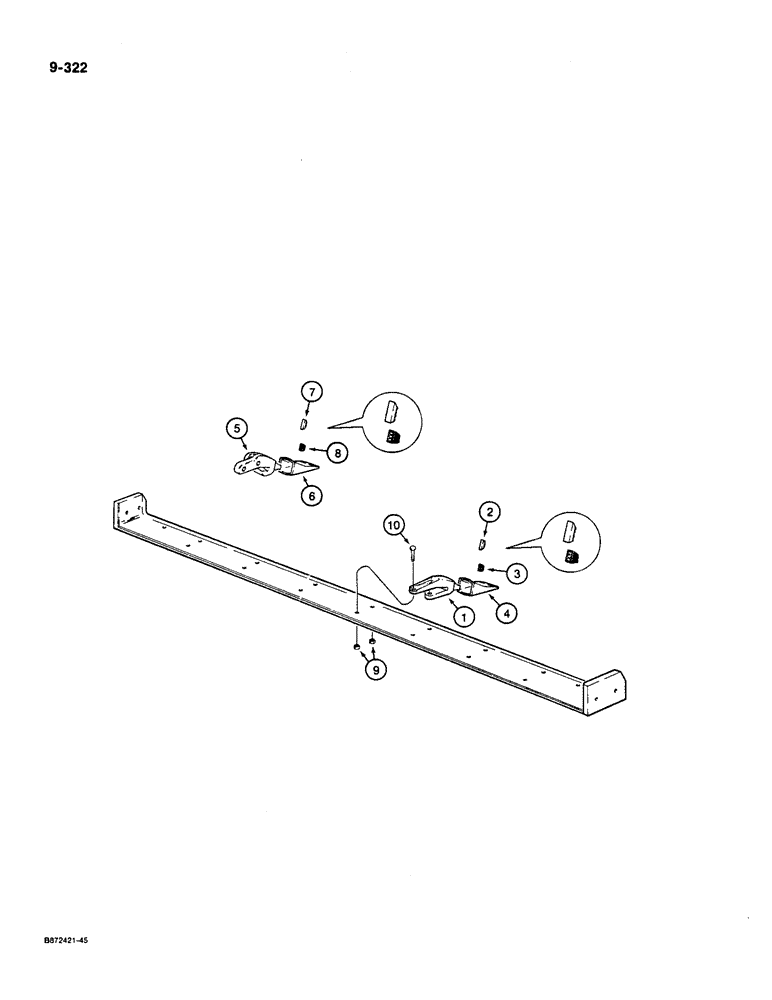

Запчасти Case W36 (9-322) - BUCKET TEETH (09) - CHASSIS/ATTACHMENTS

L105102

TOOTH

ASSEMBLY - bucket, 30 point, 30 is marked on tooth, Includes: Ref. 1 - 4

7шт.

1

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

2

R31916

PIN

- tooth

1шт.

3

R31917

KEY

LOCK - pin

1шт.

4

R31915

POINT

- tooth

1шт.

L106664

TOOTH

ASSEMBLY - bucket corner, right-hand, Includes: Ref. 5 - 8

1шт.

L106665

TOOTH

ASSEMBLY - bucket corner, left-hand, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

6

R31915

POINT

- tooth

1шт.

7

R31916

PIN

- tooth

1шт.

8

R31917

KEY

LOCK - pin

1шт.

9

129-108

NUT,3/4"-10, G5

18шт.

10

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex head, 3/4" - 10 NC x 3-1/4", plated

18шт.
