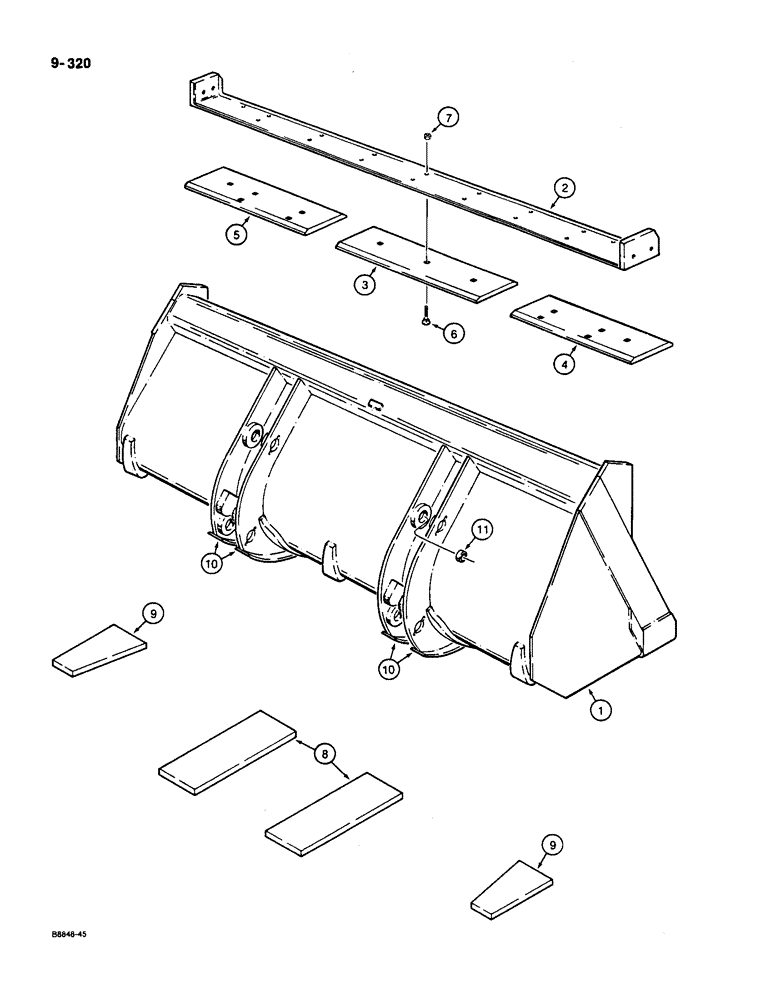

Запчасти Case W36 (9-320) - LOADER BUCKETS (09) - CHASSIS/ATTACHMENTS

L113256

BUCKET ASSEMBLY - loader, order from Machinery Price List, 3 1/2 cubic yard, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 3 1/2 cubic yard

1шт.

2

L112526

EDGE, CUTTING

PLATE - cutting edge, weld on, 3 1/2 cubic yard bucket

1шт.

3

L115724

EDGE, CUTTING

PLATE - cutting edge, center, bolt on, 3 1/2 cubic yard bucket

1шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

4

L115725

EDGE, CUTTING

PLATE - cutting edge, end, right-hand, bolt on, 3 1/2 cubic yard bucket

1шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

5

L118158

EDGE, CUTTING

PLATE - cutting edge, end, left-hand, bolt on, 3 1/2 cubic yard bucket

1шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

6

118-507

PLOW BOLT,3/4"-10 x 3 1/4", G8

BOLT - plow, 3/4" - 10 NC x 3-1/4", 3 1/2 cubic yard bucket

16шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

7

129-572

NUT,3/4"-10, G8

3 1/2 cubic yard bucket 3/4"-10, G8

16шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

8

L116323

PLATE

- skid, 3 1/2 cubic yard bucket

2шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

9

L116634

PLATE

- skid, outer, 3 1/2 cubic yard bucket

2шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

10

L72799

PLATE

- wear, 3 1/2 cubic yard bucket

2шт.

11

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- bucket, 3 1/2 cubic yard

8шт.

L105010

BUCKET ASSEMBLY - loader, long lip, order from Machinery Price List, 4 cubic yard, Includes: Ref. 1 and 2

1шт.

L112622

BUCKET ASSEMBLY - loader, order from Machinery Price List, 4 cubic yard, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 4 cubic yard

1шт.

2

L112526

EDGE, CUTTING

PLATE - cutting edge, weld on, 4 cubic yard bucket

1шт.

3

L115724

EDGE, CUTTING

PLATE - cutting edge, center, bolt on, 4 cubic yard bucket

1шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

4

L115725

EDGE, CUTTING

PLATE - cutting edge, end, right-hand, bolt on, 4 cubic yard bucket

1шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

5

L118158

EDGE, CUTTING

PLATE - cutting edge, end, left-hand, bolt on, 4 cubic yard bucket

1шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

6

118-507

PLOW BOLT,3/4"-10 x 3 1/4", G8

BOLT - plow, 3/4" - 10 NC x 3-1/4", 4 cubic yard bucket

16шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

7

129-572

NUT,3/4"-10, G8

4 cubic yard bucket 3/4"-10, G8

16шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

8

L116323

PLATE

- skid, 4 cubic yard bucket

2шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

9

L116634

PLATE

- skid, outer, 4 cubic yard bucket

2шт.

Part of cutting edge and skid plate kit P/N L36293.

1шт.

10

L72799

PLATE

- wear, 4 cubic yard bucket

2шт.

11

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- bucket, 4 cubic yard

8шт.

L36293

KIT - cutting edge and skid plates, Includes: Ref. 3 - 9, no longer available, for service order component parts, 4 cubic yard bucket

1шт.
