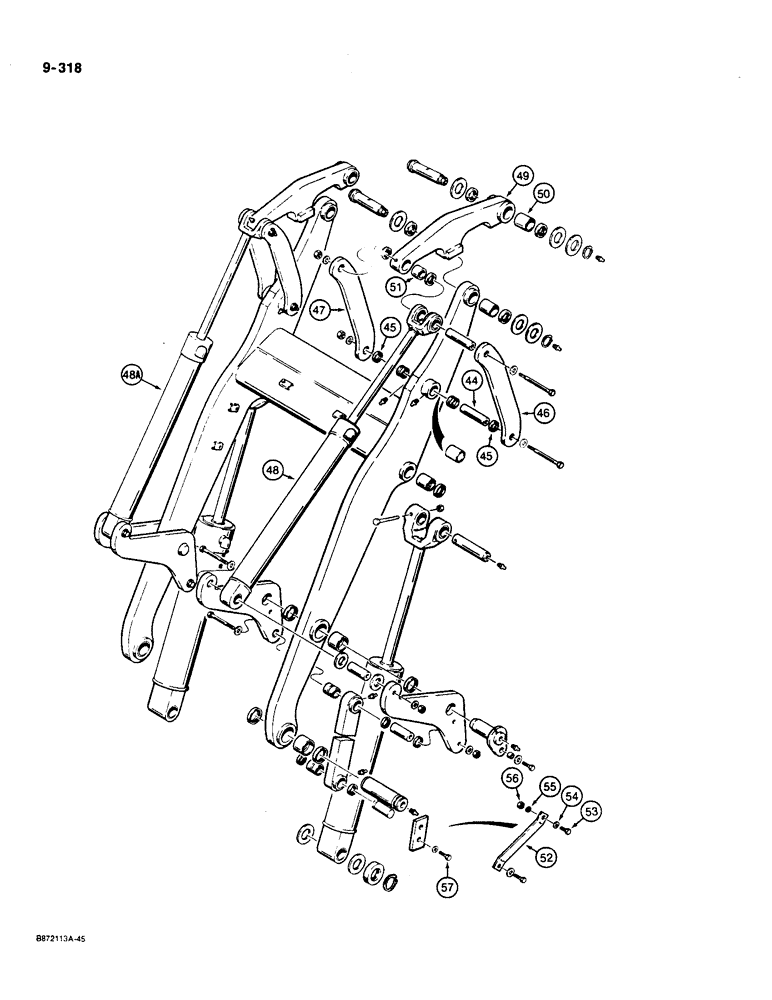

Запчасти Case W36 (9-318) - LOADER LIFT FRAME AND LINKAGE (09) - CHASSIS/ATTACHMENTS

44

L105142

PIN,50.8mm OD x 182.9mm L

- link to lift arm

2шт.

45

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

- pin

4шт.

46

L117013

LINK

- guide, right-hand arm, outer, left-hand arm, inner

2шт.

47

L117014

ARTICULATION

LINK - guide, left-hand arm, outer, right-hand arm, inner

2шт.

48

E156086

CYLINDER

- bucket tilt, right-hand, parts list Figure 8-282

1шт.

48a

E156087

CYLINDER

- bucket tilt, left-hand, parts list Figure 8-282

1шт.

49

E156041

ARTICULATION

LINK - bucket, Includes: Ref. 50 and 51

2шт.

50

L105211

BUSHING,63.7mm ID x 76.33mm OD x 76mm L

- 2-1/2" (64 mm) ID

1шт.

51

L105212

BUSHING,57.35mm ID x 69.98mm OD x 46mm L

- 2-1/4" (57 mm) ID

1шт.

52

L79569

SUPPORT

- lamp bracket

2шт.

53

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used with lamp bracket Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

54

195-106

WASHER,1/2"

- flat, , plated, used with lamp bracket 1/2"

2шт.

55

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used with lamp bracket 1/2"

2шт.

56

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used with lamp bracket 1/2"-13, G5

2шт.

57

26-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

2шт.
