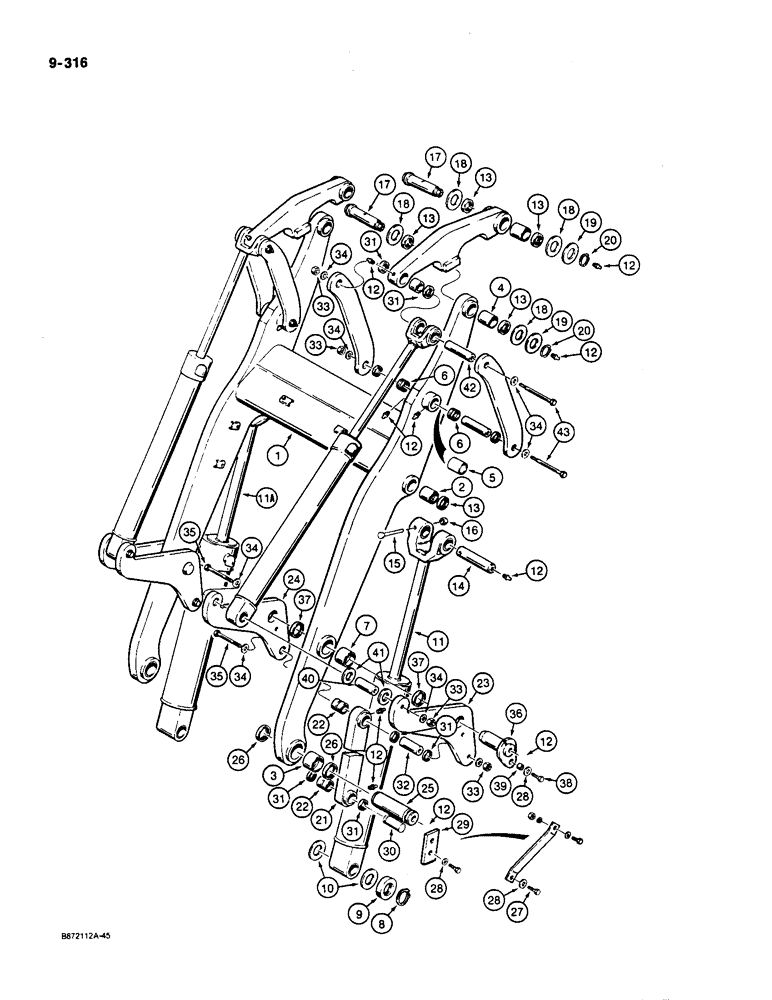

Запчасти Case W36 (9-316) - LOADER LIFT FRAME AND LINKAGE (09) - CHASSIS/ATTACHMENTS

1

L117096

ARM

FRAME ASSEMBLY - loader lift, Includes: Ref. 2 - 7

1шт.

2

L105214

BUSHING,63.7mm ID x 76.33mm OD x 71.1mm L

- 2-1/2" (64 mm) ID

2шт.

3

L70757

BUSHING

- 3-1/2" (89 mm) ID

2шт.

4

L105211

BUSHING,63.7mm ID x 76.33mm OD x 76mm L

- 2-1/2" (64 mm) ID

2шт.

5

L73513

SPACER

- bushing

2шт.

6

L50464

BUSHING

- 2" (51 mm) ID

4шт.

7

L104286

BUSHING

- 3" (76 mm) ID

2шт.

8

L73091

RING

SNAP RING - cylinder mounting

2шт.

9

L73170

WASHER

RETAINER - shim

2шт.

10

L76425

WASHER

SHIM - .112" (2.8 mm) thick

1шт.

11

E155976

CYLINDER

- lift, right-hand, see parts list Figure 8-280

1шт.

11a

E155977

CYLINDER

- lift, left-hand, see parts list Figure 8-280

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

20шт.

13

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

SEAL - pin

12шт.

14

L109584

PIN,63.5mm OD x 209.55mm L

- lift cylinder, rod end

2шт.

15

26-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

- hex head, 5/8" - 11 NC x 5-1/2"

2шт.

16

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

17

L124491

PIN,63.5mm OD x 230.38mm L

- bucket

4шт.

18

L77511

SHIM,64.26mm ID x 127mm OD x 1.8mm Thk

- 5/64" (2 mm) thick

1шт.

19

L105802

WASHER

- hardened, replaces A31261

4шт.

20

F40807

SNAP RING,#225, Ext

Ring, Snap, , bucket mounting pin #225, Ext

4шт.

21

L117178

LINK

- leveling, Includes: Ref. 22

2шт.

22

L117143

BUSHING,57.48mm ID x 69.98mm OD x 66.04mm L

- 2-1/4" (57 mm) ID

2шт.

23

L117077

LINK

BELLCRANK - right-hand arm, outer, left-hand arm, inner

2шт.

24

L117078

ARTICULATION

BELLCRANK - left-hand arm, outer, right-hand arm, inner

2шт.

25

L72222

PIN

- lift arm

2шт.

26

L70843

WIPER SEAL

SEAL - lift arm pin

4шт.

27

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex head, 3/4" - 10 NC x 1-3/4", grade 8

2шт.

28

L79179

WASHER

- hardened

4шт.

29

L73509

PLATE

- lock

2шт.

30

L72226

AXLE PIN

PIN - link

2шт.

31

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

- pin

12шт.

32

L117068

PIN,57.15mm OD x 129.54mm L

- bellcrank, lower

2шт.

33

25-1612

NUT,3/4"-10, G5, Hvy

- hex, heavy, 3/4" - 10 NC

8шт.

34

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

16шт.

35

26-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

- hex head, 3/4" - 10 NC x 7-1/2", grade 8

4шт.

36

L104347

PIN

- bellcrank

2шт.

37

D95148

WIPER SEAL

SEAL - bellcrank pin

4шт.

38

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

39

T25138

BUSHING

SPACER - bellcrank, lower

2шт.

40

L104342

PIN

- bellcrank, upper

2шт.

41

L104272

WASHER

SPACER - bellcrank, upper

4шт.

42

L105144

PIN,57.15mm OD x 182.9mm L

- bucket cylinder

2шт.

43

26-12152

BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 8

- hex head, 3/4" - 10 NC x 9-1/2", grade 8

4шт.
