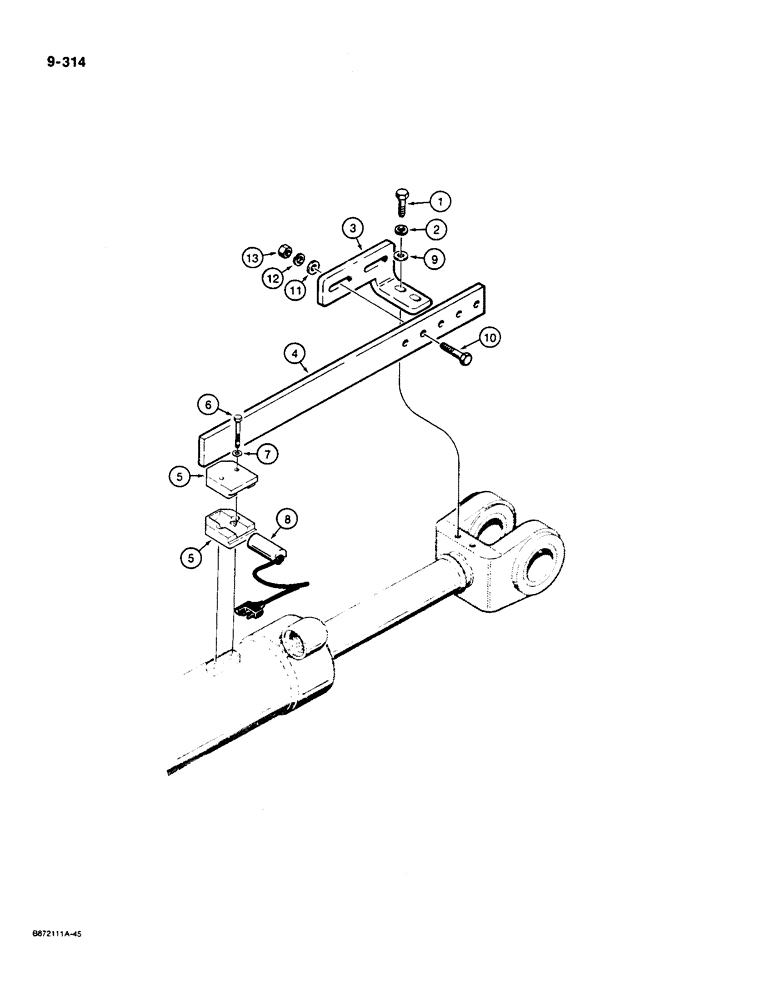

Запчасти Case W36 (9-314) - LOADER BUCKET RETURN-TO-DIG (09) - CHASSIS/ATTACHMENTS

1

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

E156960

SUPPORT ASSY.

BRACKET - return-to-dig

1шт.

4

E156282

BAR

- sensing, return-to-dig

1шт.

5

L117005

CLAMP

- switch

2шт.

6

L116975

BOLT

- special

2шт.

7

195-102

WASHER,1/4"

- flat, , plated 1/4"

2шт.

8

R47120

SWITCH

- proximity

1шт.

9

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 3/8", hardened

2шт.

10

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

11

R24718

WASHER

- flat, special

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
