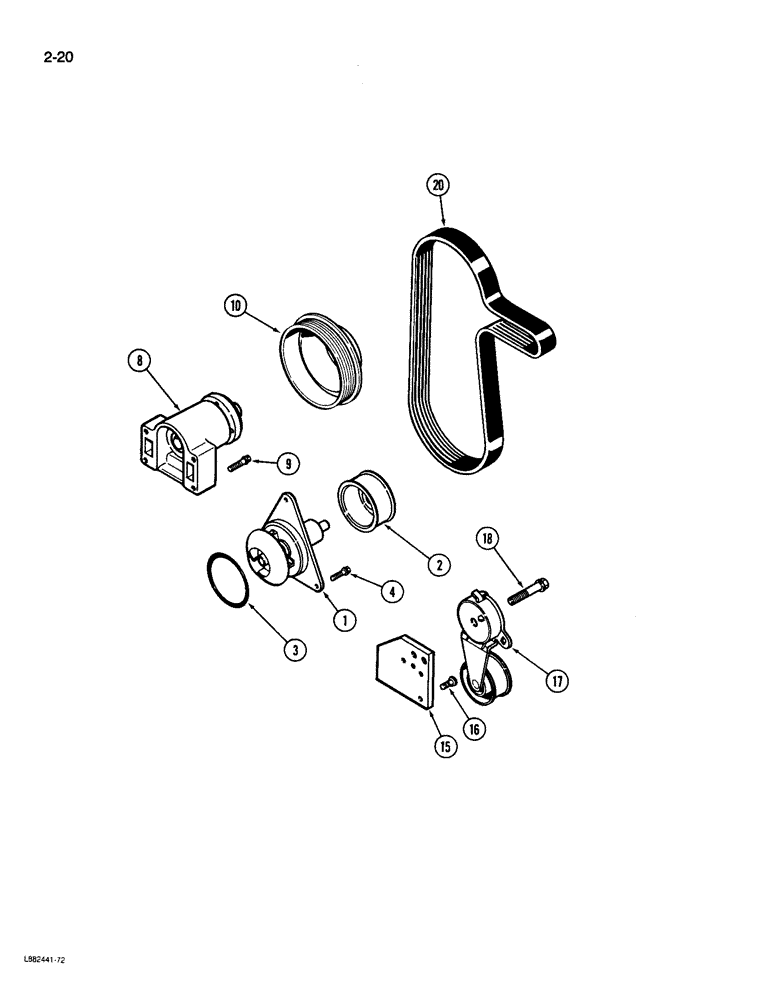

Запчасти Case W36 (2-20) - WATER PUMP SYSTEM, 6TA-830 ENGINE (02) - ENGINE

AR77579

PUMP, WATER

PUMP - water, remanufactured (North America Only)

1шт.

J800976R

REMAN-WATER PUMP

W36 6TA-830 ENGINE (S/N 17754000 & AFTER), Reman for New P/N AR77579

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

AC77579

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77579

PUMP, WATER

PUMP KIT - water, Includes: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

W36 6TA-830 ENGINE (S/N 17754000 & AFTER), Reman for New P/N A77579

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump (Order A77579)

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing pump

1шт.

4

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex flange, M8 x 25 mm

3шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

8

J910738

SUPPORT ASSY.

SUPPORT ASSEMBLY - fan

1шт.

9

J900633

BOLT,Hex Flg, M8 x 50mm, Cl 8.8

SCREW - hex flange head, 50 mm long

4шт.

10

J914462

PULLEY,163mm OD

- fan (Replaces J908447)

1шт.

15

J905937

BRACKET

- mounting, tensioner

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- mounting, bracket, 25 mm long

2шт.

17

J912246

BELT TENSIONER

TENSIONER ASSEMBLY - belt

1шт.

18

J905426

BOLT,Hex, M10 x 1.5 x 61.86mm

SCREW - mounting, tensioner, 61 mm long

1шт.

20

J903113

V-BELT,3.56 mm W x 1625.60 mm L, 8 Ribs

Fan 3.56 mm W x 1625.60 mm L, 8 Ribs

1шт.
