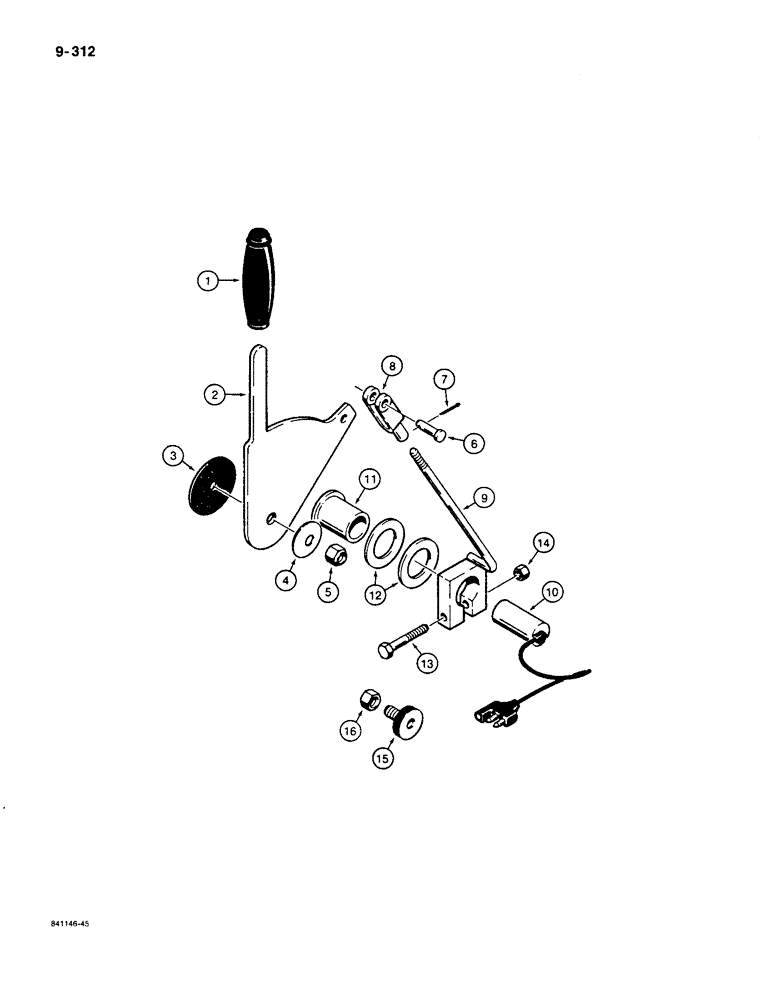

Запчасти Case W36 (9-312) - LOADER BUCKET HEIGHT CONTROL (09) - CHASSIS/ATTACHMENTS

1

L52477

GRIP

- height control lever

1шт.

2

L112439

LEVER

- height control

1шт.

3

D139323

FRICTION WASHER

DISC - friction

1шт.

4

R14771

WASHER

BELLEVILLE SPRING - lever

1шт.

5

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

6

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Lever 3/8" x 1.060"

1шт.

7

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable

1шт.

9

L115324

ROD

CLAMP - height control

1шт.

10

R47120

SWITCH

- proximity

1шт.

11

L115321

BUSHING,26.75mm ID x 32.51mm OD x 43mm L

- switch

1шт.

12

L115161

WASHER

- special

2шт.

13

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" - 20 NC x 2-1/4", plated

1шт.

14

131-664

LOCK NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC, plated

1шт.

15

L115576

SCREW,1/2" - 13 x 1"

SENSOR - height control switch

1шт.

16

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.
