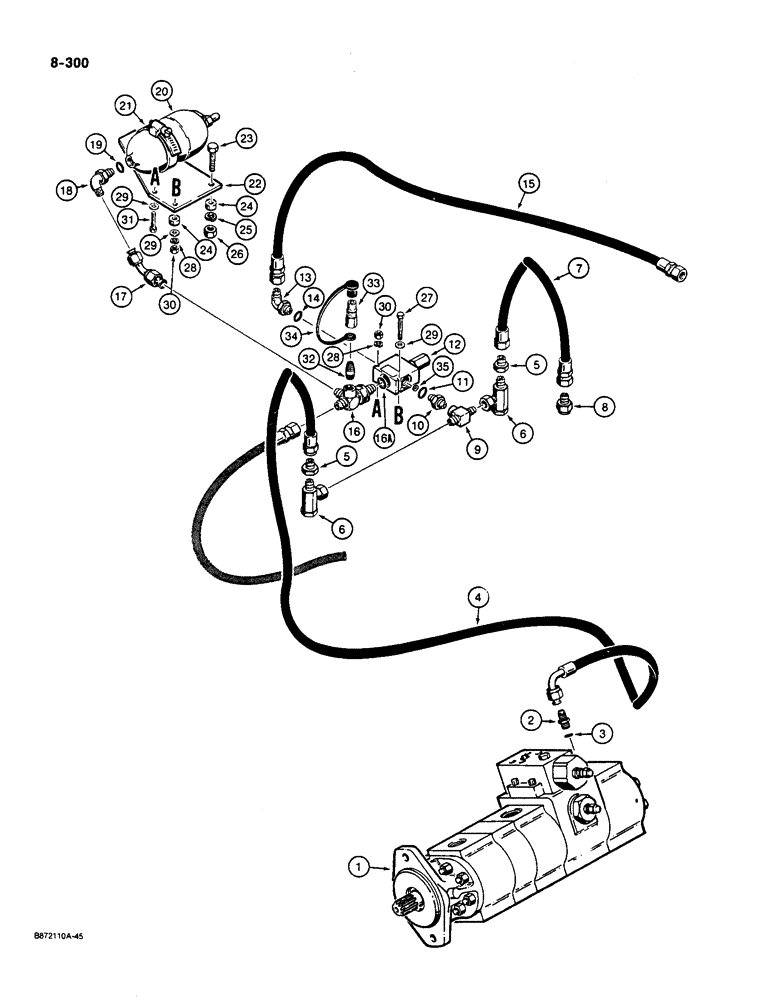

Запчасти Case W36 (8-300) - REMOTE LOADER CONTROL CIRCUIT, PUMP TO CONTROL VALVE WITH REMOTE HYDRAULICS (08) - HYDRAULICS

1

L72333

PUMP

- steering and loader hydraulics, parts list Figures 8-272 - 8-276

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 3

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

4

E156313

HOSE

- 99" (2515 mm) long, pump to control valve

1шт.

5

221-1086

REDUCER,3/8" NPT x 1/4" NPT

- 3/8" - 1/4" NPT

2шт.

6

L59038

LOCK VALVE

CHECK VALVE - remote hydraulics

2шт.

7

L102535

HOSE,0.38" ID x 21.00"

- 21" (533 mm) long, check valve to control valve

1шт.

8

218-1700

REDUCER,37 Degree, 1 5/16"-12, Fem x 3/4"-16 Male

- 1" x 1/2" NPT

1шт.

9

L103035

TEE

- special

1шт.

10

218-5440

FITTING

ADAPTER - straight, male, Includes: Ref. 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Aapter

1шт.

12

L101927

VALVE

- pressure reducing, parts list Figure 8-308

1шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

15

D64265

HOSE

- 15" (381 mm) long, accumulator return

1шт.

16

L106746

NIPPLE, LUBE

TEE - pressure reducing valve, Includes: Ref. 16A

1шт.

16a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Tee

1шт.

17

L101925

TUBE,0.5" OD x 2.94, 0.79" L

- accumulator to pressure reducing valve

1шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

20

L123768

TANK

ACCUMULATOR - parts list Figure 8-308

1шт.

21

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - accumulator

1шт.

22

L101926

SUPPORT ASSY.

BRACKET - accumulator

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

24

L78175

HUB

SPACER - bolt

3шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

27

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex head, 1/4" - 20 NC x 2-3/4", plated

1шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

29

195-102

WASHER,1/4"

- flat, , plated 1/4"

3шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

31

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

1шт.

32

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 1/4" NPT x 7/8", coupler

1шт.

33

S206607

DISC

COUPLER - male

1шт.

34

D123387

DUST CAP

COVER - dust

1шт.

35

L116330

DOOR STAY

ORIFICE - flow restrictor

1шт.
