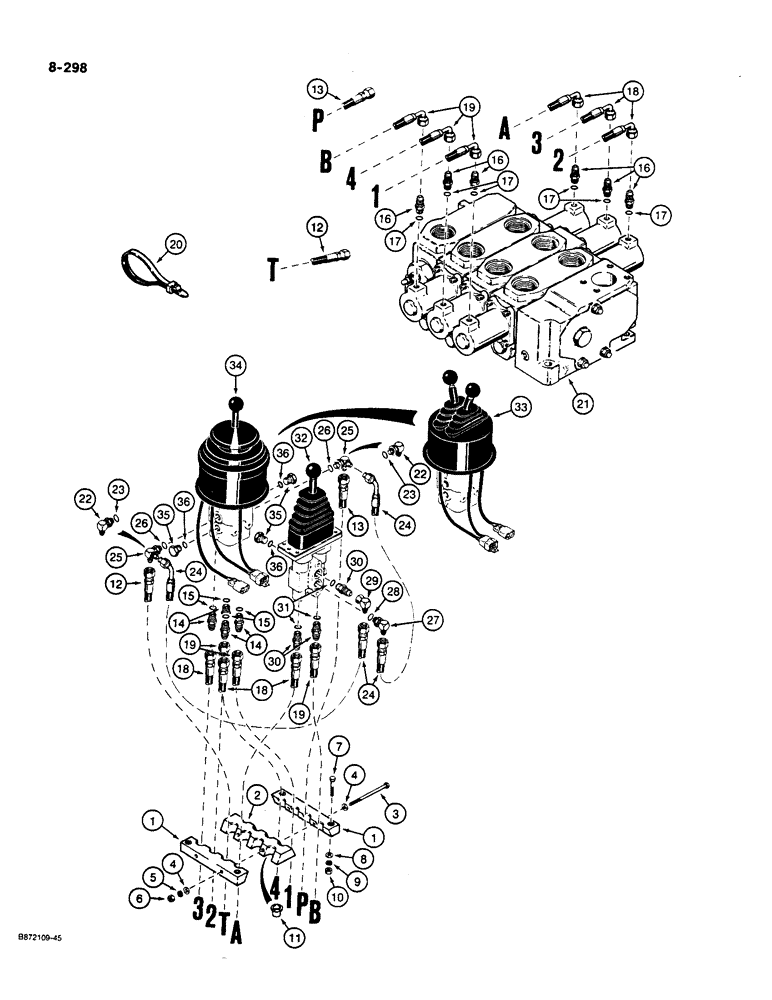

Запчасти Case W36 (8-298) - REMOTE LOADER CONTROL CIRCUIT, CONTROL VALVE, TO REMOTE VALVES (08) - HYDRAULICS

1

L104508

CLAMP

SEAL SUPPORT - hose, half

2шт.

2

L104309

CLAMP

SEAL SUPPORT - hose, full

1шт.

3

13-464

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex head, 1/4" - 20 NC x 4"

2шт.

4

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

7

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

8

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

11

353-16

PLUG,Cap, .848" OD

- seal support

2шт.

12

D87557

HOSE

- 61" (1550 mm) long, Serial Range: return-tank

1шт.

13

L102630

HOSE,0.38" ID x 77.00"

Reducer Valve to Remote Control Valve 0.38" ID x 77.00"

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 15

4шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

16

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 17

6шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

18

L101989

HOSE

- 76" (1930 mm) long, supply "B" ports from control valve

2-3шт.

19

L101988

PIPE

HOSE - 57" (1448 mm) long, supply "A" ports from control valve

2-3шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

21

REF

INSTRUCTION

VALVE - control, used with remote hydraulics, for correct assembly and components see Figure 8-284

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 2 spool valve only, Includes: Ref. 23

2шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

24

L124664

HOSE

- 19-5/8" (500 mm) long, to single lever remote valve

2шт.

25

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

ELBOW, 90, , Special, 3 spool valve only, Incl. Ref. 26 9/16"-18 x 9/16"-18 ORB

2шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Tee

1шт.

27

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- return hose, Includes: Ref. 28

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.

29

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree

1шт.

30

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, Incl. Ref. 31

3шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

32

L116443

VALVE

- remote, single lever, if used, Figure 8-302

1шт.

33

L118040

VALVE

- remote, dual lever, if used, Figure 8-304

1шт.

34

L123917

VALVE

- remote, single lever, auxiliary, if used, Figure 8-306

1шт.

35

76349

PLUG,9/16" - 18 ORB

Remote control valve, Incl. Ref 36 Hex Hd, 9/16"-18 ORB

3шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.
