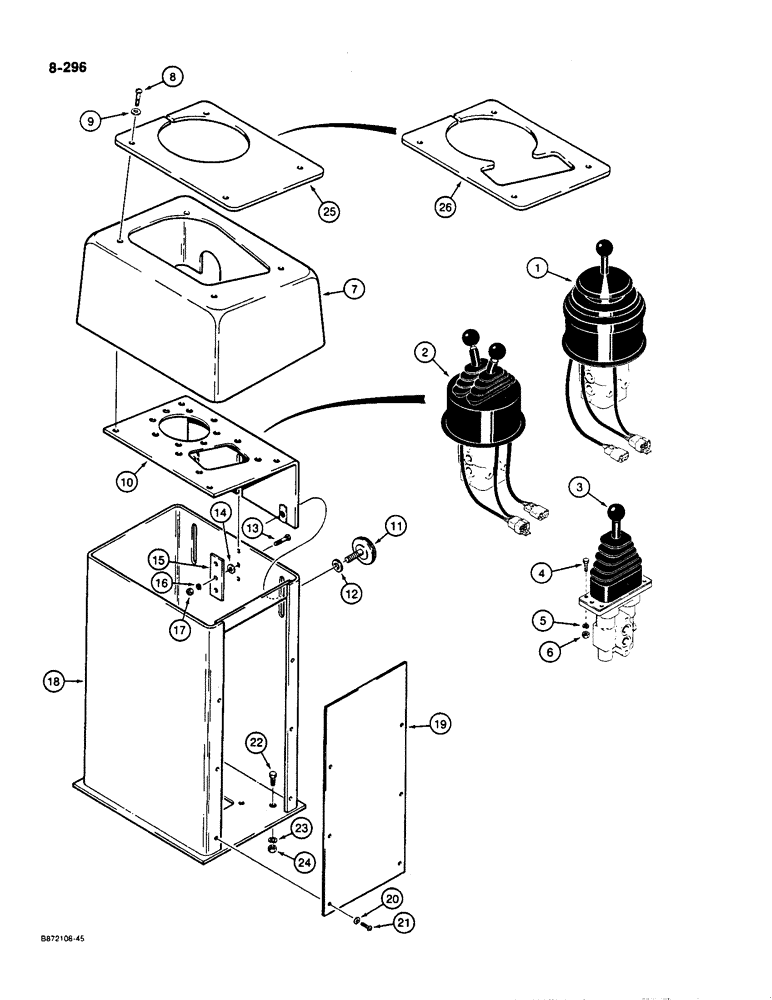

Запчасти Case W36 (8-296) - REMOTE LOADER CONTROL VALVES, AND CONTROL TOWER (08) - HYDRAULICS

1

L116443

VALVE

ASSEMBLY - single lever, two spool, parts list Figure 8-302

1шт.

2

L118040

VALVE

ASSEMBLY - dual lever, two spool, parts list Figure 8-304

1шт.

3

L123917

VALVE

ASSEMBLY - single lever, three spool, parts list Figure 8-306

1шт.

4

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

4-6шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4-6шт.

6

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

4-6шт.

7

E156280

COVER

CAP - control tower

1шт.

8

179-163

SCREW,Cross Oval Hd, #10 - 24 x 1"

- No. 10 - 24 NC x 1"

4шт.

9

F43576

WASHER

- special

4шт.

10

E156187

BRACKET

- hydraulic control tower

1шт.

11

L104103

KNOB

- console

2шт.

12

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

13

111-139

CARRIAGE BOLT,Short NK, 1/4"-20 x 1", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1", G2

3шт.

14

L104101

SPACER

- bracket

3шт.

15

L104102

COVER PLATE

PLATE - bracket

1шт.

16

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

17

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

3шт.

18

L104108

STEEL PLATE

TOWER - control console

1шт.

19

L104104

COVER

- console, outside

1шт.

20

F43576

WASHER

- special

6шт.

21

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, No. 10 - 16 NC x 3/4"

6шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

25

E156279

COVER

- used with dual lever

1шт.

26

E156292

COVER

- used with dual lever and single lever

1шт.
