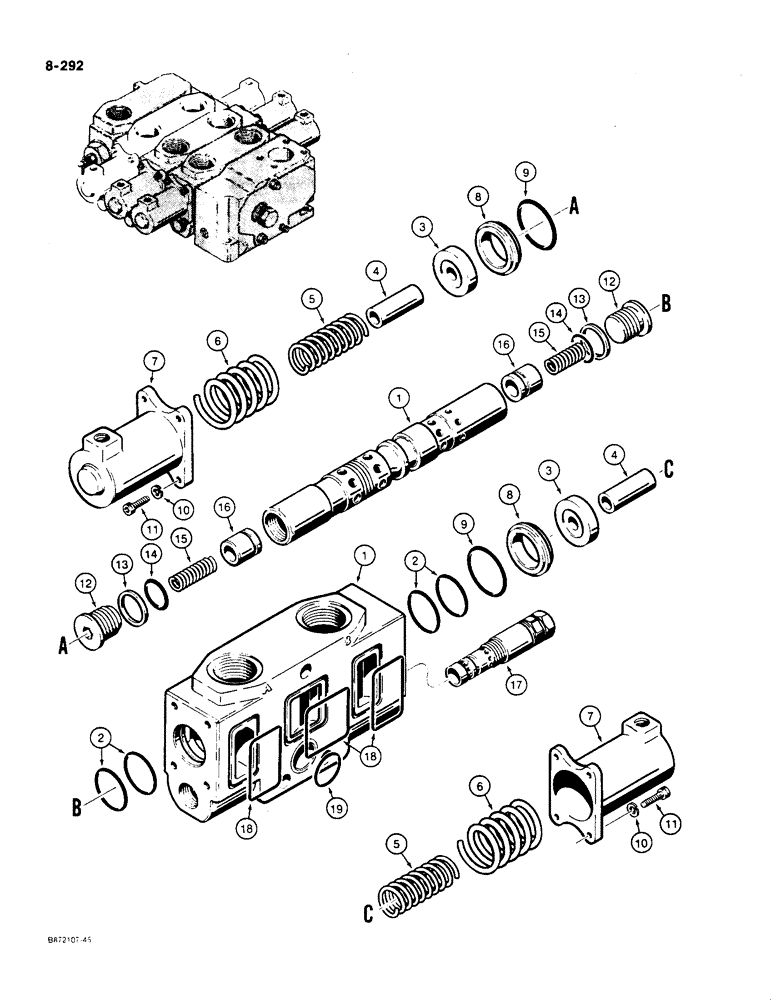

Запчасти Case W36 (8-292) - CONTROL VALVE - L104152 , LOADER AUXILIARY SECTION - L101990 (08) - HYDRAULICS

L101990

VALVE

CLAM SECTION ASSEMBLY - control valve, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL AND HOUSING - valve section

1шт.

2

D77421

OIL SEAL

BACKUP RING - spool seal

4шт.

3

L104951

LARGE PLATE

PLATE - spring retainer

2шт.

4

L102534

SLEEVE

- spacer

2шт.

5

L101986

SPRING

- remote, 2-5/8" long

2шт.

6

L101985

SPRING

- remote, 2-7/16" long

2шт.

7

L104584

COVER

CAP - end

2шт.

8

L105923

RETAINER

- seal, with 2.001" (50.83 mm) diameter O-ring groove

2шт.

9

L105925

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

- seal

2шт.

10

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head, 5/16" - 18 NC x 1"

8шт.

12

L101980

PLUG

- special

2шт.

13

D77420

RING

BACKUP RING - O-ring

2шт.

14

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- plug

2шт.

15

D77402

SPRING

- check, poppet

2шт.

16

D77401

VALVE POPPET

POPPET - single groove

2шт.

17

D59129

VALVE

- relief, parts list Figure 8-294

2шт.

18

D77399

SEAL,63.17mm ID x 68.26mm OD x 2.38mm Thk

- large

3шт.

19

D77400

SEAL,36.17mm ID x 41.27mm OD x 2.38mm Thk

- small

1шт.
