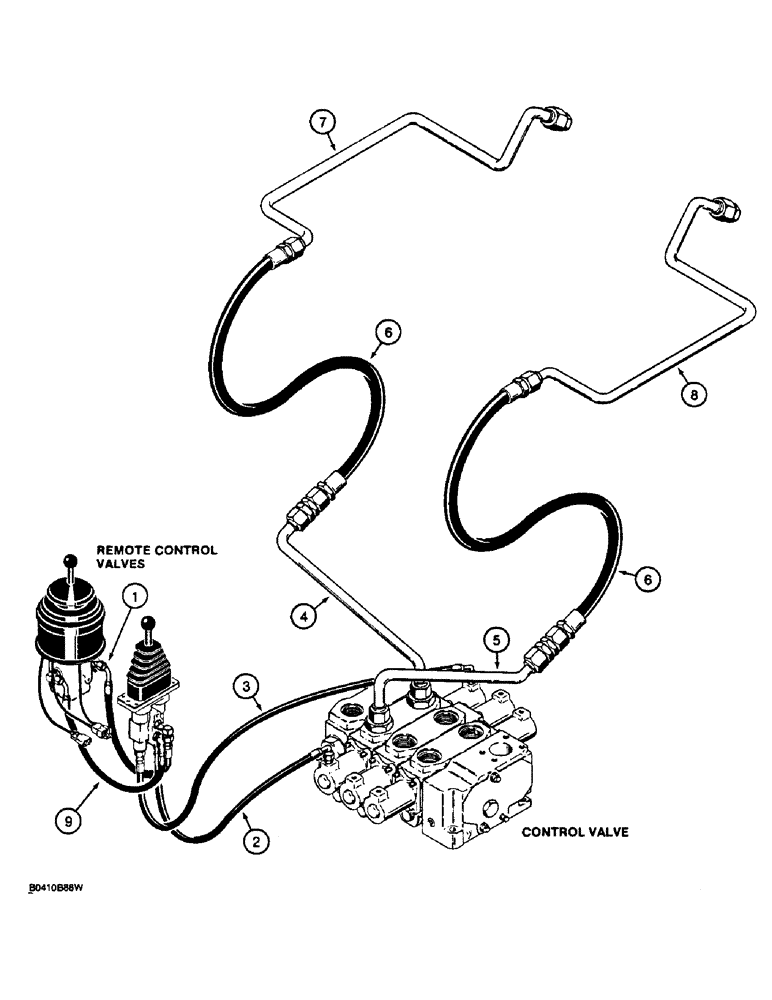

Запчасти Case W36 (1-16) - PICTORIAL INDEX, AUXILIARY HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hose from tee at lower front port on remote control valve at elbow at lower right-hand port of auxiliary remote control valve, Page 8-299

1шт.

2

Hose from front port of auxiliary remote control valve to rear port of control valve, Page 8-299

1шт.

3

Hose from rear port of auxiliary remote control valve to front port of control valve, Page 8-299

1шт.

4

Tube from front port of auxiliary section of loader control valve to left-hand hose, Page 8-271

1шт.

5

Tube from rear port of auxiliary section of loader control valve to right-hand hose, Page 8-271

1шт.

6

Hose from tube lines at auxiliary section of loader control valve to tube lines at bucket, see note below, Page 8-271

1шт.

7

Tube from left-hand hose to bucket, Page 8-271

1шт.

8

Tube from right-hand hose to bucket, Page 8-271

1шт.

9

Hose form elbow at upper right-hand port of auxiliary remote control to elbow at upper rear port on remote control valve, Page 8-299

1шт.
