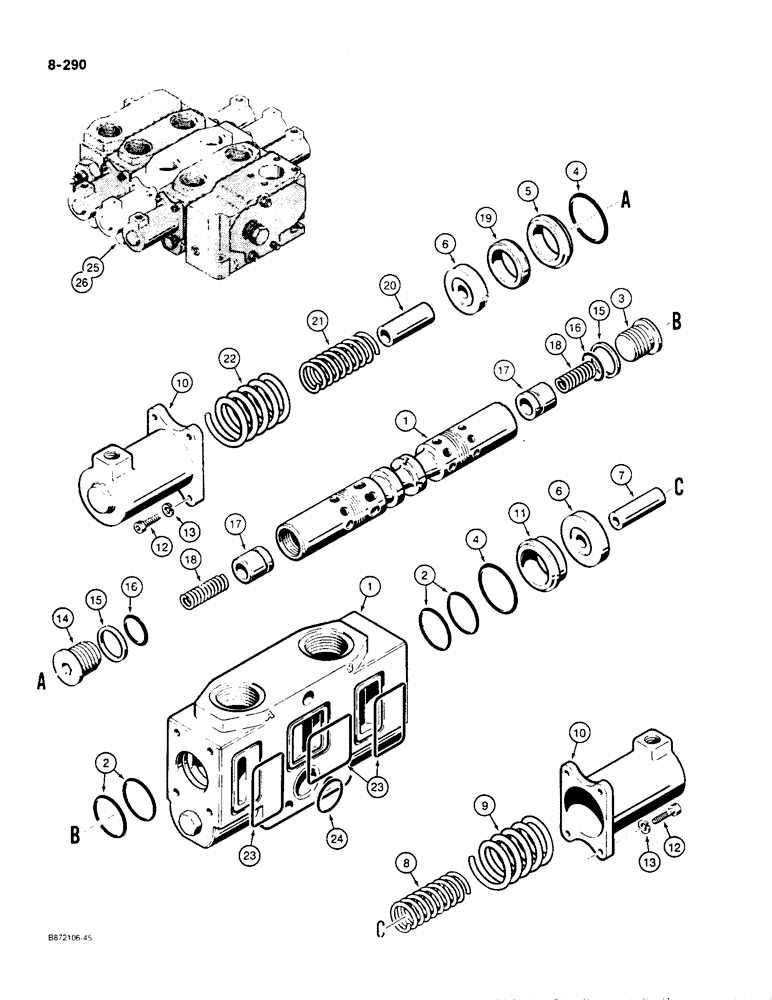

Запчасти Case W36 (8-290) - CONTROL VALVES - L104151 AND L104152, BUCKET SECTION - N6844 (08) - HYDRAULICS

N6844

SPOOL

BUCKET SECTION ASSEMBLY - control valve, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL AND HOUSING - valve section

1шт.

2

D77421

OIL SEAL

BACKUP RING - spool seal

4шт.

3

L101964

PLUG

- special

1шт.

4

L105925

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

- used with Refs. 5 and 11, L105923 and L105922 seal retainers

2шт.

5

L105923

RETAINER

- seal, with 2.001" (50.83 mm) diameter O-ring groove, uses Ref. 4, L105925 O-ring

1шт.

6

L104951

LARGE PLATE

PLATE - spring retainer

2шт.

7

L101962

SLEEVE

- spacer

1шт.

8

L104952

SPRING

- 3-5/8" long

1шт.

9

L105301

SPRING

- 3" long

1шт.

10

L104950

CAP

- section

2шт.

11

L105922

O-RING

RETAINER - seal, with 2.001" (50.83 mm) diameter O-ring groove, uses Ref. 4 L105925 Ref. 4 L105925 O-ring

1шт.

12

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head, 5/16" - 18 NC x 1"

8шт.

13

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

14

L101980

PLUG

- special

1шт.

15

D77420

RING

BACKUP RING - o-ring

2шт.

16

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- plug

2шт.

17

D77401

VALVE POPPET

POPPET - single groove

2шт.

18

D77402

SPRING

- check, poppet

2шт.

19

L101983

SPACER

- spring retainer

1шт.

20

L101963

SLEEVE

- spacer

1шт.

21

L101986

SPRING

- 2-13/16" long

1шт.

22

L101985

SPRING

- 2-7/16" long

1шт.

23

D77399

SEAL,63.17mm ID x 68.26mm OD x 2.38mm Thk

- large

3шт.

24

D77400

SEAL,36.17mm ID x 41.27mm OD x 2.38mm Thk

- small

1шт.

25

D59129

VALVE

- relief, parts list Figure 8-294

1шт.

26

D76991

VALVE

- relief, parts list Figure 8-294

1шт.
