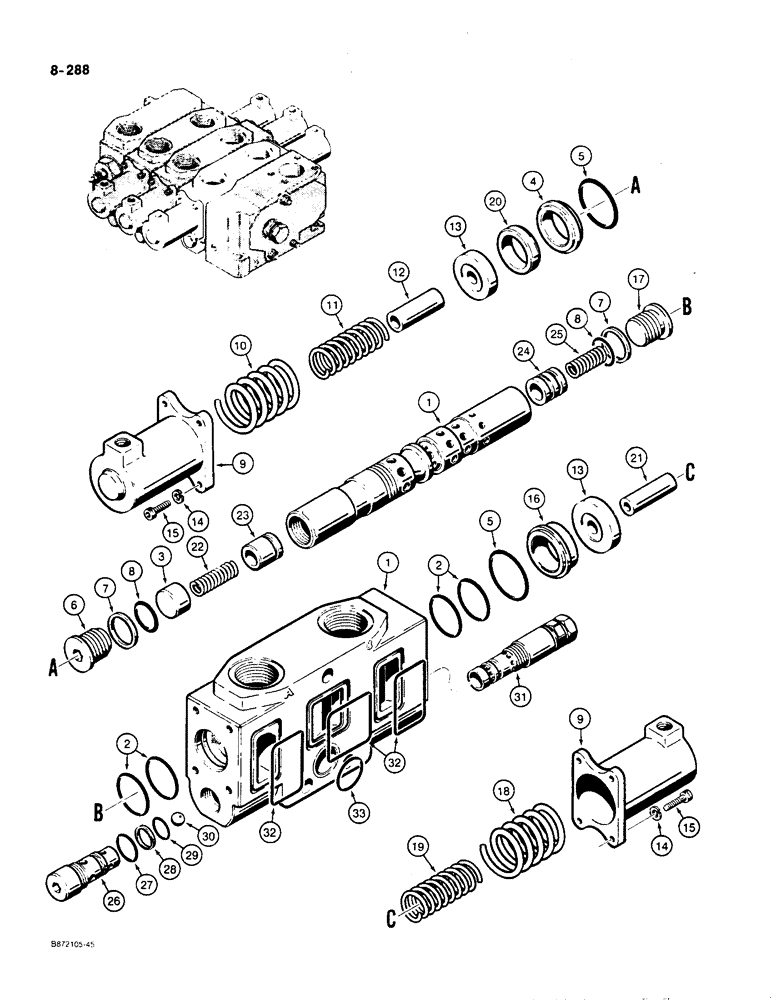

Запчасти Case W36 (8-288) - CONTROL VALVES - L104151 AND L104152, LIFT SECTION - N6845 (08) - HYDRAULICS

N6845

ELEMENT

LIFT SECTION ASSEMBLY - control valve, Includes: Ref. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve section

1шт.

2

D77421

OIL SEAL

BACKUP RING - spool seal

4шт.

3

D77423

WASHER

SPACER - spring

1шт.

4

L105923

RETAINER

- seal, with 2.001" (50.83 mm) diameter O-ring groove, uses Ref. 5, L105925 O-ring

1шт.

5

L105925

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

- used with Refs. 4 and 16, L105923 and L105922 seal retainers

2шт.

6

L101980

PLUG

- special

1шт.

7

D77420

RING

BACKUP RING - O-ring

2шт.

8

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- plug

2шт.

9

L104950

CAP

- spool end

2шт.

10

L101985

SPRING

- 2-7/16" long

1шт.

11

L101986

SPRING

- 2-13/16" long

1шт.

12

L101963

SLEEVE

- spacer

1шт.

13

L104951

LARGE PLATE

PLATE - spring retainer

2шт.

14

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

15

61-516

HEX SOC SCREW,5/16"-18 x 1"

SCREW - hex socket head, 5/16" - 18 NC x 1"

8шт.

16

L105922

O-RING

RETAINER - seal, with 2.001" (50.83 mm) diameter O-ring groove, uses Ref. 5, L105925 O-ring

1шт.

17

L101964

PLUG

- special

1шт.

18

L105301

SPRING

- 3" long

1шт.

19

L104952

SPRING

- 3-5/8" long

1шт.

20

L101983

SPACER

- spring retainer

1шт.

21

L101962

SLEEVE

- spacer

1шт.

22

D77402

SPRING

- poppet, fits in single groove poppet

1шт.

23

D77401

VALVE POPPET

POPPET - single groove

1шт.

24

D77242

PISTON

POPPET - double groove

1шт.

25

D77425

SPRING

- poppet, fits in double groove, poppet

1шт.

L33219

VALVE, CHECK

CHECK VALVE ASSEMBLY - lift section, Includes: Ref. 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

27

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- large

1шт.

28

L32619

RING

BACKUP RING - O-ring

1шт.

29

L32993

O-RING,40756" ID x 40756" OD x 1"

- small

1шт.

30

211-16

BALL

- steel, 11/16" diameter

1шт.

31

D76993

LOCK VALVE

RELIEF VALVE - parts list Figure 8-294

1шт.

32

D77399

SEAL,63.17mm ID x 68.26mm OD x 2.38mm Thk

- large

3шт.

33

D77400

SEAL,36.17mm ID x 41.27mm OD x 2.38mm Thk

- small

1шт.
