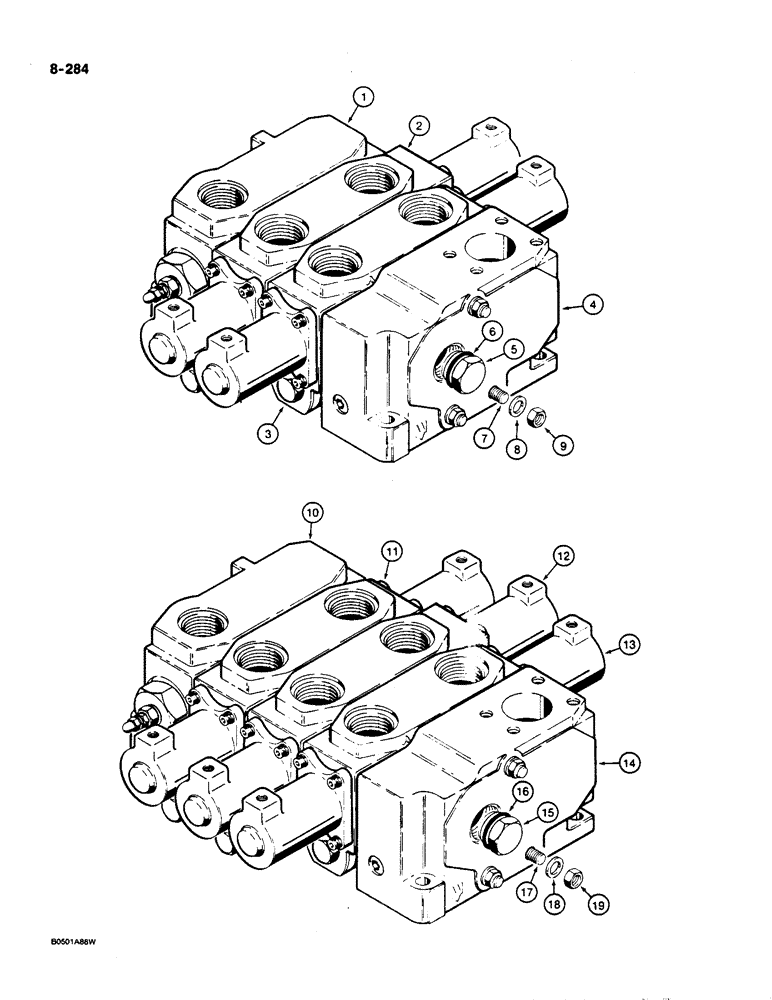

Запчасти Case W36 (8-284) - LOADER CONTROL VALVES,WITH REMOTE HYDRAULICS (08) - HYDRAULICS

L104151

VALVE

CONTROL VALVE ASSEMBLY - two spool, L104151, Includes: Ref. 1 - 9

1шт.

1

D76983

HYDRAULIC VALVE

INLET SECTION - parts list Figure 8-286, two spool loader control valve, L104151

1шт.

2

N6844

SPOOL

BUCKET SECTION - parts list Figure 8-290, two spool loader control valve, L104151

1шт.

3

N6845

ELEMENT

LIFT SECTION - parts list Figure 8-288, two spool loader control valve, L104151

1шт.

4

D76986

BLOCK

OUTLET SECTION - control valve, two spool loader, L104151, Includes: Ref. 5 and 6

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Two spool loader control valve, L104151, Includes: Ref. 6 Hex Hd, 1 1/16"-12 ORB

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug, two spool loader control valve, L104151

1шт.

7

D76988

STUD

- two spool valve, loader control, L104151

3шт.

8

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

- hardened, two spool loader control valve, L104151

6шт.

9

86625068

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, order 25-1010, two spool loader control valve, L104151

6шт.

L104152

VALVE

CONTROL VALVE ASSEMBLY - three spool, L104152, Includes: Ref. 10 - 19

1шт.

10

D76983

HYDRAULIC VALVE

INLET SECTION - parts list Figure 8-286, three spool loader control valve, L104152

1шт.

11

L101990

VALVE

AUXILIARY SECTION - parts list Figure 8-292, three spool loader control valve, L104152

1шт.

12

N6844

SPOOL

BUCKET SECTION - parts list Figure 8-290, three spool loader control valve, L104152

1шт.

13

N6845

ELEMENT

LIFT SECTION - parts list Figure 8-288, three spool loader control valve, L104152

1шт.

14

D76986

BLOCK

OUTLET SECTION - control valve, three spool loader, L104152, Includes: Ref. 15 and 16

1шт.

15

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Three spool loader control valve, L104152, Includes: Ref. 16 Hex Hd, 1 1/16"-12 ORB

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug, three spool loader control valve, L104152

1шт.

17

D76989

STUD

- three spool valve, three spool loader control, L104152

3шт.

18

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

- hardened, three spool loader control valve, L104152

6шт.

19

86625068

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, order 25-1010, three spool loader control valve, L104152

6шт.

L301357

VALVE

special feature, 4 spool, used for Harricana Grapple, three spool loader control valve, L104152

1шт.
