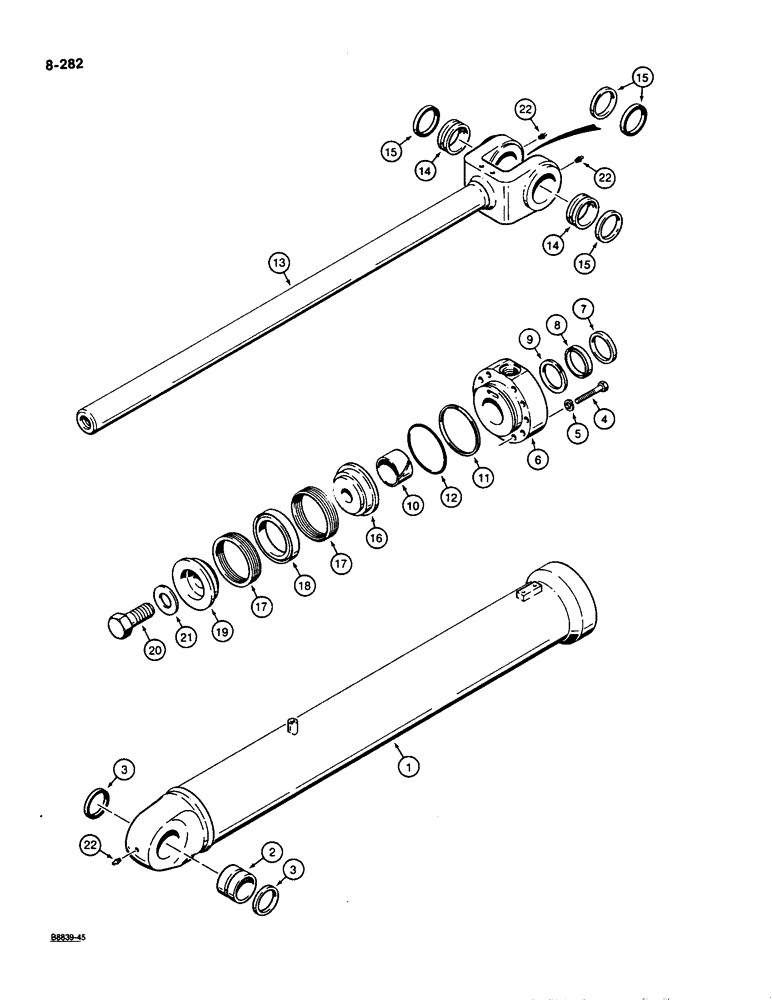

Запчасти Case W36 (8-282) - TILT CYLINDERS (08) - HYDRAULICS

E156086

CYLINDER

ASSEMBLY - tilt, 4-1/2" (114 mm) ID x 39-9/16" (1005 mm) stroke, right-hand, Includes: Ref. 1 - 22

1шт.

E156087

CYLINDER

ASSEMBLY - tilt, 4-1/2" (114 mm) ID x 39-9/16" (1005 mm) stroke, left-hand, not shown, Includes: Ref. 1 - 22

1шт.

1

E156088

TUBE,1186.7 mm L

- cylinder, right-hand, use with E156086

1шт.

1a

E156089

TUBE

- cylinder, left-hand, use with E156087, not shown, Includes: Ref. 2

1шт.

2

G100495

BUSHING,51.13mm ID x 63.63mm OD x 45.72mm L

- tube, use with E156088 or E156089

1шт.

3

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

- tube eye

2шт.

4

28-844

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 8

- hex head, 1/2" - 20 NF x 2-3/4", grade 8

10шт.

5

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

E155988

COVER

ASSEMBLY - cylinder, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of seal kit P/N E156012.

1шт.

8

E155309

SEAL

- piston rod

1шт.

Part of seal kit P/N E156012.

1шт.

9

G109086

RING

SEAL - buffer

1шт.

Part of seal kit P/N E156012.

1шт.

10

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of seal kit P/N E156012.

1шт.

11

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N E156012.

1шт.

12

A27842

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

- gland seal

1шт.

Part of seal kit P/N E156012.

1шт.

13

G102370

ROD

- 2-1/4" (57 mm) diameter

1шт.

14

L72199

BUSHING,57.48mm ID x 69.98mm OD x 22.86mm L

- rod clevis

2шт.

15

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

4шт.

16

D46425

PISTON

- rod end

1шт.

17

D47205

PACKING

ASSEMBLY - piston, V-type

2шт.

Part of seal kit P/N E156012.

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

19

D46931

PISTON

- bolt end

1шт.

20

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

21

G32351

WASHER

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

E156012

SEAL,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

KIT - seal, Includes: Ref. 7 - 12 and 17

1шт.
