(8-280) - LIFT CYLINDERS

Запчасти Case W36 (8-280) - LIFT CYLINDERS (08) - HYDRAULICS

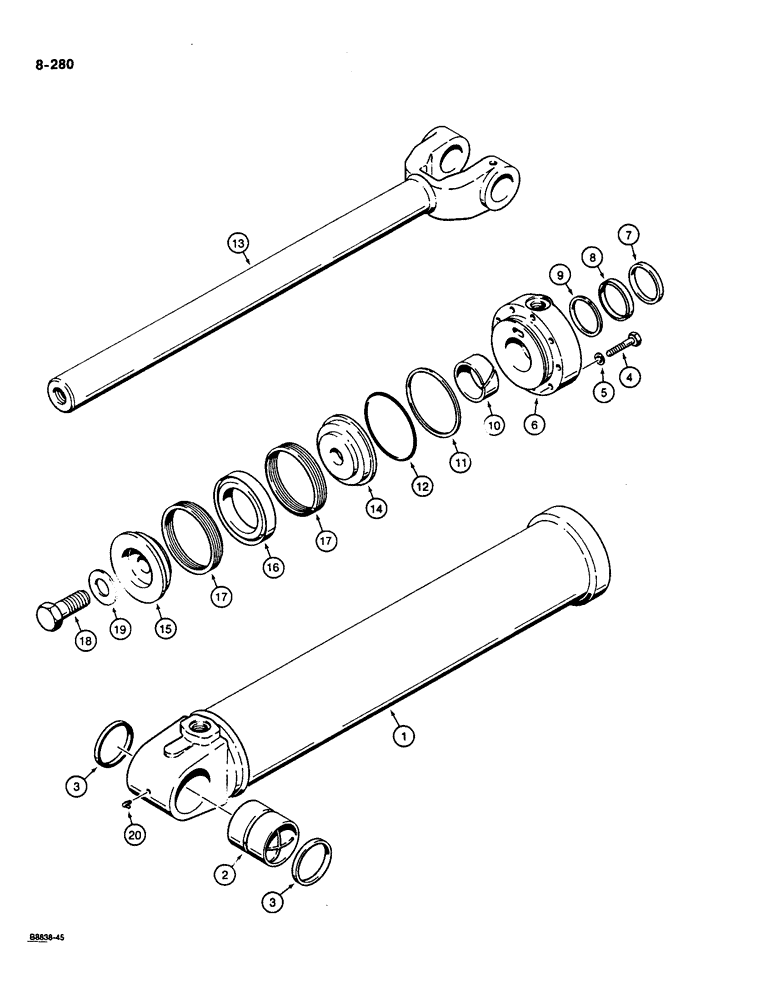

Схема запчастей Case W36 - (8-280) - LIFT CYLINDERS (08) - HYDRAULICS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

E155976

CYLINDER

ASSEMBLY - lift, 6" (152 mm) ID x 35-29/32" (912) stroke, right-hand, Includes: Ref. 1 - 20

1шт.

E155977

CYLINDER

ASSEMBLY - lift, 6" (152 mm) ID x 35-29/32" (912 mm) stroke, left-hand, not shown, Includes: Ref. 1 - 20

1шт.

1

E155978

CYLINDER ASSY.,1145.31 mm L

TUBE - cylinder, right-hand, use with E155976

1шт.

1a

E156229

CYLINDER ASSY.

TUBE - cylinder, left-hand, use with E155977, not shown, Includes: Ref. 2

1шт.

2

L73230

BUSHING

- tube, use with E155978 or E156229

1шт.

3

L70843

WIPER SEAL

SEAL - cylinder eye

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

- hex head, 9/16" - 18 NF x 2-3/4", grade 8

9шт.

5

E156233

WASHER

- special

9шт.

NLS

NO LONGER SERVICED

ASSEMBLY - cylinder, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

D95148

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N E156011.

1шт.

8

E155311

SEAL

- piston rod

1шт.

Part of seal kit P/N E156011.

1шт.

9

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

- buffer

1шт.

Part of seal kit P/N E156011.

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

- center

1шт.

Part of seal kit P/N E156011.

1шт.

11

E155975

RING

BACKUP RING - O-ring

1шт.

Part of seal kit P/N E156011.

1шт.

12

A27484

O-RING,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

- gland seal

1шт.

Part of seal kit P/N E156011.

1шт.

13

G105698

ROD

- 3" (76 mm) diameter

1шт.

14

D49317

PISTON ASSY.

PISTON - rod end

1шт.

15

D49318

PISTON

- bolt end

1шт.

16

D49320

RING

- center bearing

1шт.

17

D49321

PACKING

ASSEMBLY - piston, V-type

2шт.

Part of seal kit P/N E156011.

1шт.

18

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- hex head, 1-1/2" - 12 NF x 3-1/2", grade 8

1шт.

19

G104990

WASHER

- hardened

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

E156011

SEAL,0.139" Thk x 5.734" ID, -256, Cl 5, 75 Duro

KIT - seal, Includes: Ref. 7 - 12 and 17

1шт.
