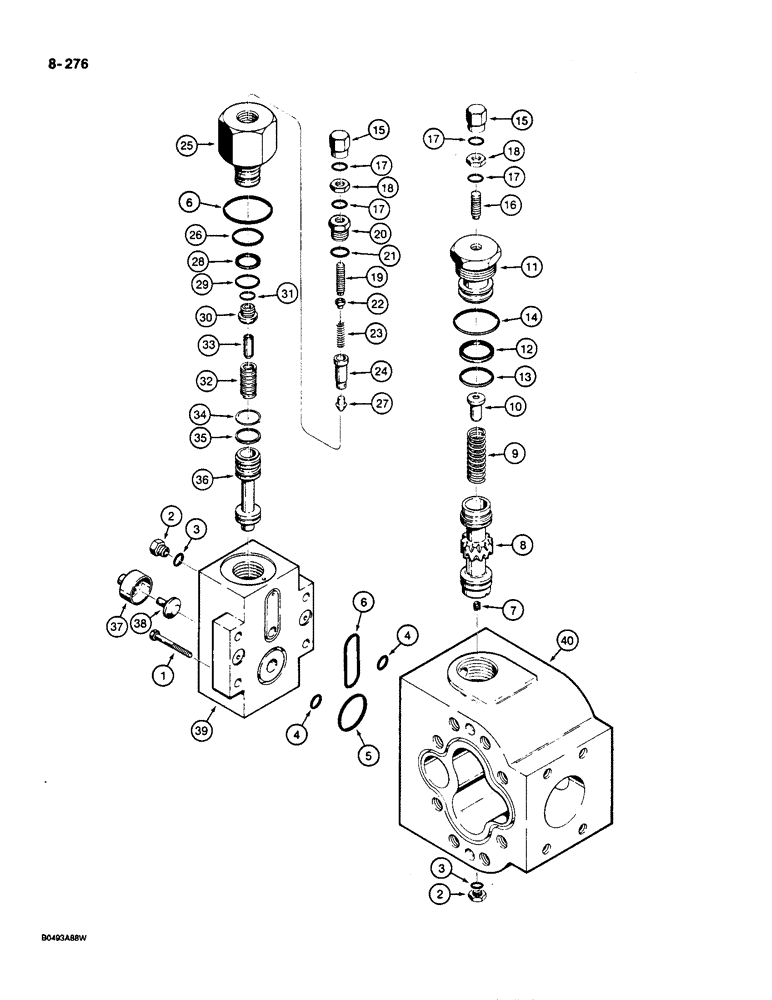

Запчасти Case W36 (8-276) - EQUIPMENT AND STEERING PUMP - L72333, UNLOADING VALVE AND PRIORITY VALVE (08) - HYDRAULICS

L72333

PUMP

ASSEMBLY - equipment and steering, parts list Figures 8-272 - 8-276, Includes: Ref. 1 - 40

1шт.

D77433

HYDRAULIC VALVE

REAR AND INLET SECTIONS - includes all parts on Figures 8-274 and 8-276, Includes: Ref. 1 - 40

1шт.

1

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

2

76349

PLUG,9/16" - 18 ORB

Incl. Ref 3 Hex Hd, 9/16"-18 ORB

3шт.

4

L33213

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

- seal

2шт.

5

D25858

O-RING

- seal

1шт.

6

D32127

O-RING

- seal

2шт.

7

D77447

SET SCREW

- special

1шт.

8

D77441

VALVE

SPOOL - priority valve

1шт.

9

D77443

SPRING

- priority valve

1шт.

10

D77448

PAD

GUIDE - spring

1шт.

11

D77442

PLUG

- priority valve

1шт.

12

D77453

OIL SEAL

BACKUP RING - o-ring

1шт.

13

D31442

RING

O-RING - small

1шт.

14

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

15

D53338

NUT

DOME NUT - set screw

2шт.

16

178-259

SET SCREW,Hex Soc, 3/8"-16 x 1"

- hex socket, 3/8" - 16 NC x 1"

1шт.

17

N8538

O-RING,0.426" ID x 0.566" OD x 0.07"

- seal

4шт.

18

D77445

LOCK NUT

NUT - lock

2шт.

19

176-168

SET SCREW,3/8"-16 x 1 1/2", Slotted

- slotted, 3/8" - 16 NC x 1-1/2"

1шт.

20

D77457

PLUG

- unloading valve

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Seal

1шт.

22

D53334

GUIDE

- spring

1шт.

23

D53333

VALVE SPRING

SPRING - plunger

1шт.

24

D77458

SPOOL

SLEEVE - spring

1шт.

25

D77456

PLUG

- unloading valve

1шт.

26

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug

1шт.

27

D53332

CONE

PLUNGER - pilot

1шт.

28

D77459

OIL SEAL

BACKUP RING - o-ring

1шт.

29

G34846

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

- plug

1шт.

30

D53339

PLUG

SEAT - plunger

1шт.

32

D77463

SPRING

- spool

1шт.

33

138-151

LOCK PIN,5/16" x 7/8", Slotted

PIN, 5/16" x 7/8", Slotted

1шт.

34

D77460

SNAP RING,#87, .922", Int, Spiral

RETAINING RING - backup ring

1шт.

35

D77462

OIL SEAL

BACKUP RING - spool

1шт.

36

D77455

SPOOL

- unloading valve

1шт.

37

D77449

RETAINER

- piston

1шт.

38

D77450

PISTON

- check valve

1шт.

39

D77454

VALVE

HOUSING - valve

1шт.

40

D77439

BODY

- inlet section

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Plug

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Seat

1шт.
