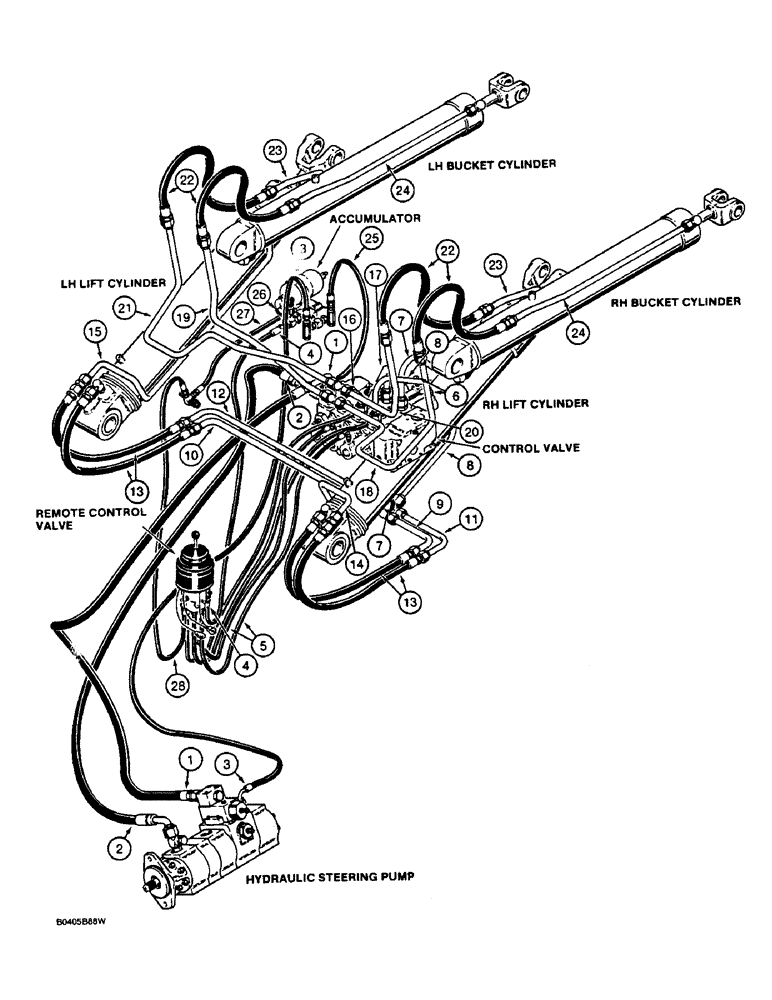

Запчасти Case W36 (1-14) - PICTORIAL INDEX, LOAD, LIFT, AND DUMP HYDRAULIC CIRCUIT, STEERING PUMP TO CYLINDERS (00) - PICTORIAL INDEX

1

Hose from steering pump to upper port on inlet section of control valve, Page 8-263

1шт.

2

Hose from steering pump to tee at left-hand side port on inlet section of control valve, Page 8-263

1шт.

3

Hose from steering pump to rear check valve at pressure reducing valve, Page 8-301

1шт.

4

Hose from tee at rear port of pressure reducing valve to lower port on front of remote control valve, Page 8-299

1шт.

5

Hose from front ports of remote control valve to rear ports of control valve, Page 8-299

1шт.

6

Hose from rear ports of remote control valve to front ports of control valve, Page 8-299

1шт.

7

Tube from front port of lift section of loader control valve to head end of lift cylinder from valve to tee, Page 8-267

1шт.

8

Tube from rear port of lift section of loader control valve to rod end of lift cylinder from valve to tee, Page 8-267

1шт.

9

Tube to right-hand lift cylinder from tee to hose at head end of cylinder, Page 8-267

1шт.

10

Tube to left-hand lift cylinder from tee to hose at head end of cylinder, Page 8-267

1шт.

11

Tube to right-hand lift cylinder from tee to hose at rod end of cylinder, Page 8-267

1шт.

12

Tube to left-hand lift cylinder from tee to hose at rod end of cylinder, Page 8-267

1шт.

13

Hose from hydraulic control valve tubes to lift cylinder, Page 8-267

1шт.

14

Tube attached to right-hand lift cylinder, Page 8-267

1шт.

15

Tube attached to left-hand lift cylinder, Page 8-267

1шт.

16

Tube from rear port of bucket section of loader control valve to head end of bucket cylinder from valve to tee, Page 8-269

1шт.

17

Tube from fornt port of bucket section of loader control valve to rod end of bucket cylinder from valve to tee, Page 8-269

1шт.

18

Tube to right-hand bucket cylinder from tee to hose at head end of cylinder, Page 8-269

1шт.

19

Tube to left-hand bucket cylinder from tee to hose at head end of cylinder, Page 8-269

1шт.

20

Tube to right-hand bucket cylinder from tee to hose at rod end of cylinder, Page 8-269

1шт.

21

Tube to left-hand bucket cylinder from tee to hose at rod end of cylinder, Page 8-269

1шт.

22

Hose from hydraulic control valve tubes to bucket cylinders, Page 8-269

1шт.

23

Tube to bucket cylinders from hose to head end of cylinder, Page 8-269

1шт.

24

Tube to bucket cylinders from hose to rod end of cylinder, Page 8-269

1шт.

25

Hose from tee on inlet section of loader control valve to front check valve to pressure reducing valve, Page 8-301

1шт.

26

Tube from elbow at accumulator to tee at rear of pressure reducing valve, Page 8-301

1шт.

27

Hose from elbow at port on left-hand side of pressure reducing valve to connector at steering valve, Page 8-301

1шт.

28

Hose from tee at upper rear port of remote control valve to steering valve, Page 8-299

1шт.
