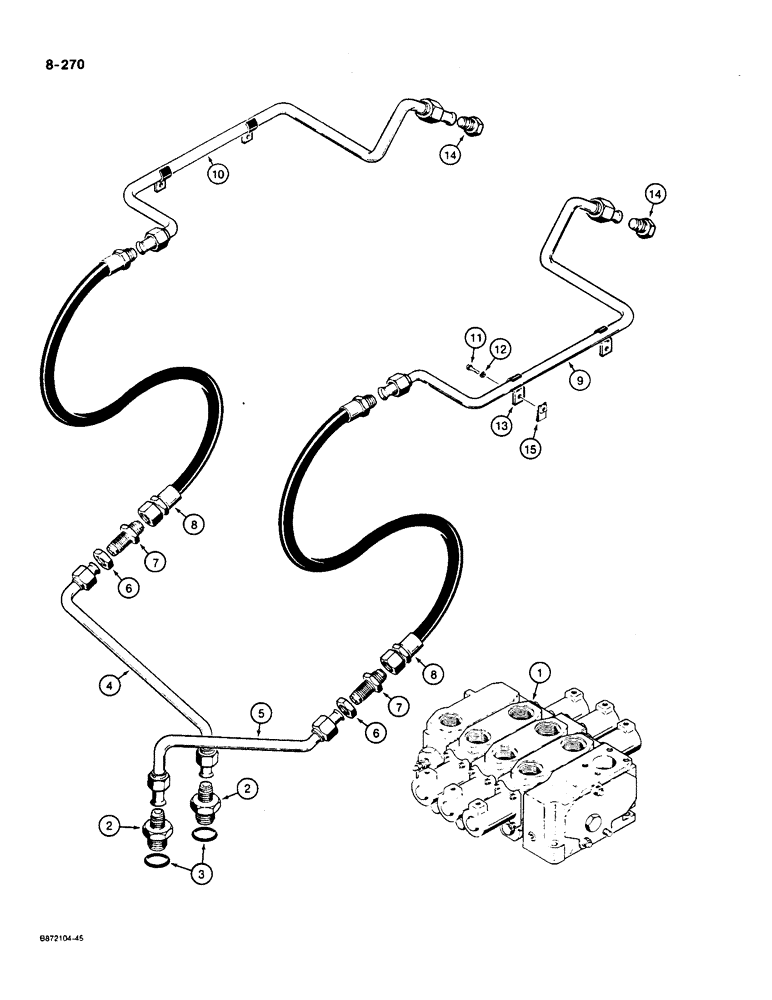

Запчасти Case W36 (8-270) - LOADER AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

L104152

VALVE

- hydraulic control, 3 spool, parts list Figures 8-287 - 8-293

1шт.

2

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, male, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

L73197

TUBE ASSY.,1" OD

TUBE - left-hand, from valve

1шт.

5

L79705

TUBE,1" OD

- right-hand, from valve

1шт.

6

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

2шт.

7

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR - straight, bulk head

2шт.

8

L73193

HOSE

- 44" long, clam bucket

2шт.

9

L73199

TUBE,1" OD

- right-hand, on loader arm

1шт.

10

L73201

TUBE ASSY.,1" OD

TUBE - left-hand, on loader arm

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

12

492-11038

LOCK WASHER,3/8"

6шт.

13

A12308

CLAMP

- tube

6шт.

14

218-779

PLUG,1 5/16"-12, 37 Degree

- hex head, 1-5/16" - 12 NF

2шт.

15

131-94

LOCK NUT,3/8"-16, GB

NUT - J-type, 3/8" - 16 NC

6шт.
